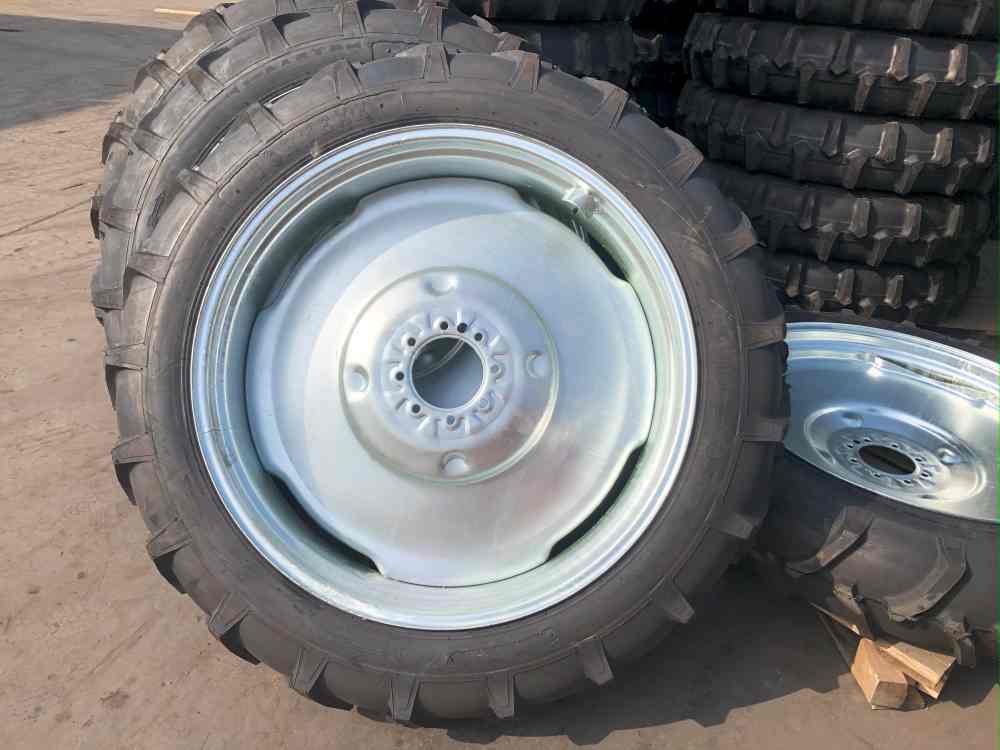

Irrigation Tire Wheel Assembly
Features
>Specially designed for mobile irrigation system equipment
>Valve guard
>Reverse mount available
>Irrigation special tires
Wheel Specification | Bolt Hole Dimension | Centre Bore | Thickness | Offset | Tire Size | ||||||
Number | Diameter | P.C.D | Rim | Disk | |||||||
(Inch) | (Inch) | (Inch) | mm | inch | mm | inch | mm | inch | |||
W8x24 | 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 50.8 | 2 | 11.2-24 280/85R24 (11.2R24) |
8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 0 | 0 | ||
W10×24 | 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 50.8 | 2 | 11.2-24 280/85R24 (11.2R24) |
8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 0 | 0 | ||
W12×24 | 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 70 | 2.75 | 13.6-24,14.9-24 380/85R24 (14.9R24) |
8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 0 | 0 | ||
8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 50.8 | 2 | ||
W15Lx24 | 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 0 | 0 | 16.9-24 |
W10×38 | 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 44 | 1.75 | 11.2-38 320/85R38 (12.4R38) |
8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 62 | 2.44 | ||
W10×38 | 9 | 0.65 | 9.5 | 7.93 | 4 | 0.157 | 6 | 0.236 | 44 | 1.75 | 11.2-38 320/85R38 (12.4R38) |
8.25X22.5 | 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 0 | 0 | 11-22.5 |
8.25X24.5 | 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 0 | 0 | 11-24.5 |
Item | Irrigation tire and wheel assembly | HS Code | 870870/401180 |
Pattern Code | --- | Brand | mainsail/ OEM |
Cord Material | Radial/Bias | Quality Warrantee | 2 years |
Tube Type | Tube Type/ Tubeless | Delivery | Within 7 Days |
Condition | New | Origin | Made in China |
Steel | Best China | Certificate | DOT |
Equipment | Imported From Japan and German | Manufactuer | TNR international |
