Race Tires

Race tires are the Formula 1 cars of the tire world. They are engineered for one primary purpose: speed. If you've ever wondered why race cars seem to stick to the track like glue, it's largely thanks to these specialized tires. In this article, we'll learn together knowledge about race tires.

Materials Matter

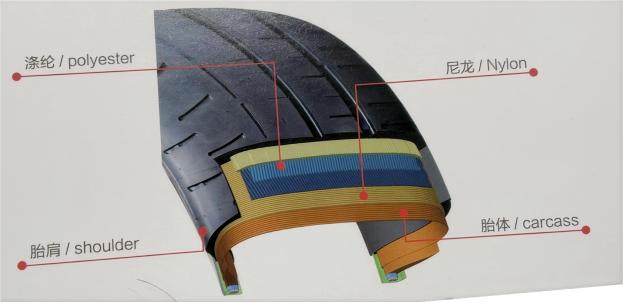

The trade-off between grip and durability is a central theme in the world of race tires. To achieve it, race tires have to be crafted from a distinct blend of rubber compounds compared to regular tires. The racing tires do not use the steel wire commonly used in ordinary tires. The tires used in the competition are entirely made of nylon and polyester fibers with a complex structure. They can withstand 4 to 5 g of acceleration speed and super during running. That’s why it also wears out much faster than standard tires.

Tread Pattern: Less is More

Unlike the intricate tread patterns on regular tires that help with water dispersion and grip on various surfaces, race tires have minimal or even no tread pattern at all. This might seem counter intuitive, but it's because race tracks are typically dry and smooth. The lack of tread increases the contact patch of the tire, enhancing grip and responsiveness. Now let's delve deeper into the various tire patterns you might encounter in racing. These patterns play a pivotal role in how a race car handles on the track. Here, we'll explore the key differences between directional, symmetric, and asymmetric race tire patterns.

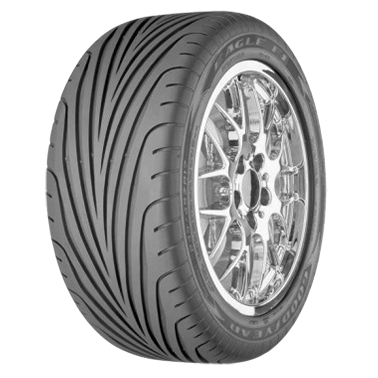

Directional Tire Patterns

Directional race tire patterns are designed with a clear tread pattern that resembles an arrow. The idea is to channel water away from the center of the tire to prevent hydroplaning in wet conditions. These tires are optimized for races where water is a significant factor, such as in some endurance racing events. One notable characteristic of directional tires is that they are specific to either the left or right side of the vehicle. This specialization allows for efficient water dispersion during high-speed cornering. In some cases, teams may even use different compounds or patterns on each side to fine-tune performance.
Directional Tire Patterns

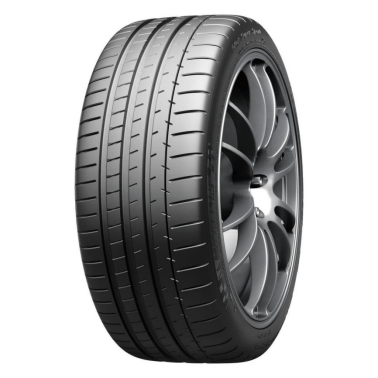

Symmetric Patterns

Symmetric race tire patterns have a uniform tread design across the entire tire surface. Unlike directional patterns, these tires can be mounted on either side of the vehicle without any concern for orientation. Symmetric patterns are versatile and are often used in racing series where track conditions are consistent and water isn't a significant factor. The symmetrical design provides excellent stability and predictability, making these tires a popular choice for sprint races where precise handling and control are essential. However, they may not perform as well as directional or asymmetric patterns in wet conditions.
Symmetric Patterns

Asymmetric Patterns

Asymmetric race tire patterns strike a balance between directional and symmetric designs. These tires have a distinct tread pattern on the inner and outer sections of the tire. The inner side typically features larger, deeper grooves for water dispersion, while the outer side has shallower grooves for dry grip. Asymmetric patterns offer the best of both worlds, combining wet-weather performance with dry-weather grip. This makes them a preferred choice in racing series where variable weather conditions are common, as they can adapt to the track surface effectively.
Asymmetric patterns

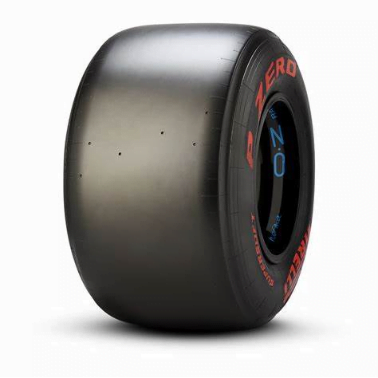

Slick Tires

In addition to these three patterns, it's worth mentioning slick tires. Slick tires have no tread patterns at all and are entirely smooth. They are designed exclusively for dry track conditions and provide the maximum possible contact area with the road. Slick tires offer unparalleled grip on a dry track but are virtually useless in wet conditions.
Slick Tires

Short life

Although racing tires and ordinary car tires have some overlap in technological development and manufacturing processes, they are essentially two completely different products. When designing ordinary car tires, durability is more considered. Usually a set of tires can have a service life of more than 40,000 to 60,000 kilometers. When racing tires are designed, super performance is a crucial factor. Therefore, the life of official racing tires will not exceed 200 kilometers at most. Some amateurs also have the more economical option of practice racing tires - their service life can be 400 kilometers.

Heat Management

Racing generates a lot of heat, and this applies to tires as well. To combat overheating, race tires often have unique features like heat-resistant compounds and special sidewall construction. Maintaining optimal tire temperature is essential for consistent performance on the track.

Camber and Alignment

Race cars have specific camber and alignment settings, and the tires are designed to work optimally with these settings. Camber refers to the angle at which the tire contacts the road. Race tires are engineered to perform best within these specific angles, further enhancing grip during turns.

Common sizes

Here are some common specifications for racing tires.

slick tire

180/550R13 190/580R15 280/660R18
240/570R13 245/620R17 300/660R18
200/580R15 245/645R18 300/680R18
240/610R17 265/645R18 285/645R18

Other pattern

195/50R15 225/45R17 235/45R17
235/40R18 245/40R18 255/35R18
265/35R18 285/35R18 235/35R19
245/35R19 265/30R19 285/35R19
It is worth mentioning that Slick tires and other race tires have different specification. How to read Slick tires’size Let's take the 180/550R13 as an example Gourp 1: 180  It refers to section width in mm Group 2: 550 It refers to overall diameter in mm Group 3: R It refers to radial construction Group 4: 13 It refers to diameter of the rim in inches How to read other pattern tires’size Let's take the 195/50R15 as an example Gourp 1: 195    It refers to section width in mm Group 2: 50     It refers to an aspect ratio which refers to the height of the sidewall or known as section height. Group 3: R      It refers to radial construction Group 4:  15   It refers to diameter of the rim in inches

Variable Compounds

Some racing series allow teams to use multiple tire compounds in a single race. These compounds vary in hardness and grip. Teams strategically choose which compound to use based on track conditions, weather, and race strategy. It adds an extra layer of complexity and decision-making to the race. There is a table related to different compounds as following shows,

Race Tire Brand

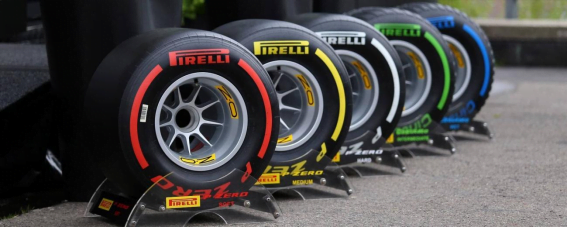

When it comes to racing tires, nine brands have to be mentioned - Dunlop, Pirelli, Goodyear, Michelin, Bridgestone, AVON, Continental, ENGLEBERT and Fire -stone). Only these 9 brands have ever carried F1 cars (the highest scale competition in the racing field) on the track. Among these nine brands, Goodyear achieved staged victory. But now, it's clear that the king of racing tires is Pirelli. This Italian tire manufacturer has a rich history, an impressive turnover, and some fascinating facts that make it a standout choice for many racing teams. Pirelli is known for pushing the boundaries of tire technology. They introduced colored sidewalls for different tire compounds in Formula 1, making it easier for viewers to identify which tires each car is using during a race. This small innovation had a significant impact on the sport's visual appeal.

Constant Development

Finally, race tire technology is in a constant state of evolution. Tire manufacturers work closely with racing teams to develop new compounds, constructions, and designs that push the boundaries of what's possible. This relentless pursuit of improvement is what keeps race tires at the cutting edge of performance. With passage of time, some Chinese tire manufacturers have also begun to make certain progress in the field of racing tire manufacturing. The tyres they produced also began to make their mark in international motorsport competitions. TNR, as a professional tire supplier, aims to provide more affordable racing tires that meet your needs.
