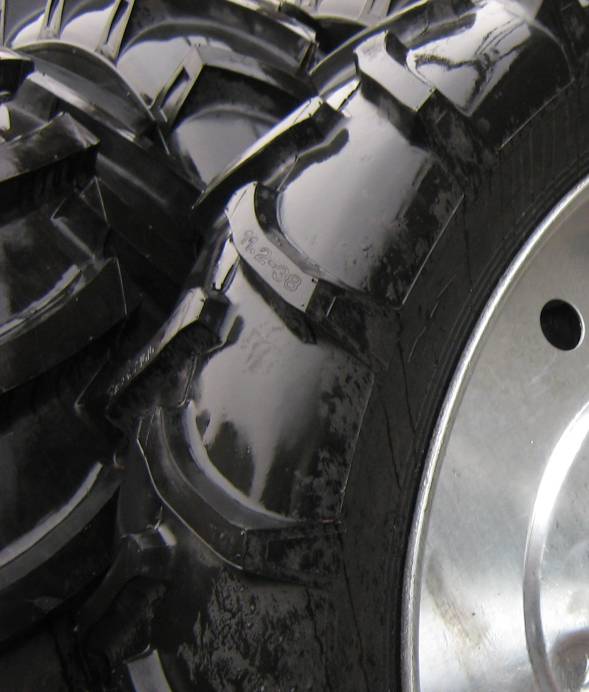

irrigation tire r1
irrigation tire picture

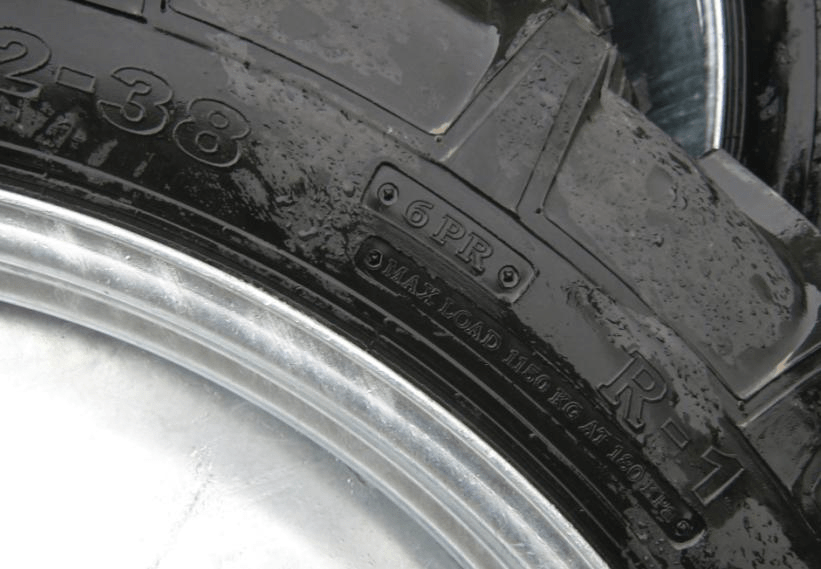

irrigation tire Load and Pressure Markings
irrigation tire r1
irrigation tire picture
irrigation tire Load and Pressure Markings

IRRIGATION TIRE R1 11.2-24

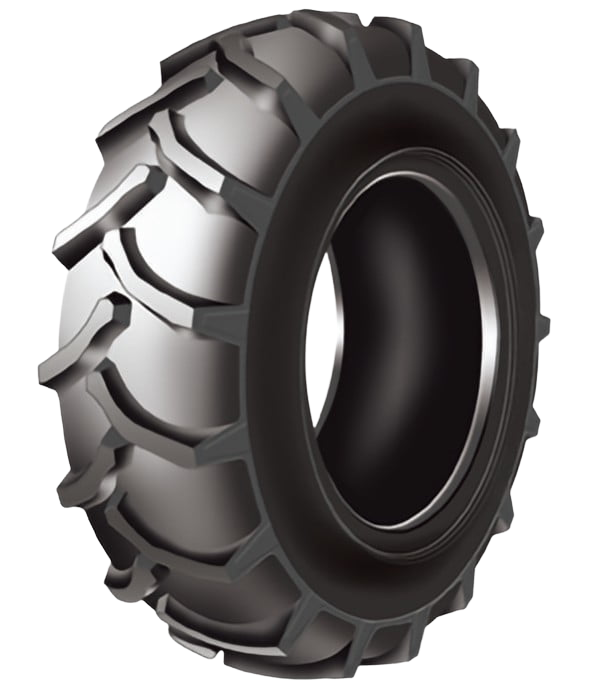

IRRIGATION TIRE R1

＊Irrigation Tire special service.
＊Application to mobile irrigation system equipment.
＊Good traction and self-cleaning performance.

Specifications:

IRRIGATION TIRE R1:

TIRE SIZE P.R. TYPE Bar Height Standard RIM Overall Width Section Width Max Load  Pressure
TT TL mm inch mm inch mm inch Kg  Kpa
11.2-24 6 TT — 25 0.98 W10 285 11.22 1105 43.5 1045 180
8 1225 240
11.2-38 6 TT — 25 0.98 W10 285 11.22 1448 57.01 950 120
8 1150 180
13.6-24 6 TT — 25 0.98 W12 345 13.58 1210 47.64 1340 160
8 1545 200
14.9-24 6 TT TL 26 1.02 W12 378 14.88 1265 49.8 1510 140
8 1760 180

Description :

Item Irrigation Tire HS Code 401180
Pattern Code Irrigation R1 Brand mainsail/ OEM
Cord Material Nylon Quality Warrantee 2 years
Tube Type Tube Type Delivery Within 7 Days
Condition New Origin Made in China
Natural Rubber From Malaysia, Thailand, Indonesia etc Certificate  DOT
Equipment Imported From Japan and German Manufactuer TNR international

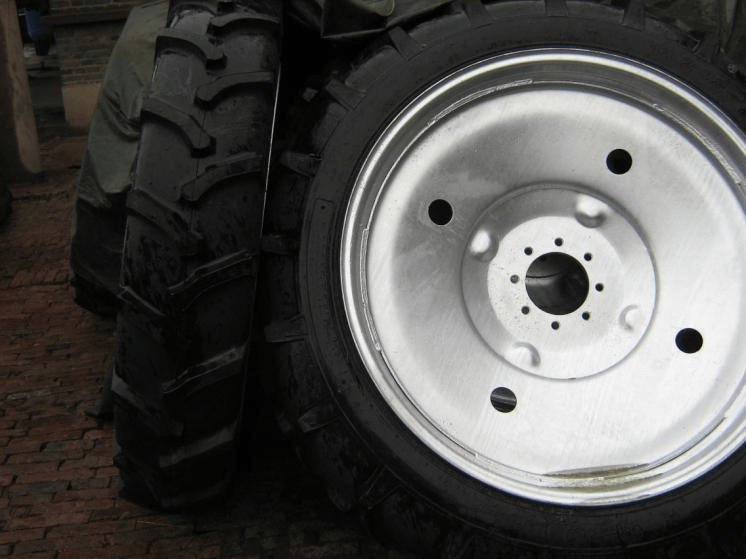

irrigation tire picture

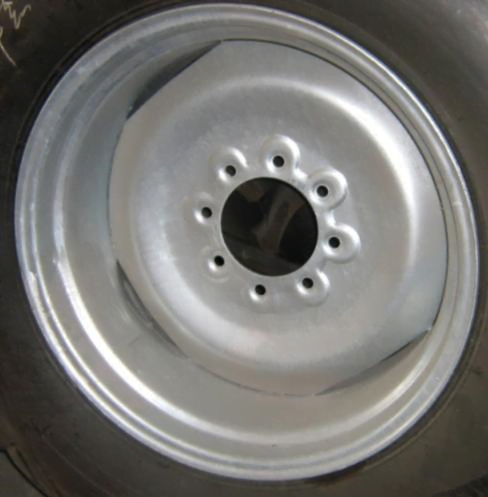

Irrigation wheel rim is available too.

Wheel Specification Bolt Hole Dimension Centre Bore
(Inch)		 Thickness Offset
(mm)		 Tire Size
Number Diameter
(mm)		 P.C.D
(Inch)		 Rim Disk
W10×24 8 16.7 8 6 4 6 50.8 11.2-24
8 16.7 8 6 4 6 0
W10×38 8 16.7 8 6 4 6 44 11.2-38
8 16.7 8 6 4 6 62
W12×24 8 16.7 8 6 4 6 70 13.6-24
14.9-24
8 16.7 8 6 4 6 0
8 16.7 8 6 4 6 50.8
