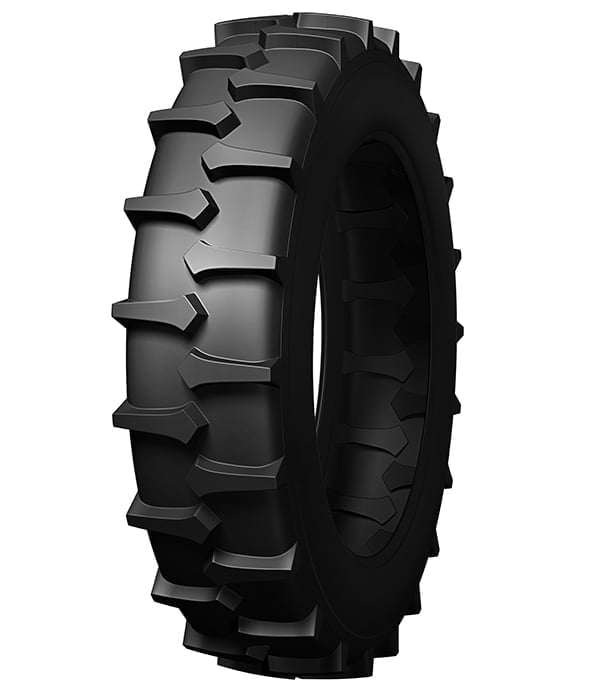

Irrigation ND 11.2-38

Features

Irrigation ND >Center Pivot Irrigation Tire for irrigation equipment >Good traction and efficient self-cleaning capacity

Specifications

Irrigation ND Tire Specification:
Tire Size Ply Rating Type Tread Depth Standard Rim Available Rim Inflated Dimensions Load Capacity
TT TL mm inch Overall Width (mm) Overall Width (inch) Overall Diameter (mm) Overall Diameter (inch) Max Load kg Inflation Kpa
11.2-38 10 TT 30 1.18 W16L W15L 285 11.22 1448 57 2000 170

Description

Item
Irrigation Tire
HS Code
401180
Pattern Code
Irrigation R1
Brand
mainsail/ OEM
Cord Material
Nylon
Quality Warrantee
2 years
Tube Type
Tube Type
Delivery
Within 7 Days
Condition
New
Origin
Made in China
Natural Rubber
From Malaysia, Thailand, Indonesia etc
Certificate
 DOT
Equipment
Imported From Japan and German
Manufactuer
TNR international

 Wheel rims for Center Pivot Irrigation Tire Available

24×10 Galvanized 8 Bolt Irrigation Wheel (8-8-6)
24×12 Galvanized 8 Bolt Irrigation Wheel (8-8-6)
38×10 Galvanized 8 Bolt Irrigation Wheel (8-8-6)

Wheel Specification Bolt Hole Dimension Centre Bore
(Inch)
Thickness Offset
(mm)
Tire Size
Number Diameter
(mm)
P.C.D
(Inch)
Rim Disk
W10×24 8 16.7 8 6 4 6 50.8 11.2-24
8 16.7 8 6 4 6 0
W10×38 8 16.7 8 6 4 6 44 11.2-38
8 16.7 8 6 4 6 62
W12×24 8 16.7 8 6 4 6 70 13.6-24
14.9-24
8 16.7 8 6 4 6 0
8 16.7 8 6 4 6 50.8
