Tyre Size | Ply Rating | Tyre Type | Tread Depth | Section Width | Overall Diameter | Max. Speed | Infl. Pressure | Max. Load | Standard Rim | ||||||
(mm) | (32nds) | mm | inch | mm | inch | km/h | mph | kPa | psi | kg | lbs | ||||
8.25-20 | 14 | TT | 19 | 23.9 | 230 | 9.1 | 962 | 37.9 | 10 | 6 | 680 | 98.7 | 1901 | 4182 | 6.5 |
9.00-20 | 14 | TT | 20 | 25.2 | 259 | 10.2 | 1018 | 40.1 | 10 | 6 | 700 | 101.6 | 2500 | 5500 | 7 |
9.00-20 | 16 | TT | 20 | 25.2 | 259 | 10.2 | 1018 | 40.1 | 10 | 6 | 810 | 117.6 | 2900 | 6380 | 7 |
10.00-20 | 16 | TT | 21 | 26.5 | 275 | 10.8 | 1050 | 41.3 | 10 | 6 | 750 | 108.9 | 3150 | 6930 | 7.5 |
11.00-20 | 12 | TT | 22 | 27.7 | 290 | 11.4 | 1082 | 42.6 | 10 | 6 | 620 | 90 | 2574 | 5663 | 8 |
11.00-20 | 16 | TT | 22 | 27.7 | 290 | 11.4 | 1082 | 42.6 | 10 | 6 | 725 | 105.2 | 3350 | 7370 | 8 |

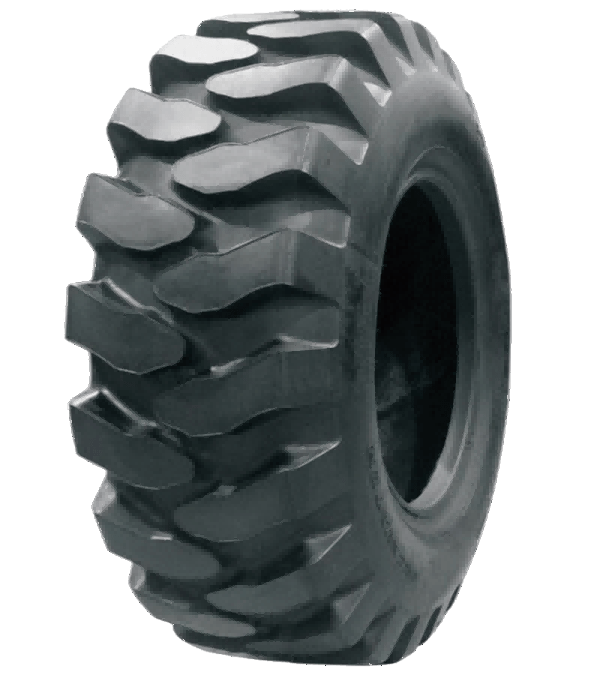

X’cavator Features:
• Self-cleaning open tread with mud breakers provides improved traction
• Reinforced sidewall for excellent stability
* Cut resistance
* Excellent grip and increased traction
OTR is the short name for Off-the-Road.
OTR tire range usually refers to tires used on rough terrain low-speed applications. In a broad sense, any tire with a low speed comparing with high-speed passenger car tire or a truck tire, could be called an OTR tire. It could be a golf course ATV tire, or an agricultural tractor tire.
In a narrow sense, an OTR tire often refers to construction or mining tire, most often a loader tire or a dumper tire.
