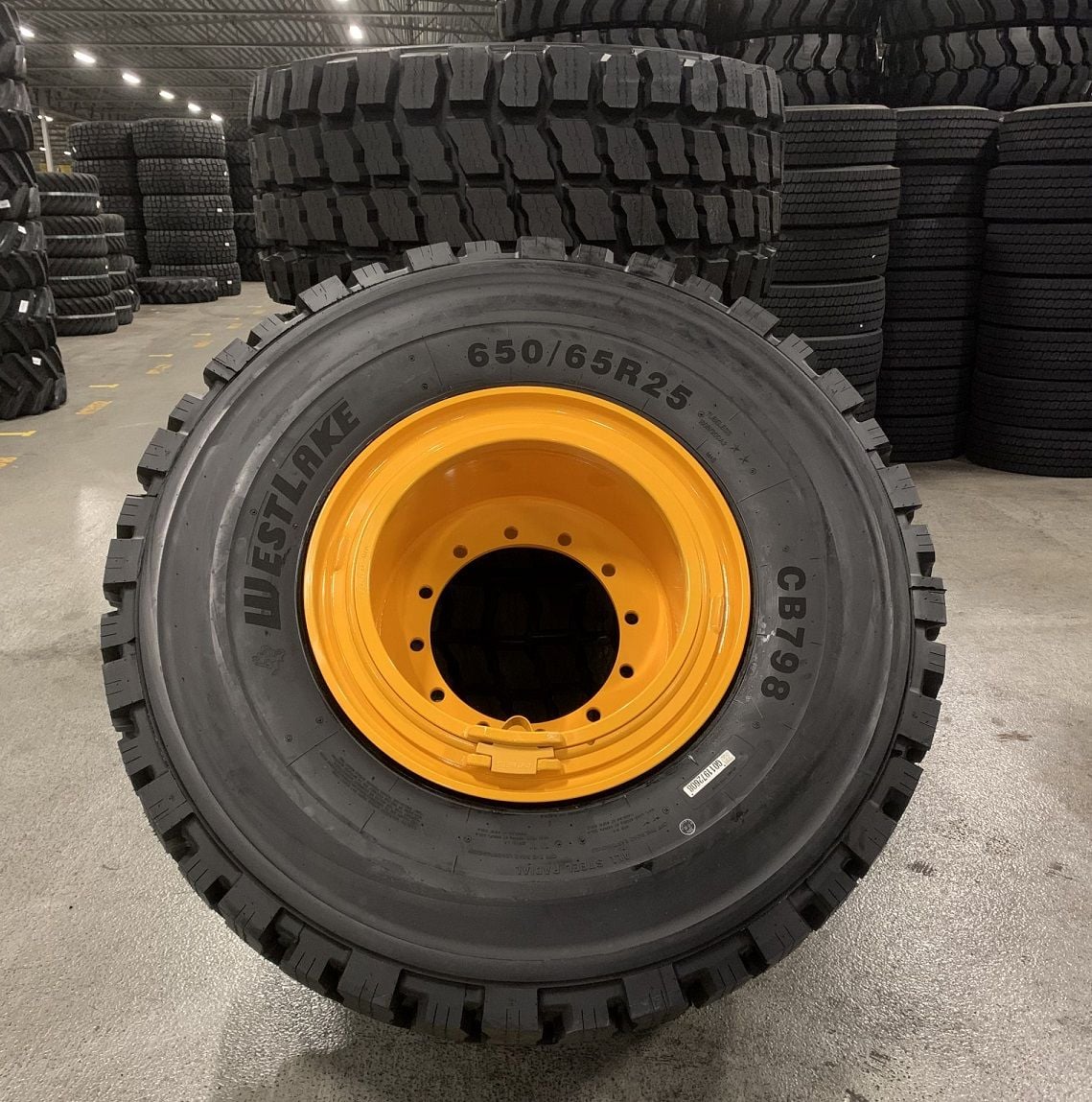

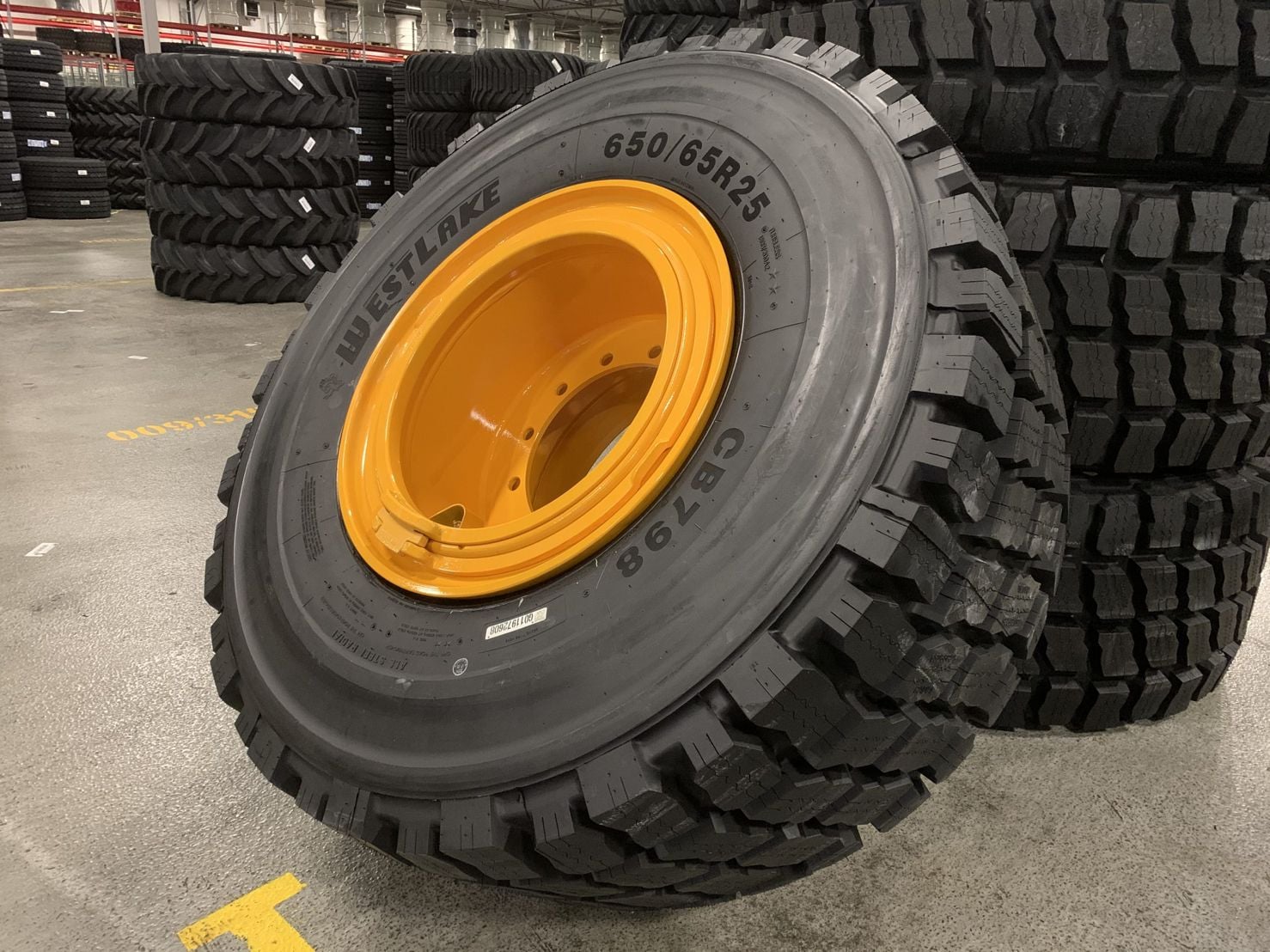

Goodride/Westlake/Chaoyang CB798 Winter Earthmover/Loader Tire

Features

Unique winter compound ensure excellent traction in mud and on snow and ice
New designed sidewall with a protective band on the shoulder/sidewall interface provides good protection against accidental damage
Open tread pattern in shoulder ensure good self cleaning in the snow and mud

Specifications

Tire Size	Type	LI/SS	Star Rating	TRA Code or Application	Recommended Rim/Flange Height	Approximate Inflated Dimensions						OTD		Cold Inflation Pressure		Max. Load Capacity		Application Max.Speed
					Recommended Rim/Flange Height	OD		SW		SLR		OTD		Cold Inflation Pressure		Max. Load Capacity		Application Max.Speed
					inch	mm	inch	mm	inch	mm	inch	mm	32ND	KPa	Psi	Kg	Lbs	km/h
340/80R18	TL	136B	-	-	11.00	1001	38.3	343	14.1	460	16.5	20	25	375	54	2240	4940	50
365/70R18	TL	135B	-	-	11.00	969	38.3	360	14.1	446	16.5	20	25	375	54	2180	4800	50
405/70R18	TL	141B	-	-	13.00	1025	40.5	407	15.7	474	17.5	20	25	375	54	2575	5675	50
335/80R20	TL	136B	-	-	11.00	1044	38.3	340	14.1	482	16.5	20	25	375	54	2240	4940	50
405/70R20	TL	143B	-	-	13.00	1076	42.4	407	15.7	495	18.7	25	31	375	54	2725	6005	50
405/70R24	TL	146B	-	-	13.00	1178	46.4	407	16.0	503	19.8	24	30	375	54	3000	6610	50
455/70R24	TL	154B	-	-	14.00	1248	49.1	452	17.8	576	22.7	24	30	375	54	3750	8250	50
460/70R24	TL	159B	-	-	14.00	1248	49.1	455	17.9	576	22.7	24	30	400	58	4375	9650	50
500/70R24	TL	164B	-	-	16.00	1310	51.6	503	19.8	603	23.7	24	30	400	58	5000	11000	50
17.5R25	TL	167B	★★	E-3	14.00/1.5	1350	53.1	445	17.5	618	24.3	28	35	525	76	5450	12000	50
20.5R25	TL	177B	★★	E-3	17.00/2.0	1490	58.7	520	20.5	677	26.7	31	39	525	76	7300	16100	50
23.5R25	TL	185B	★★	E-3	19.50/2.5	1615	63.6	595	23.4	730	28.7	34	43	525	76	9250	20400	50
600/65R25	TL	178B	★★	E-3	19.50/2.5	1415	55.7	605	23.8	645	25.4	35	44	425	62	7500	16500	50
650/65R25	TL	180B	★★	E-3	19.50/2.5	1480	58.3	640	25.2	672	26.5	38	48	425	62	8000	17600	50
750/65R25	TL	190B	★★	E-3	24.00/3.0	1610	63.4	754	29.7	727.0	28.6	43	54	475	69	10600	23400	50
