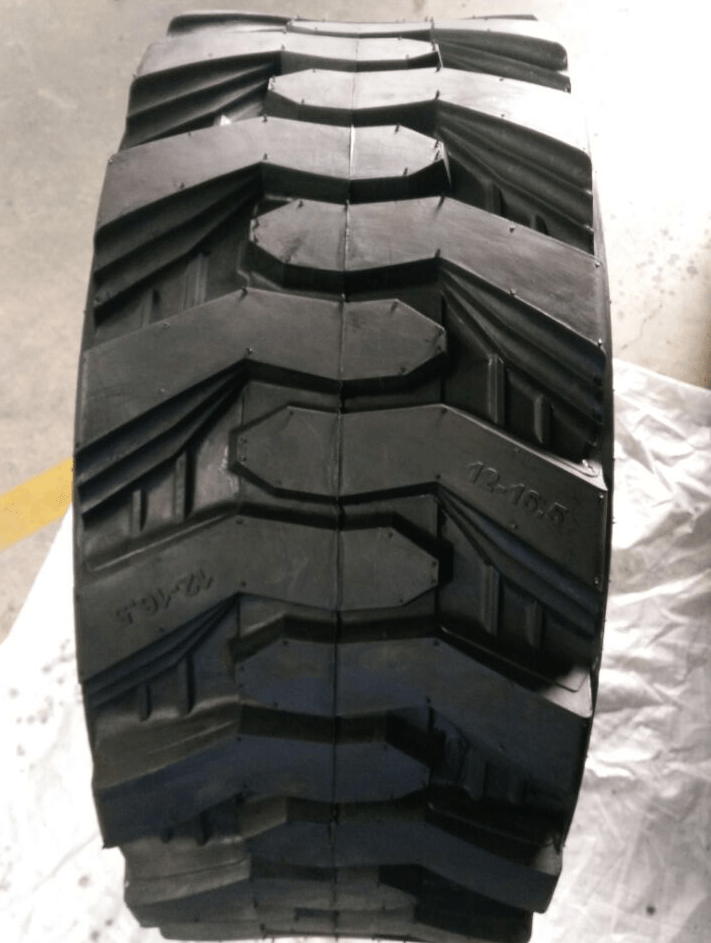

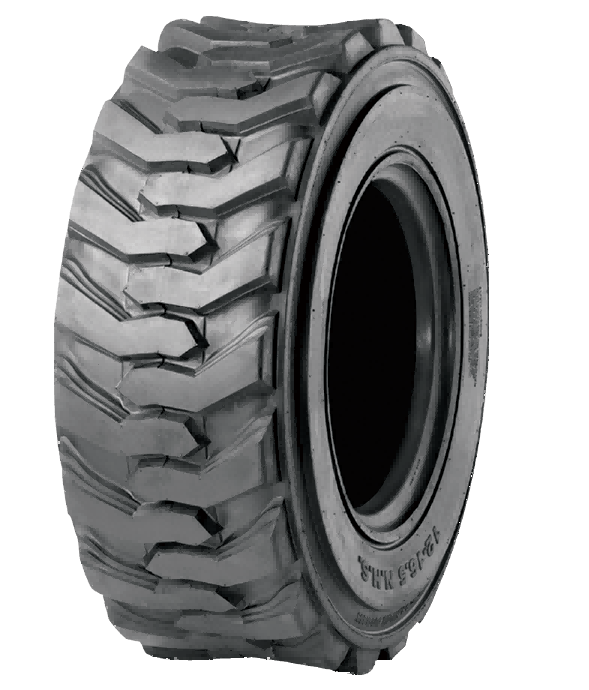

R4 PREMIUM
81916369F2C55B6525CBCFAD469BD4D0
R4 PREMIUM

Premium R4 5.70-12 10-16.5

Premium R4 Features:
* Self-cleaning, open tread design for reduced maintenance time
* Extra large, tapered lugs for traction in slippery conditions and maximum wear life
* Heavy rim guard reduces potential for damage to tire bead and wheel flange

Specifications:

Premium R4 specification:

Tyre Size Ply Rating Tyre Type Tread Depth Section Width Overall Diameter Max. Speed Infl. Pressure Max. Load Standard Rim
(mm) (32nds) mm inch mm inch km/h mph kPa psi kg lbs
5.70-12 6 TL 16.0 20.2 145 5.7 570 22.4 10 5 520 75 760 1675 4.50-I-70
10-16.5 10 TL 17.0 21.4 264 10.4 798 31.4 10 5 520 55 2135 4710 8.25
10.5-20 10 TL 26.0 32.7 269 10.6 955 37.6 40 25 375 55 2070 4565 9×20
10.5-20 12 TL 26.0 32.7 269 10.6 955 37.6 40 25 425 60 2240 4940 9×20
12.5-20 12 TL 23.0 28.9 325 12.8 1039 40.9 40 25 350 50 2300 5070 11×20
14-17.5 12 TL 25.0 31.5 349 13.7 921 36.3 10 5 450 65 3430 7560 10.50
14-17.5 14 TL 25.0 31.5 349 13.7 921 36.3 10 5 550 80 3875 8545 10.50
15-19.5 16 TL 28.0 35.3 389 15.3 1019 40.1 10 5 550 80 4935 10880 11.75
23×8.50-12 8 TL 15.0 18.9 213 8.4 574 22.6 10 5 450 65 985 2170 7.0-I-70
27×8.50-15 10 TL 15.0 18.9 213 8.4 678 26.7 10 5 485 70 1030 2270 7JA
10.5/80-18 14 TL 25.4 32.0 274 10.8 881 34.7 30 20 480 70 1530 3375 W9
12.5/80-18 14 TL 25.4 32.0 308 12.1 962 37.9 30 20 490 71 2180 4805 W9
27X10.50-15 8 TL 23.0 28.9 221 8.7 686 27.0 10 5 413 60 3100 6838 8.50
36X15-15 16 TT 31.0 39.0 375 14.8 908 35.8 10 5 758 110 6610 14580 10.50

Description :

Premium R4 5.70-12 10-16.5
