TNR > R2-2 9.5-20 12.4-24
  • R2-2 9.5-20 12.4-24
  • R2-2 9.5-20 12.4-24
  • R2-2 9.5-20 12.4-24

R2-2 9.5-20 12.4-24

Features

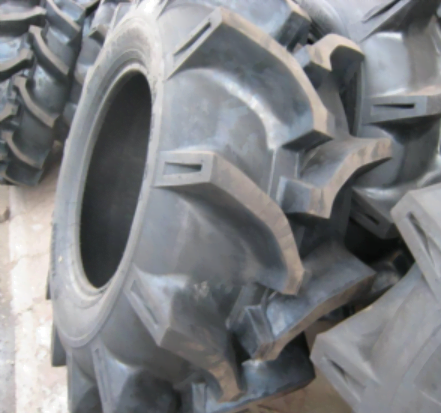

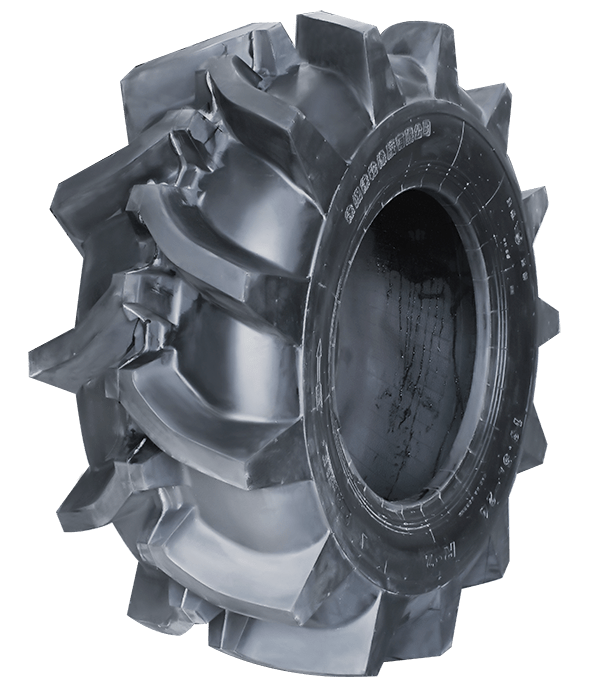

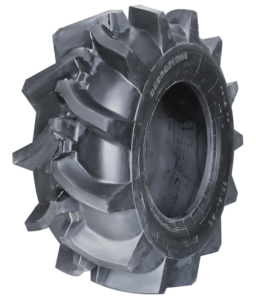

R2-2 9.5-20 12.4-24 The tire has good wear resistance and unique tread design, which greatly improves the service life

Specifications

R2-2 Specification:
Tire Size Ply Rating Type Tread Depth Standard Rim Available Rim Inflated Dimensions Load Capacity
TT TL mm inch Overall Width (mm) Overall Width (inch) Overall Diameter (mm) Overall Diameter (inch) Max Load kg Inflation Kpa
9.5-20 8 TT 60.0 2.36 W8 —— 240 9.45 976 38.43 955 280
12.4-24 8 TT 67.0 2.64 W11 —— 315 12.40 1192 46.93 1415 230
13.6-38 8 TT 70.0 2.76 W12 —— 345 13.58 1600 62.99 1910 210
18.4-34 10 TT 78.0 3.07 W16L —— 467 18.39 1702 67.01 2990 180
19.5L-24 8 TT 92.0 3.62 W17 —— 495 19.49 1345 52.95 1900 140
19.5L-24 10 TT 92.0 3.62 W17 —— 495 19.49 1345 52.95 2120 170
19.5L-24 12 TT 92.0 3.62 W17 —— 495 19.49 1345 52.95 2360 210
23.1-26 8 TT 89.0 3.5 DW20 —— 587 23.11 1660 65.35 2850 110
23.1-26 10 TT 89.0 3.5 DW20 —— 587 23.11 1660 65.35 3245 140
23.1-26 12 TT 89.0 3.5 DW20 —— 587 23.11 1660 65.35 3610 170
23.1-26 14 TT 89.0 3.5 DW20 —— 587 23.11 1660 65.35 3970 200
28L-26 10 TT 93.0 3.7 DW25 —— 715 28.15 1615 63.58 3460 120
28L-26 12 TT 93.0 3.7 DW25 —— 715 28.15 1615 63.58 3785 140
28L-26 14 TT 93.0 3.7 DW25 —— 715 28.15 1615 63.58 4245 170

Description

R2-2 9.5-20 12.4-24
