| Size | Star | TRA Code | Standard Rim | Dimension/mm | Load/kg | Pressure/kpa | Tread Depth（mm) | TKPH | Type | ||||
| OD | SW | 10km/h | 50km/h | 10km/h | 50km/h | TT | TL | ||||||
| 14.00R25 | ⋆⋆⋆ | E-4 | 10.00/2.0 | 1380 | 375 | 10000 | 5800 | 950 | 700 | 37 | 105 | ✓ | |
| 16.00R25 | ⋆⋆⋆ | E-4 | 11.25/2.0 | 1530 | 430 | 13200 | 8000 | 900 | 800 | 43 | 114 | ✓ | ✓ |
We receive the tires and wheels directly from the manufacturers and assemble them through several high quality and automated processes. We specialize in high precision tire-wheel assembly, logistics.
There are many advantages of purchasing complete tire and wheel assemblies from us.
The assemblies are designed by experienced engineers, put together by a work force that manufactures tens of thousands per year, are subject to stringent quality control, and come with a warranty. Complete wheel and tire assemblies arrive at the customer inflated, with all mobility devices and accessories installed, ready to bolt onto the hub and drive away.
Save The Assembly Cost For Our Buyers
It's much cheaper to assemble them in China with our expertise.
Save The Freight Cost For Our Buyers
We ship more together than seperately.
Quality Warranty
All assemblies come with warranty.
Supply of Every Component
They come with accessories and ready to bolt on hubs.
Proinde die funestis interrogationibus praestituto imaginarius iudex equitum resedit magister adhibitis aliis iam quae essent agenda praedoctis, et adsistebant hinc inde notarii, quid quaesitum esset, quidve responsum, cursim ad Caesarem perferentes.
The fitter will get the new tires and wheels ready.
The diameter of the new tire should match the diameter of the rim, and it should be approved for use with the vehicle. Rims should be the correct size, in perfect condition, and free of rust. They must not be damaged, deformed, or worn.
Moving on to the tire beads, the fitter will coat the beads and the rim with fitting lubricant as recommended by the tire manufacturer. Then he will use the tire spreader to mount the tire onto the wheel.
Next comes the inflation of the tire. For the duration of this stage, the wheel must remain firmly secured on a mounting machine. Inflating an unsecured tire is dangerous. The fitter will be aware of this; it’s also why he keeps a reasonable distance from the tire during inflation. Typically, he will use a sufficiently long, secured extension hose with an integrated pressure gauge, and he won’t be bending over the tire as it fills up with air.
Once the beads of the tire are seated correctly on the shoulder of the rim, the fitter will increase the tire pressure to achieve a firm grip on the flanges of the rim. This fitting pressure shouldn’t exceed more than 150% of the maximum pressure recommended by the manufacturer. Next, the fitter will adjust the pressure to the operating pressure as specified by the vehicle manufacturer.
Process of automatic assembly line consists of the following process steps:
Measuring Station
A
Wheel Soaping B
Tire and Wheel
E
Tire and Wheel Fitting (Mounting)
D
Tire Soaping
C
Inflation Station
F
Bead Optimizing
G
Every year, we fit hundreds and thousands of tires to wheels.

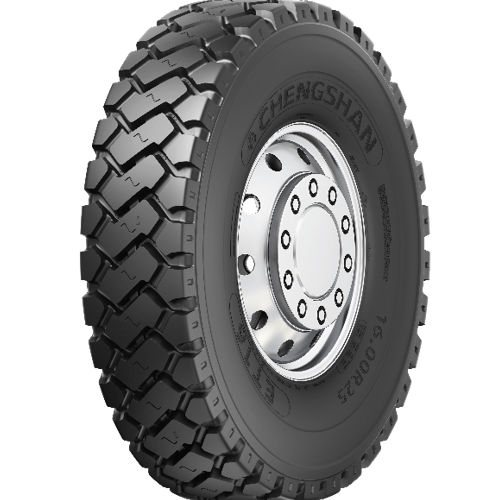

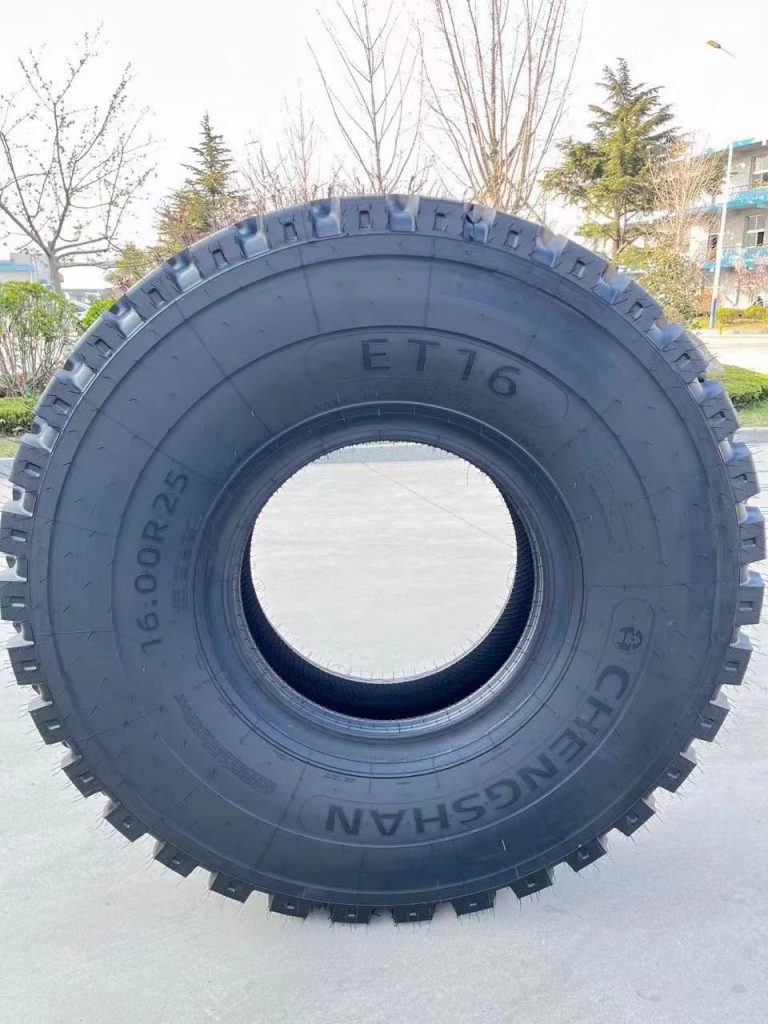

| Item | New Tire | HS Code | 401180 |
| Pattern Code | ET16 | Brand | CHENGSHAN |
| Cord Material | Steel Wire | Quality Warrantee | 2 year |
| Tube Type | Tube Type | Delivery | Within 7 Days |
| Condition | New | Origin | Made in China |
| Natural Rubber | From Malaysia, Thailand, Indonesia etc | Certificate | DOT |
| Equipment | Imported From Japan and German | Manufactuer | PrinxChengshan(Shanghai)investment Co., Ltd. |
| Machine Brand | Model | PART # |
| TONLY | TL87 TL875 TL98 TL85 TLD | TNR14.00R25 |
| Tai’an Aerospace | TAS3750 TAS3731 | TNR14.00R25 |
| SANY | SKT90MT | TNR14.00R25 |
| LGMG | MT60 MT86 MT86H | TNR14.00R25 |
| TONGLI | 70 90 | TNR14.00R25 |
| YTO | LK3550K | TNR14.00R25 |
| PENGXIANG | PX65MT PX65AT PX75MT PX75YQF | TNR14.00R25 |
| SINOTRUCK | ZZ5707S3842AJ | TNR14.00R25 |
