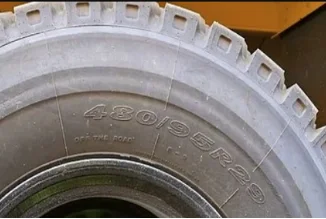

480/95R29(16.00R29)
⨠Asia
⨠Africa
Wide–body dump truck, it is between large mining dump truck and ordinary dump truck, neither like large mining dump truck which often cost millions, nor like ordinary dump truck in the mining area operation whose stability is relatively poorer.
Wide-body dump trucks are more like the “strengthened” type of ordinary dump trucks in structure, and because of their characteristics of large one-time loading, high transportation efficiency and good profitability, they are welcomed by large mining areas and gradually recognized and approved by users.

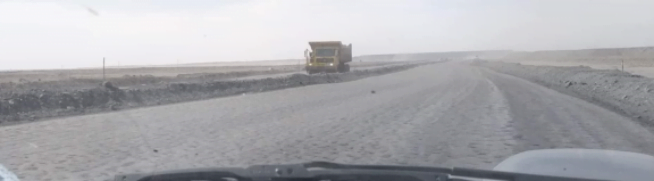

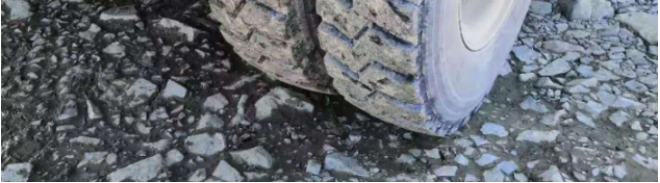

Generally, the road conditions in mining areas are relatively bad, especially in rainy and snowy weather, dust will make the road slippery and muddy, and ordinary dump tires are difficult to drive on ramps. Therefore, wide-body dump truck tires are required to have wider driving surface, and enjoy strong grip performance, good cut-resistance and penetrate-resistance performance, stronger load capacity.
Machine Brand | Model | Ref. |
TONLY | TL88、TL87、TL875、TL98、TL85、TL84、TLD65/TLD90 | http://www.sntonly.com/products/feigonglukuantizixieche.htm |
Tai'an Aerospace | TAS3750 TAS3731 | http://www.tasv.cn/channels/43.html |
Tongli | 矿威70 矿威790 | https://www.sqtl.com.cn/ |
YTO | LK3550K | http://www.ytogroup.com/cpzx/tzcl/kyc/201703/t20170316_140147.html |
Pengxiang | PX65MT PX65AT PX75MT PX75YQF | http://www.sdpxqc.com/ |
SINOTRUK | ZZ5707S3842AJ | http://cnhtc.com.cn/View/productshow.aspx?id=657 |
LGMG | MT60 MT86 | http://en.lgmg.com.cn/product/638.htm |
ZOOMLION | ZT105,ZT118 | https://en.zoomlionmining.com/dump-trucks/15.html |
XCMG | XGA5904D3T | https://www.xcmg.com/en-ap/product/product-detail-119250.htm |
SANY | SKT90MT | https://www.sanyglobal.com/product/701.html |
Cut Resistance
Heat Resistance
E3 Normally for coal mine, long haul, paved road, higher speed. Due to the characteristics of long-distance transportation and good road conditions, Heat Resistance compound are commonly used.
E4 Normally for gold or iron mine sites, short haul, bad road condition, with lower speed. Cut Resistance in winter is often more popular. Heat Resistance is for summer and long distance transportation.
Item | Brand | Size | Pattern | TRA | Tread Depth |

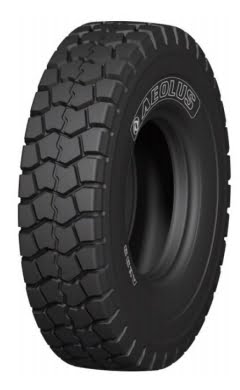

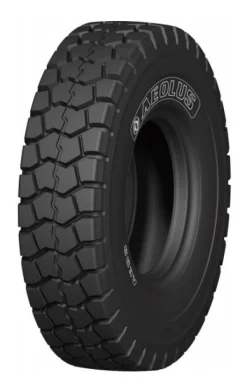

1 | AEOLUS | 14.00R25 | AE33/RT | E3 | 26mm |

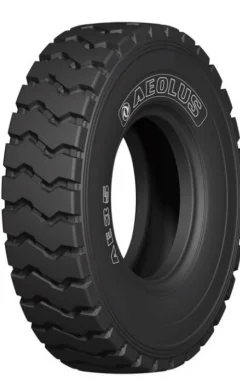

2 | 14.00R25 | AE35 | E3 | 25mm | |

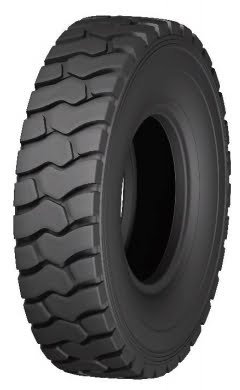

3 | 14.00R25 | AE310 | E3 | 26mm | |

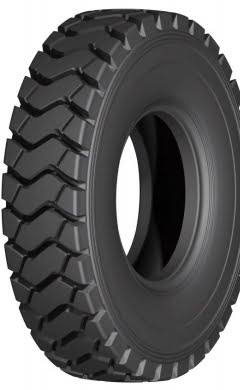

4 | 14.00R25 | AE401 | E4 | 36mm | |
5 | 16.00R25 | AE33 | E3 | 33mm | |
6 | 16.00R25 | AE35 | E3 | 36mm | |
7 | 16.00R25 | AE401 | E4 | 45mm | |
8 | 16.00R25 | AE313 | E3 | 27mm | |
9 | HILO | 14.00R25 | LOFN | E3 | 28mm |
10 | 14.00R25 | LOFN16 | E3 | 28mm | |
11 | 14.00R25 | AN609 | E3 | 28mm | |
12 | 14.00R25 | LGXN2 | E4 | 34mm | |
13 | 14.00R25 | LOFN2 | E4 | 34mm | |
14 | 14.00R25 | LOFN26 | E4 | 40mm | |
15 | 14.00R25 | AN6092 | E4 | 40mm | |
16 | 16.00R25 | BGZN | E2 | 28mm | |
17 | 16.00R25 | BYHN | E3 | 28mm | |
18 | 16.00R25 | B02NT | E3 | 34mm | |
19 | 16.00R25 | BGFN | E3 | 34mm | |
20 | 16.00R25 | B02S | E4 | 44mm | |
21 | 16.00R25 | BDTS | E4 | 46mm | |
22 | CHENGSHAN | 14.00R25 | ET01 | E3 | 27mm |
23 | 14.00R25 | ET03 | E3 | 26mm | |
24 | 14.00R25 | ET16 | E4 | 37mm | |
25 | 16.00R25 | ET02 | E3 | 33mm | |
26 | 16.00R25 | ET16 | E4 | 43mm | |
27 | Triangle | 14.00R25 | TB516S | E4 | 36mm |
28 | 14.00R25 | TL569 | E3 | 26mm | |
29 | 14.00R25 | TB526 | E3 | 26mm | |
30 | 16.00R25 | TB516S | E4 | 54.2 | |
31 | 16.00R25 | TL558S | E4 | 64.3 | |
32 | Advance | 14.00R25 | GLR12 | E3 | 26mm |
33 | 14.00R25 | GLR09 | E4 | 38mm | |
34 | 16.00R25 | GLR09 | E4 | 43mm | |
35 | MAXAM | 14.00R25 | MS401 | E4 | 37mm |
36 | TIANLI | 14.00R25 | TUE303 | E3 | 27mm |
37 | 14.00R25 | TUE303 II | E3 | 27mm | |
38 | 14.00R25 | TUE333 | E3 | 27mm | |
39 | 14.00R25 | TUE401 | E4 | 38mm | |
40 | 14.00R25 | TUE401 II | E4 | 38mm | |
41 | 16.00R25 | TUE303 | E3 | 32mm | |
42 | 16.00R25 | TUE303S | E3 | 34mm | |
43 | 16.00R25 | TUE303 II | E3 | 34mm | |
44 | 16.00R25 | TUE333 | E3 | 34mm | |
45 | 16.00R25 | TUE401 | E4 | 38mm | |
46 | 16.00R25 | TUE401 II | E4 | 44mm | |
47 | 16.00R25 | TUE666 | E3 | 29mm | |
48 | 16.00R25 | TUE555 | E4 | 46mm | |
49 | BOTO | 14.00R25 | GCB5 | E3 | 30mm |
50 | 14.00R25 | E4 | 36mm | ||
51 | 14.00R25 | E919 | E3 | 30mm | |
52 | 14.00R25 | E929 | E3 | 28mm | |
53 | 14.00R25 | GCB9 | E4 | 36mm | |
54 | 14.00R25 | GCD1 | E4 | 40mm | |
55 | 16.00R25 | GCB5 | E4 | 45mm | |
56 | LINGLONG | 14.00R25 | LDO993+ | E3 | 27mm |
57 | 14.00R25 | DM669 | E3 | 27mm | |
58 | 14.00R25 | DM668 | E3 | 27mm | |
59 | 14.00R25 | DM668+ | E4 | 37mm | |
60 | 16.00R25 | LDO993+ | E3 | 31mm | |
61 | 16.00R25 | DM668+ | E4 | 42mm | |
62 | Zhongce | 14.00R25 | CB765 | E3 | 27mm |
63 | 14.00R25 | CB793 | E3 | 31mm | |
64 | 14.00R25 | CB793A | E3 | 27mm | |
65 | 14.00R25 | CB393 | E3 | 27mm | |
66 | 14.00R25 | CB771 | E4 | 38mm | |
67 | 14.00R25 | CB771A | E4 | 38mm | |
68 | 14.00R25 | CB395 | E3 | 27mm | |
69 | 14.00R25 | CB397 | E3 | 27mm | |
70 | 16.00R25 | CB208 | E2 | 29mm | |
71 | 16.00R25 | CB395 | E3 | 34mm | |
72 | 16.00R25 | CB397 | E3 | 34mm | |
73 | 16.00R25 | CB771 | E4 | 44mm |

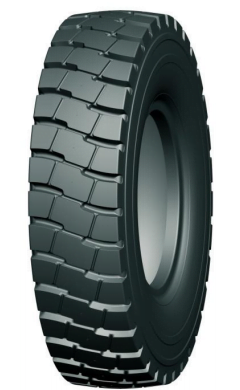

LOFN/LOFN2

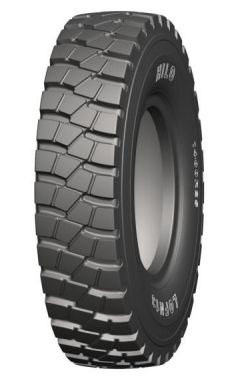

LOFN16/LOFN26

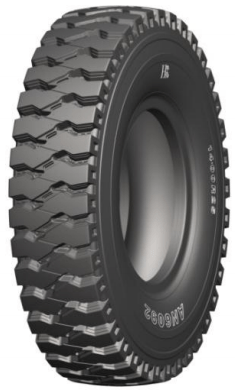

AN609/AN6092

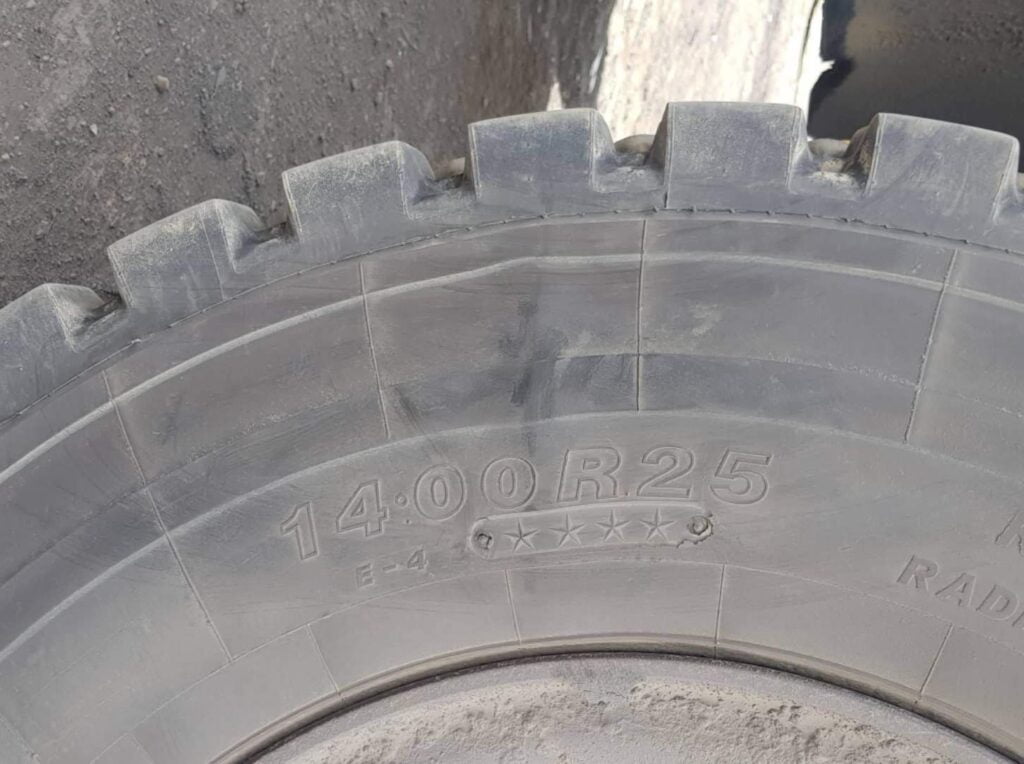

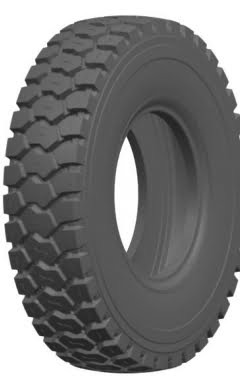

LGXN2

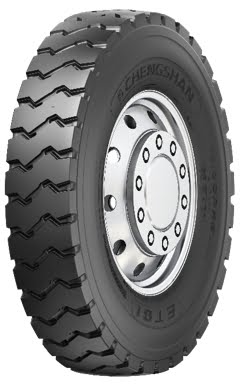

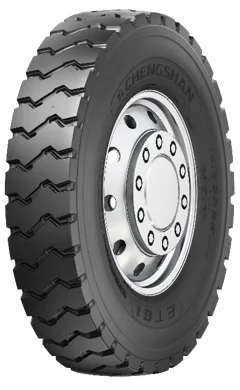

ET01

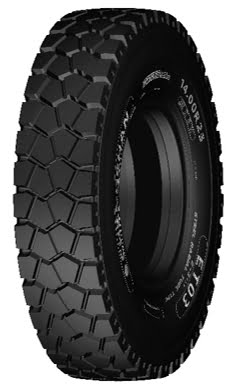

ET03

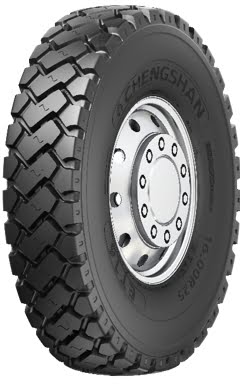

ET16

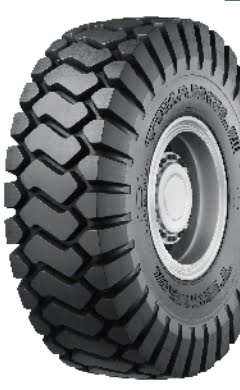

TB516S

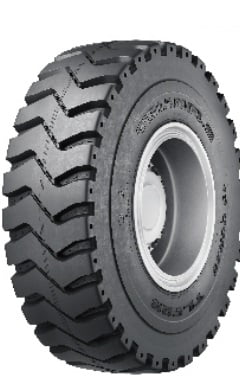

TL569

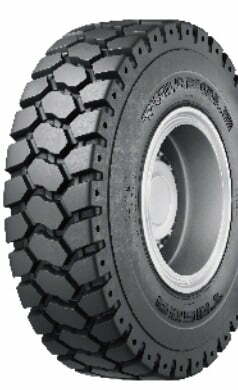

TB526

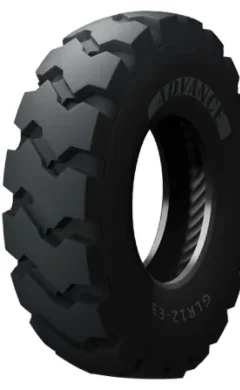

GLR12

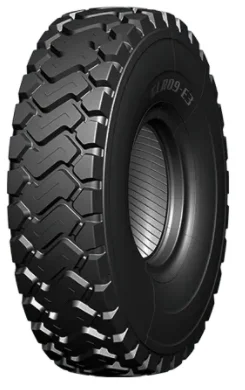

GLR09

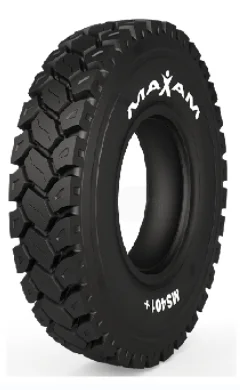

MS401

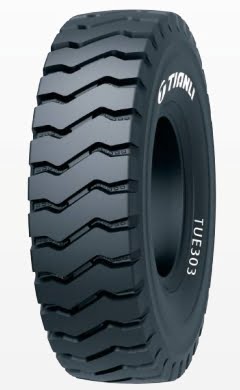

TUE303

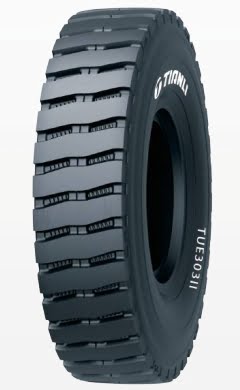

TUE303 II

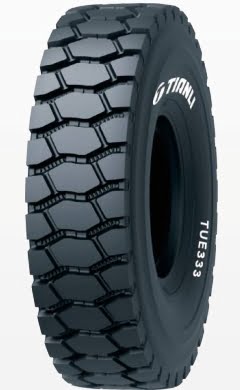

TUE333

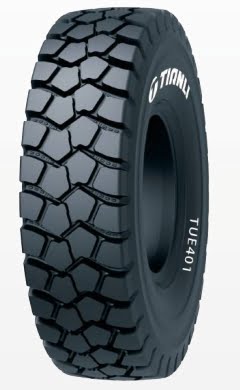

TUE401

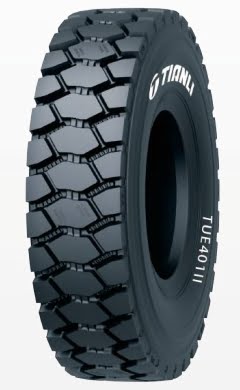

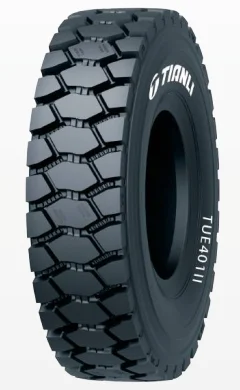

TUE401II

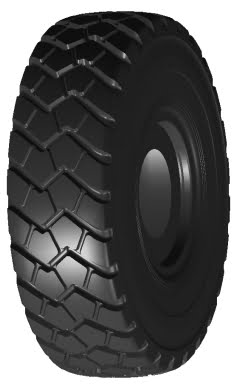

GCB5

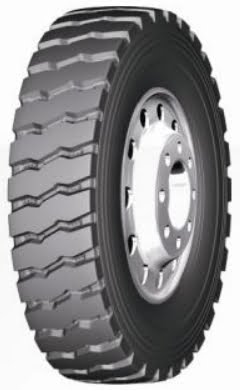

E919

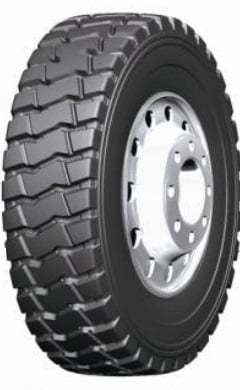

E929

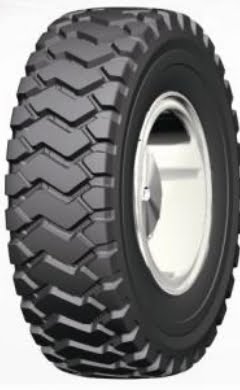

GCB9

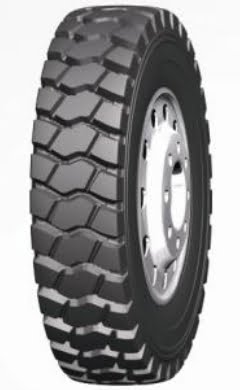

GCD1

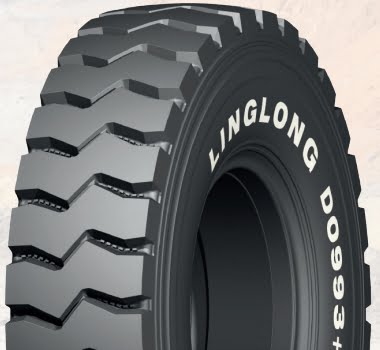

LDO993+

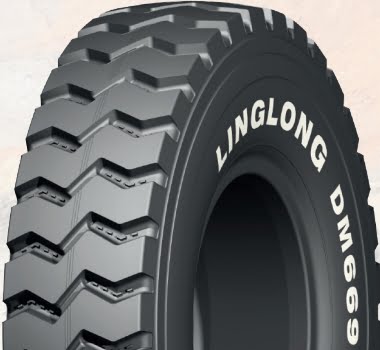

DM669

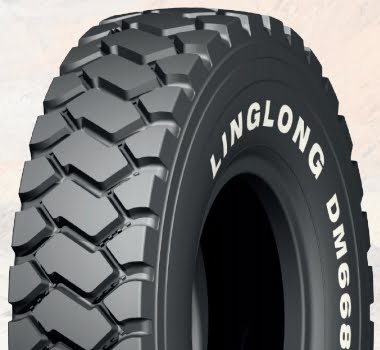

DM668
DM668+

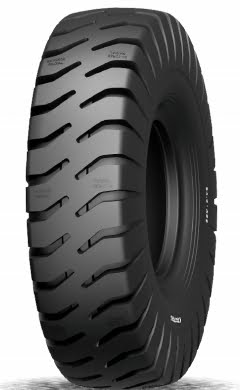

CB765

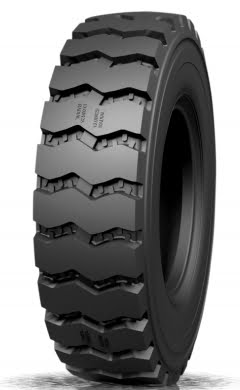

CB793 CB793A
CB771 CB771A

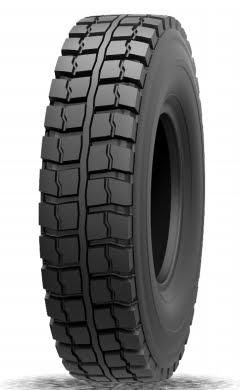

CB393

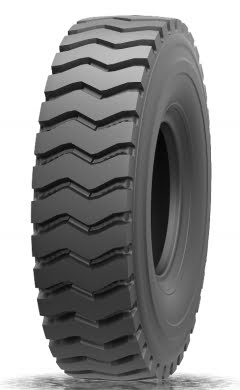

CB395

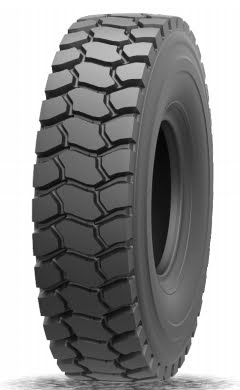

CB397
