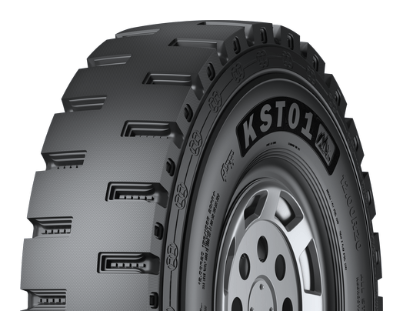

12.00R20 DOUBLECOIN KST01

Features

1 The large-volume main block design and intermediate closed connection design improve the puncture resistance and explosion resistance under extremely harsh road conditions.

2 The design of the bottom step of the trench with the stone discharge structure provides good stone resistance and effectively prevents puncture injuries at the bottom of the trench.

3 Deep groove heat dissipation groove and heat dissipation round hole design of the shoulder effectively increase the heat dissipation performance of the shoulder block.

4 Deepen the depth of the pattern, widen the driving surface design, increase the grounding area, make the grounding more uniform, and reduce irregular wear.

5 Strengthen the crown structure, effectively improve the anti-explosion performance of tires, and reduce the problem of tire crown explosion and top explosion.

6 Enhanced toe design and tear-resistant triangle formula reduce toe deformation and provide excellent load-bearing performance.

7 The tread adopts ultra-gnawing and puncture resistant formula to enhance the wear performance of harsh road surfaces and greatly improve the mileage of tires.

Specifications

12.00R20 DOUBLECOIN KST01 SPECIFICATION:
Tire Size Ply Rating Load Index Speed Symbol Overall Diameter Section Width Tread Arc Width Tread Depth Rim Single Max L/P(kg/kPa) Dual Max L/P(kg/kPa)
(mm) (mm) (mm) (mm)
12.00R20 20PR★ 156/153 B 1142 314 264 30 8.5 4000/900 3650/900
12.00R20 22PR★ 156/153 B 1142 314 264 30 8.5 4000/930 3650/930


Description

Tire and Wheel Assembly

We receive the tires and wheels directly from the manufacturers and assemble them through several high quality and automated processes. We specialize in high precision tire-wheel assembly, logistics.

Advantages

There are many advantages of purchasing complete tire and wheel assemblies from us.
The assemblies are designed by experienced engineers, put together by a work force that manufactures tens of thousands per year, are subject to stringent quality control, and come with a warranty.  Complete wheel and tire assemblies arrive at the customer inflated, with all mobility devices and accessories installed, ready to bolt onto the hub and drive away.

  • Save The Assembly Cost For Our Buyers

    It's much cheaper to assemble them in China with our expertise.

  • Save The Freight Cost For Our Buyers

    We ship more together than seperately.

  • Quality Warranty

    All assemblies come with warranty.

  • Supply of Every Component

    They come with accessories and ready to bolt on hubs.

Service Range

Proinde die funestis interrogationibus praestituto imaginarius iudex equitum resedit magister adhibitis aliis iam quae essent agenda praedoctis, et adsistebant hinc inde notarii, quid quaesitum esset, quidve responsum, cursim ad Caesarem perferentes.

Tubeless Tire, Tube Type Tire, Solid Tire, And Foam Filled Tires
Steel, Aluminum Wheels, And Galvanized Wheels
Range Of Tire/Rim Diameter From 4” To 54”, Wheel Barrow Tires To Off-Road Mining Tires
Manual Assembly

Our Service Steps

  • STEP 1
  • STEP 2
  • STEP 3
  • STEP 4
  • STEP 5
  • Step 1:

    The fitter will get the new tires and wheels ready.

  • Step 2:

    The diameter of the new tire should match the diameter of the rim, and it should be approved for use with the vehicle. Rims should be the correct size, in perfect condition, and free of rust. They must not be damaged, deformed, or worn.

  • Step 3:

    Moving on to the tire beads, the fitter will coat the beads and the rim with fitting lubricant as recommended by the tire manufacturer. Then he will use the tire spreader to mount the tire onto the wheel.

  • Step 4:

    Next comes the inflation of the tire. For the duration of this stage, the wheel must remain firmly secured on a mounting machine. Inflating an unsecured tire is dangerous. The fitter will be aware of this; it’s also why he keeps a reasonable distance from the tire during inflation. Typically, he will use a sufficiently long, secured extension hose with an integrated pressure gauge, and he won’t be bending over the tire as it fills up with air.

  • Step 5:

    Once the beads of the tire are seated correctly on the shoulder of the rim, the fitter will increase the tire pressure to achieve a firm grip on the flanges of the rim. This fitting pressure shouldn’t exceed more than 150% of the maximum pressure recommended by the manufacturer. Next, the fitter will adjust the pressure to the operating pressure as specified by the vehicle manufacturer.

Automatic Assembly Line

Process of automatic assembly line consists of the following process steps:

  • Measuring Station

    A

  • Wheel Soaping
    Station

    B

  • Tire and Wheel
    Matching Station

    E

  • Tire and Wheel Fitting (Mounting)
    StationStation

    D

  • Tire Soaping
    Station

    C

  • Inflation Station

    F

  • Bead Optimizing
    Station

    G

Our Success Stories

Every year, we fit hundreds and thousands of tires to wheels.

  • Fitting Solid Tires
    • Fitting Agri. Tires
  • Fitting Highway Tires
  • Fitting OTR Tires

12.00R20  KST01

Item New Tire HS Code 401120
Pattern Code KST01 Brand DOUBLECOIN
Cord Material Steel Wire Quality Warrantee 120,000-150,000KM
Tube Type Tubeless/ Tubeless Delivery Within 30 Days
Condition New Origin Made in China
Natural Rubber From Malaysia, Thailand, Indonesia etc Certificate DOT/ ECE/ GCC
Equipment Imported From Japan and German Market Middle East, North America
