otr tyre hlg01 27.00r49 33.00r51 36.00r51
hilo hlg01

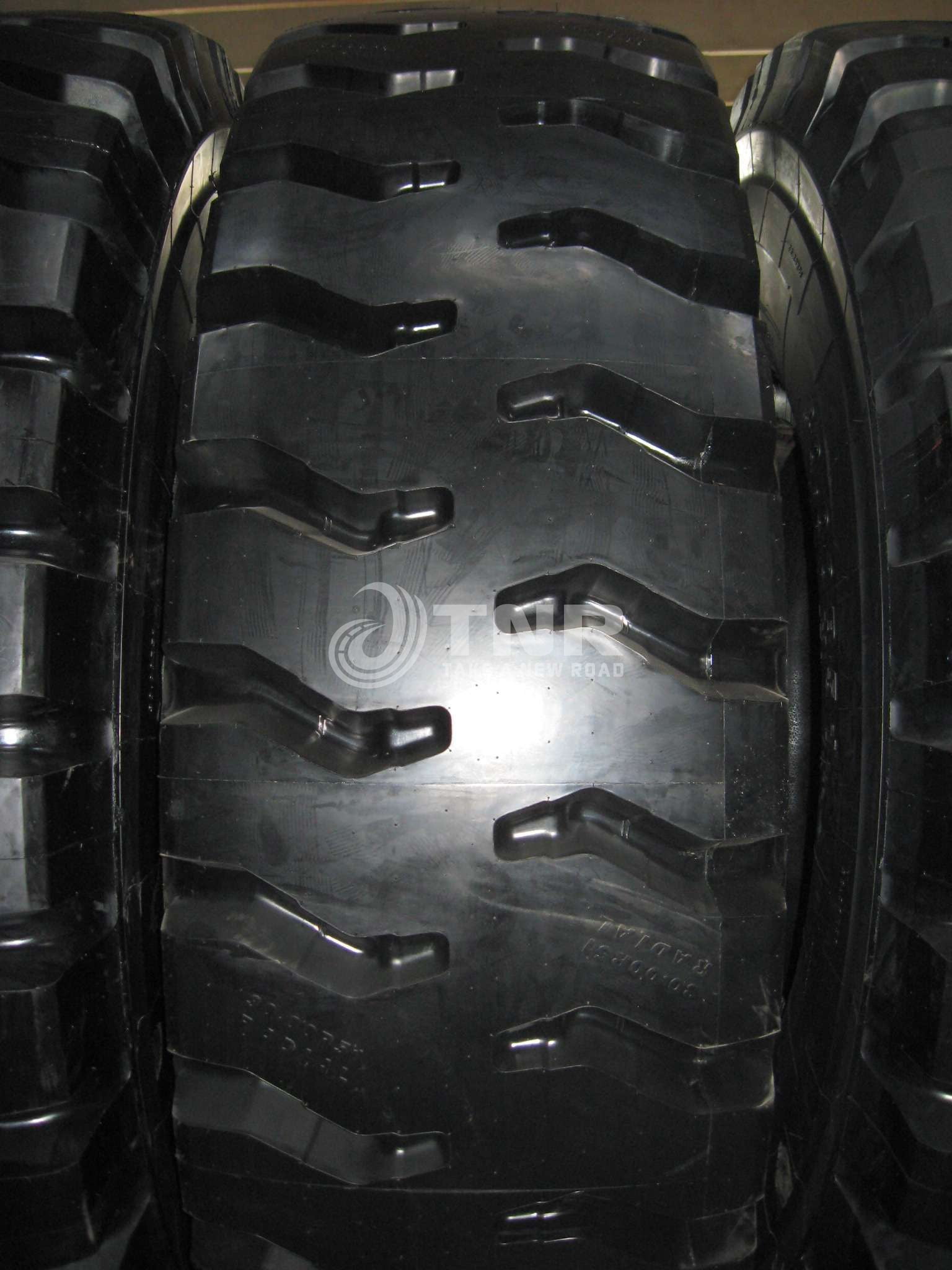

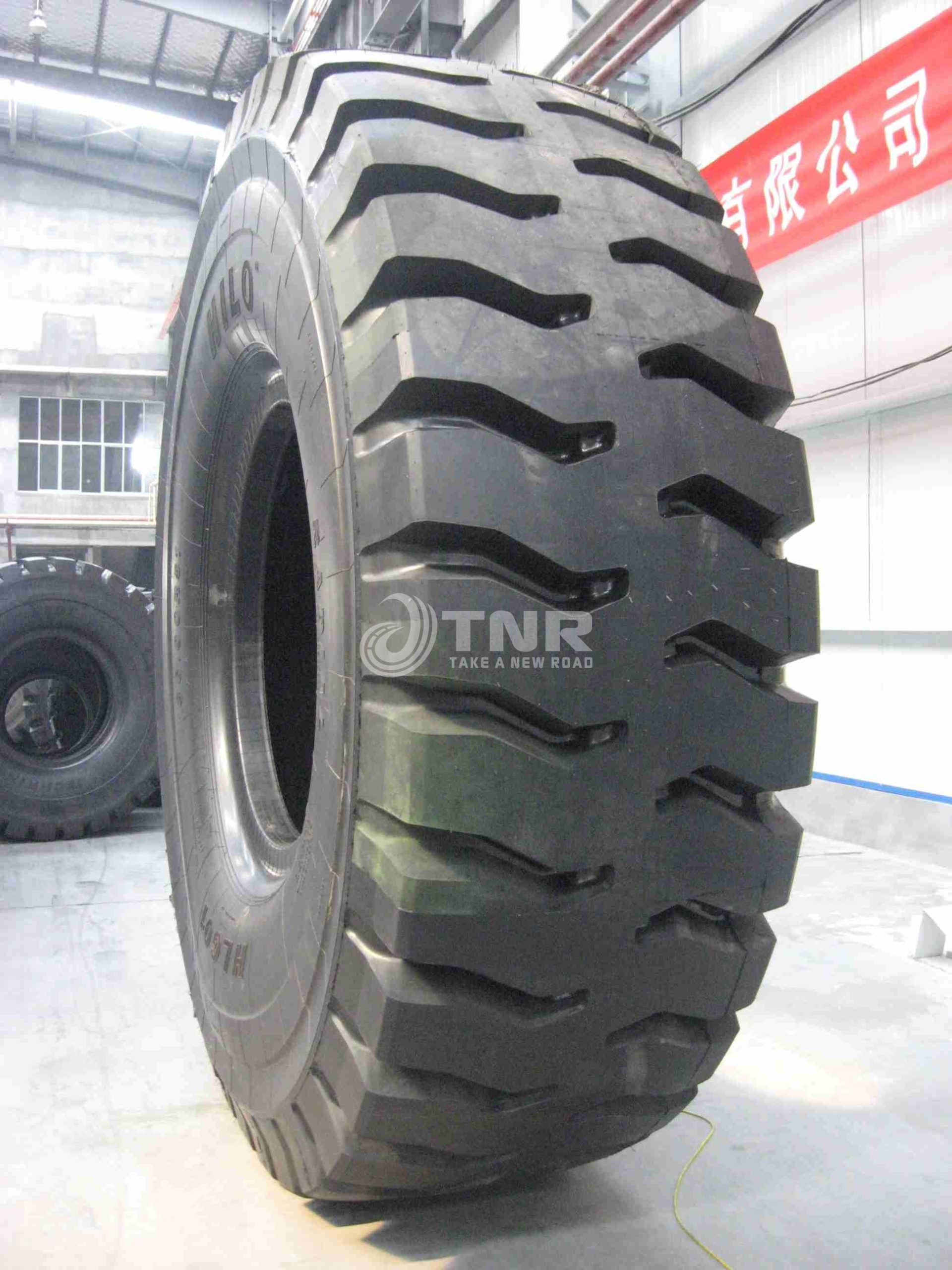

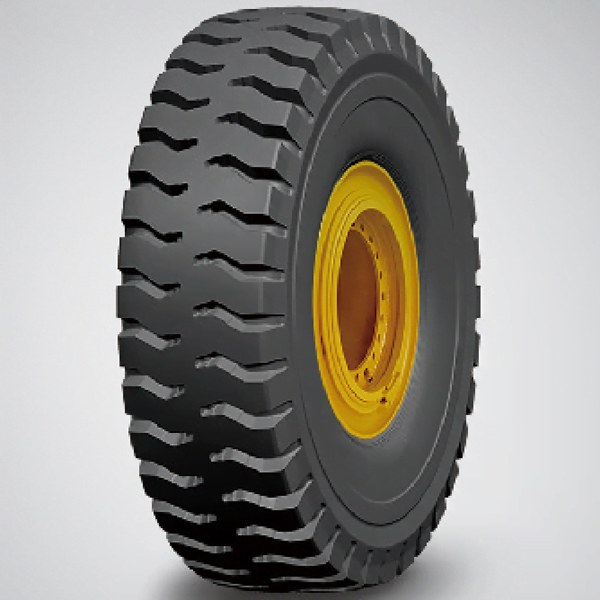

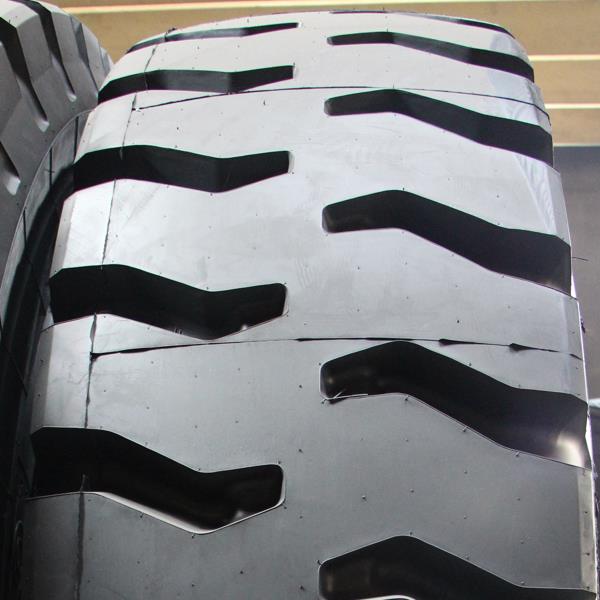

HLG01 Pattern
HLG01-2
otr tyre hlg01 27.00r49 33.00r51 36.00r51
hilo hlg01
HLG01 Pattern
HLG01-2

27.00R49 HILO HLG01 E4 33.00R51 36.00R51

•Rock-deep tread with tough lug and sidewall protectors.

•Special designed for large dump trucks engaged in earthmoving.

•High resistance to cutting anti chipping for tread life.

Specifications:

OTR Tyre HLG01 China-made Giant tire great quality

SIZE STAR RATING LOAD INDEX TRA CODE TREAD DEPTH TYPE Standard Rim (Rim Width &Flange) DIAMETER SECTION WIDTH Max Load STANDER PRESSURE MAX SPEED
(mm) (mm) (mm) (kg) (bar) (Km/h)
27.00R49 ★★ 223 E-4 58 TL 19.50/4.0 2702 737 27250 7.0 50
33.00R51 ★★ 235 E-4 80 TL 24.00/5.0 3061 894 38750 7.0 50
36.00R51 ★★ 241 E-4 88 TL 26.00/5.0 3233 988 46250 7.0 50

Description :

OTR TYRE HLG01 27.00R49  33.00R51 36.00R51

ItemNew TireHS Code401180
Pattern CodeHLG01/EMTLBrandHilo/Megarun
Cord MaterialSteel WireQuality Warrantee2 year
Tube TypeTubelessDeliveryWithin 7 Days
ConditionNewOriginMade in China
Natural RubberFrom Malaysia, Thailand, Indonesia etcCertificate DOT
EquipmentImported From Japan and GermanManufactuerHILO

 Different Tire Compounds availalbe:

C2: Super Cut-resistance Compound
C1: Cut-resistance Compound
CS: High Speed Cut-resistance Compound
R1: Regular Compound
H1: High Speed Compound
H2: Heat Resistance Compound

Where are these tires used:

Open-pit mining, also known as opencast mining, is a surface mining technique that extracts minerals from an open pit in the ground. Open-pit mining is the most common method used throughout the world for mineral mining. This surface mining technique is used when mineral or ore deposits are found relatively close to the surface of the earth. Open-pits are sometimes called ‘quarries’ when they produce building materials and dimension stone. TNR‘s OTR TYRE27.00R49 33.00R51 36.00R51 is one of the most used sizes in open pit mining. The feedbacks from the mine sites have been very positive.

Materials commonly extracted from open-pit mines include:
Bitumen     Clay     Coal    Copper     Coquina   Diamonds      Iron   Gold       Gravel and Bedrock     Granite     Gritstone    Gypsum Limestone    Marble     Molybdenum    Silver     Uranium    Phosphate

FITTING TO MACHINES:

Standard TireMakeModelOptional Tire
27.00R49Caterpillar777G
27.00R49Belaz75570、75571
27.00R49Belaz75581、75583、75585、75589、7558B、7558D、7558F
27.00R49KomatsuHD785-8
27.00R49HitachiEH1700-3
27.00R49TEREXTR100
27.00R49SANYSRT95/SRT95C
33.00R51Caterpillar785D36.00R51
33.00R51Belaz7513、75131、75135、75137、75139、7513A、7513B、7513D
33.00R51KomatsuHD1500-8E0
36.00R51Belaz75170、75172、75173、75174
36.00R51CSR150T
36.00R51XCMGDE170
36.00R51XEMCSF32601

Who is making these tires Now:

MICHELIN, BRIDGESTONE, GOODYEAR, TITAN, MAXAM, HILO, TIANLI, AEOLUS, TRIANGLE, YOKOHAMA
