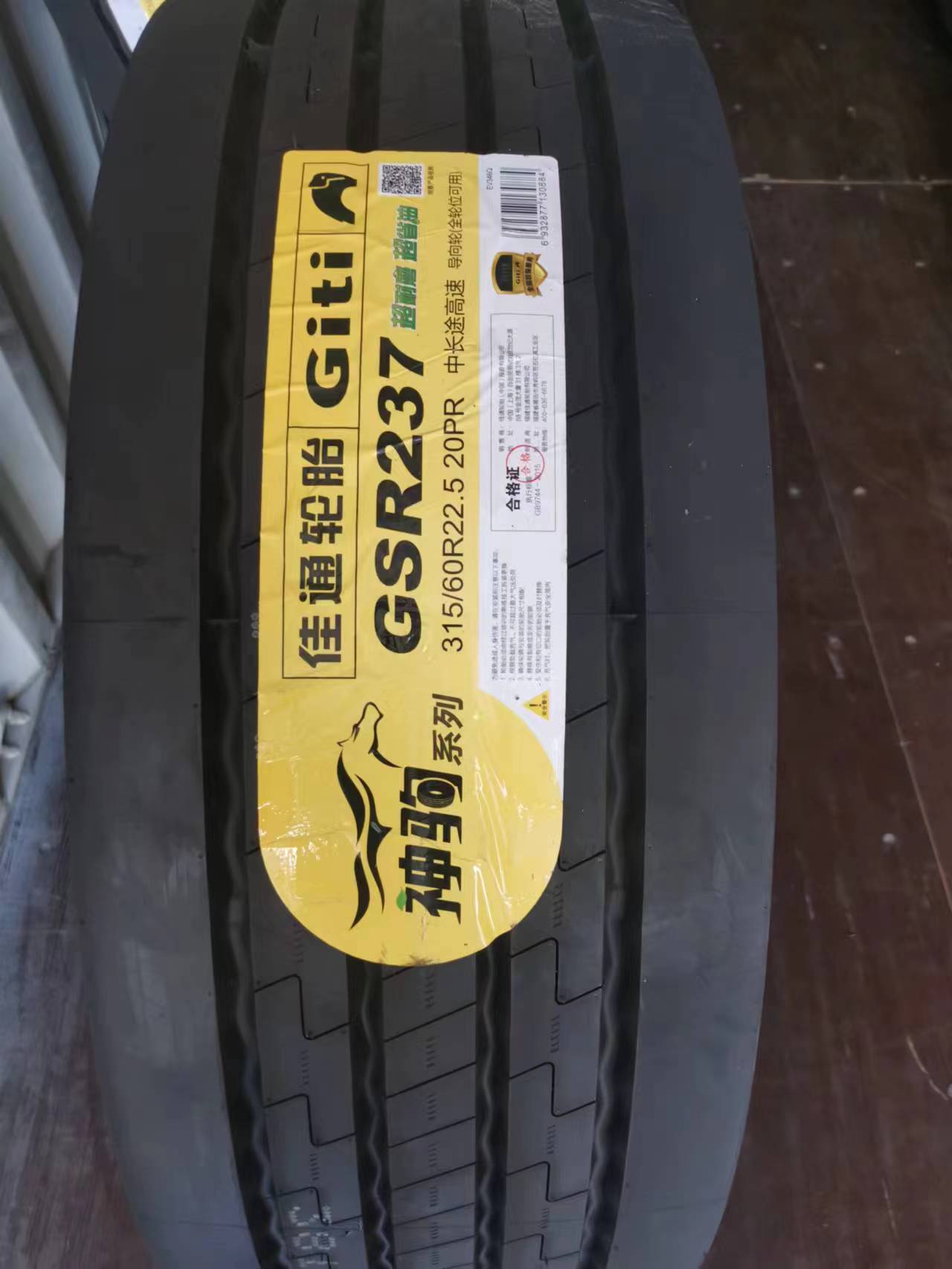

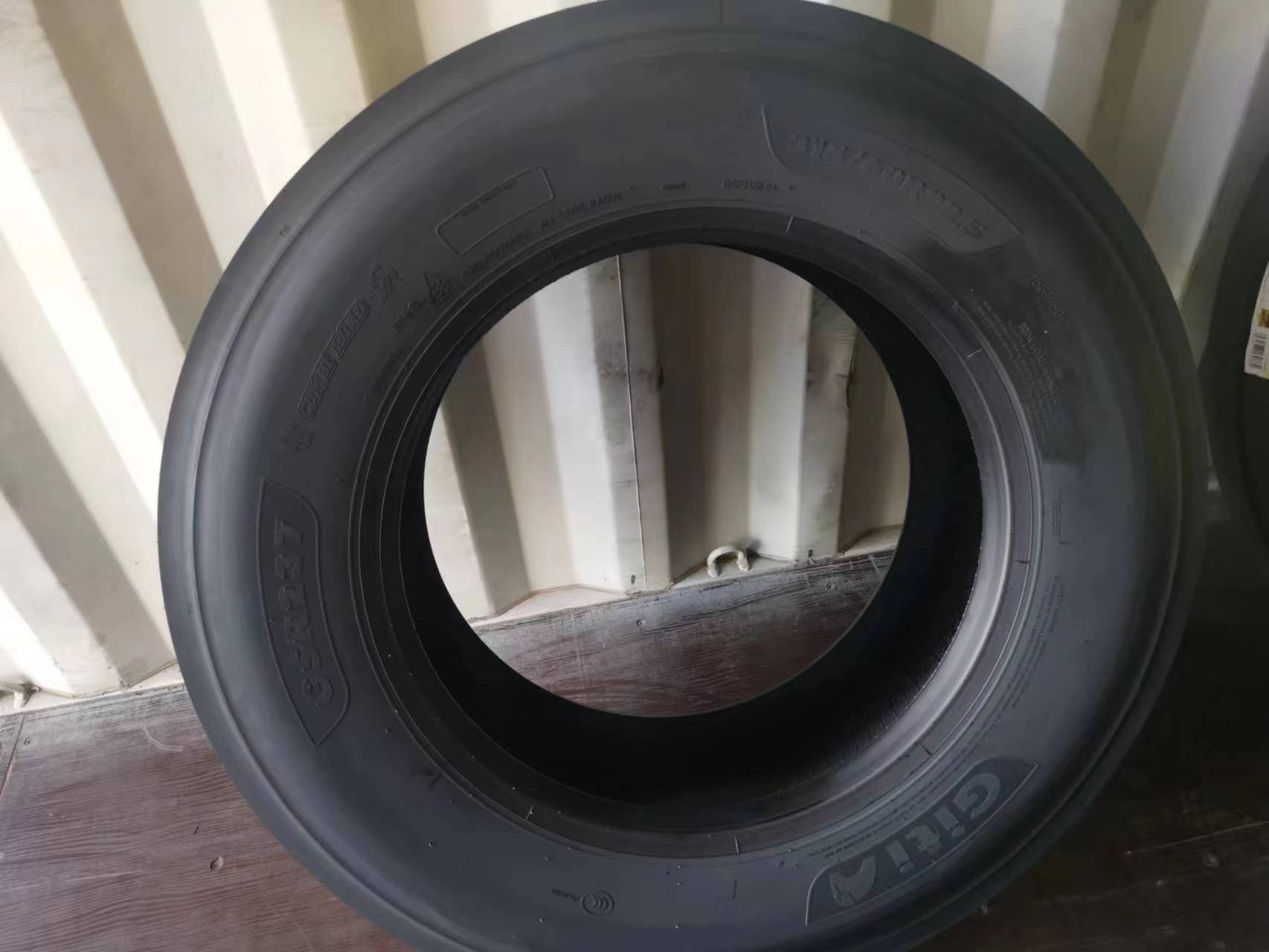

GITI GSR237 355/50R22.5 295/60R22.5

Features

GITI GSR237
  • Features PTD 3.0 technology, wide tread, deep grooves, large pattern pitch, angled groove wall
  • Designed with the ISOM simulation platform, Superior stiffness, low deformation, even force distribution, excellent contact
  • Features CEM patented technology, Long-chain molecule, fine carbon black, high linkage, low heat generation
  • Features LCT patented curing technology, Precision melt blending, quasi-preparation, detailed molding, stable curing process

Specifications

GITI GSR237 Specifications
Size PR Load Index Speed Rating Standard Rim Maximum Load (mm) Maximum Pressure (kPa) Tread Depth (mm) Outer Diameter (mm) Section Width (mm) TL/TT
kg lbs kPa psi
355/50R22.5 20 156 L 11.75 3250/3000 8820 900/900 130/130 12.0 928 361 TL
295/60R22.5 18 156/150 L 9.00 3250/3000 7390/6780 900/900 130/130 15.0 926 292 TL
315/70R22.5 18 154/150 L(M) 9.00 3250/3000 8820/7390 900/900 130/130 15.0 1014 312 TL
275/80R22.5 18 149/146 M 8.25 3250/3000 7160/6610 900/900 130/130 15.8 1012 276 TL
295/80R22.5 18 152/149 M 9.00 3250/3000 7830/7160 900/900 130/130 16.5 1044 298 TL
10R22.5 16 144/142 M 7.50 3250/3000 6175/5840 900/900 130/130 15.8 1019 254 TL
11R22.5 18 149/146 M 8.25 3250/3000 7160/6610 930/930 135/135 16.0 1054 279 TL
12R22.5 18 152/149 M 9.00 3250/3000 7830/7160 930/930 135/135 17.5 1085 300 TL
9.00R20 16 144/142 K 7.00 3250/3000 6175/5840 900/900 130/130 15.8 1019 259 TL
10.00R20 18 149/146 K 7.50 3250/3000 7160/6610 930/930 135/135 16.0 1054 278 TL
