Aircraft tire

Features

  • Advanced material for the tire ensures excellent tire life.
  • High-tech tread compound ensures excellent puncture resistance and tear resistance performance.
  • Special carcass construction saves weight and creates less heat.
  • Shallower tread depth helps to resist tread squirm and irregular wear forces for exceptionally long mileage.
  • Special UV protection improves the tire’s ability to resist weather checking.

Specifications


SIZE Take-off speed (km/h) Landing speed (km/h) MAX Load (KN) Inflation pressure （kPa) Rim Diameter (mm)
 950x300 TL 400 400 87.48 1125+49 466
480x200 TT 193 193 20.58 640 151
480x200 III TT 190 190 10 343+19.6 151
800*200 TT 330 270 33.8 834±49 416
 1050x400 TT 230 220 55.16 390+50 369
 900x300M TT 258 258 47.07 490 368
 660x200 TT 375 340 32.86 1.08+0.05 333.5

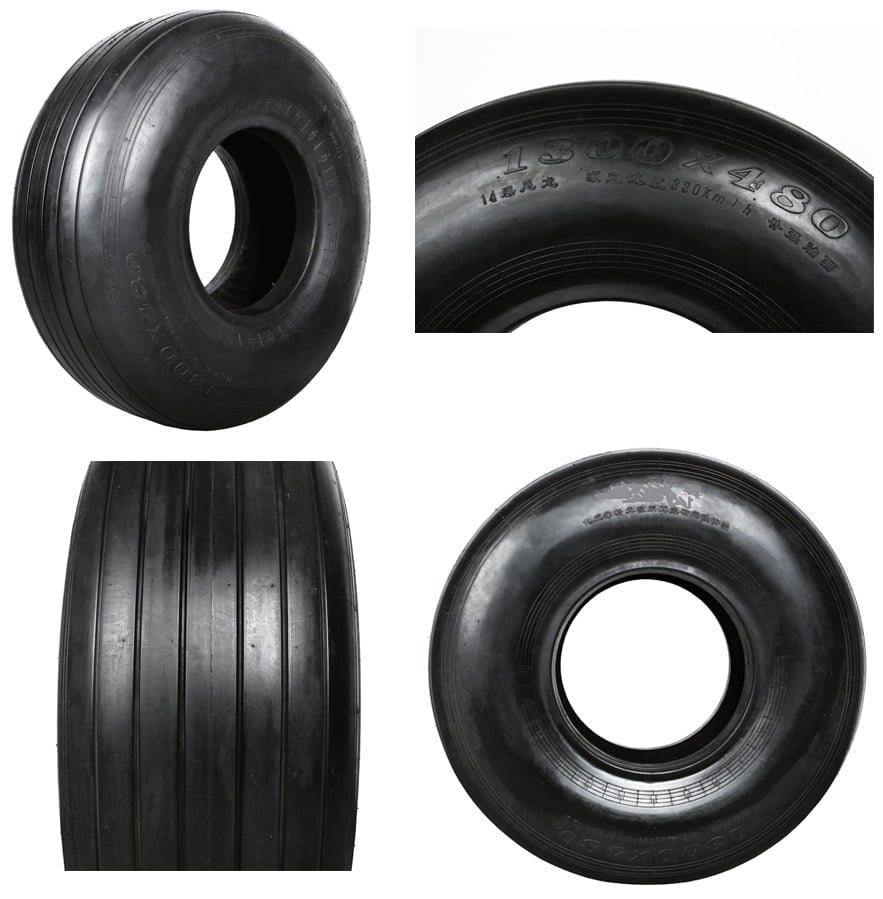

 1300x480 TT 330 280 118.7 686+49 506.5
 1100x330 310 280 66.71 735+49 506.5
 6.50-10 10PR 257 227 21.168 785+49 252.5
 400x150 L 195 195 4.75 460 151
 1030x350 G 360 300 161.81 1864+98 497
 620x180 4A 360 310 24.01 1177+49 303.2
 1050x300M 258 258 78.45 637 506
 680x260 360 325 33.33 930±4 354.2
 570x140 TT 300 270 12.26 790+50 302.8
 840x290 330 290 66.15 1226 358
 840x360 300 280 90.25 1080+50 359
 715x240-305IV 193 193 25.68 470 305
 865x280 TT 260 230 42.17 686 430
 600x180 II TT 300 234 12.75 441 280
 700x250 TT 180 29.14 392.4 356
