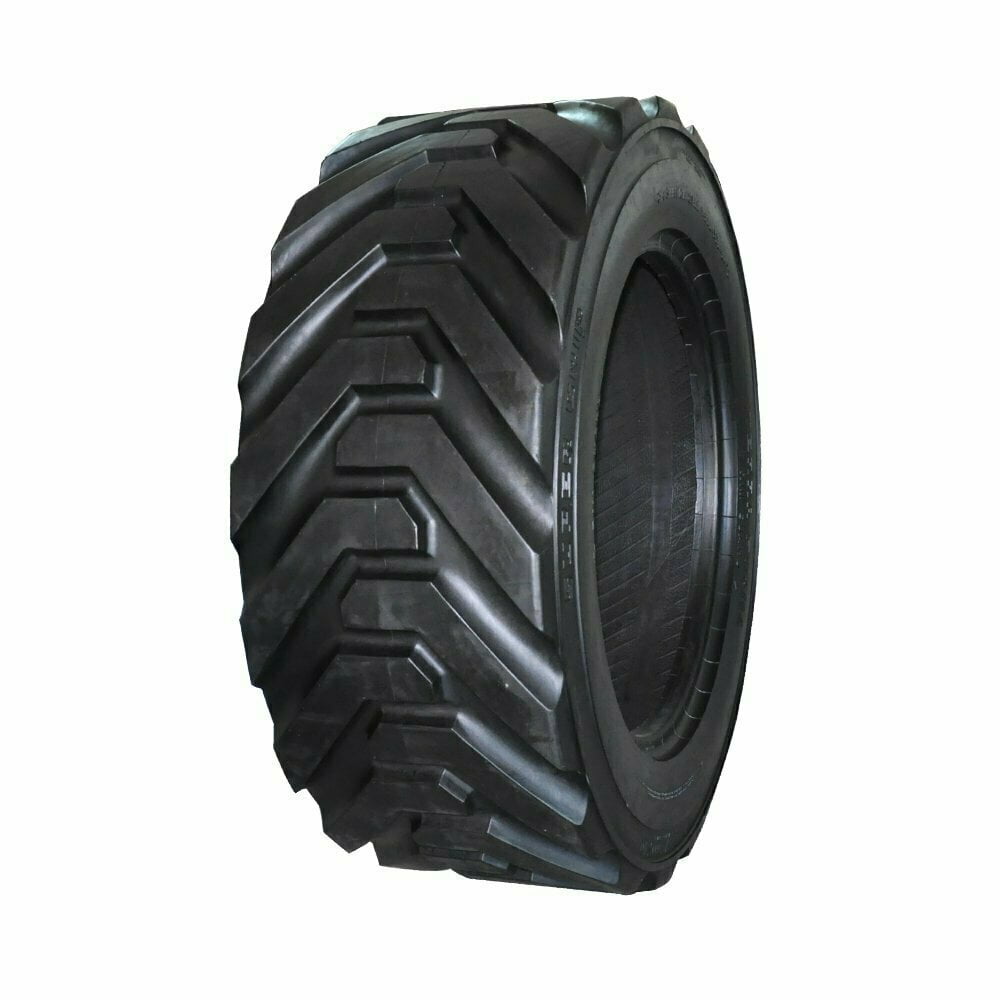

R-4A
Features
> Self cleaning directional tread
> Extra Heavy Duty sidewall and reinforced bead area
> The flat profile allows for more surface contact and longer tread lifeIncreased stability in aerial lift
| SIZE | PR | PATTERN NO. | TYPE | TREADDEPTH(mm) | STD.RIM | MAX LOAD | INFLATION PRESSURE | S.W.(mm) | O.D.(mm) |
| (kg) | （kPa） | ||||||||
| 445/50D710 | 20 | R-4A | TL | 25 | W15 | 7740 | 790 | 445 | 1189 |
| 445/50D710 | 18 | R-4A | TL | 25 | W15 | 7300 | 590 | 445 | 1189 |
| 445/65D22.5 | 18 | R-4A | TL | 25 | 13.00 | 7300 | 690 | 445 | 1180 |
| 445/55D19.5 | 16 | R-4A | TL | 25 | 13.00 | 6000 | 585 | 455 | 1180 |
| 18-625 | 16 | R-4A | TL | 25 | 15.00 | 6900 | 690 | 455 | 1046 |
| 15-625 | 16 | R-4A | TL | 25 | 13.00 | 5580 | 690 | 385 | 1018 |
| 385/65D22.5 | 18 | R-4A | TL | 25 | 11.75 | 6900 | 800 | 389 | 1095 |
| 39x15-22.5 | 16 | R-4A | TL | 25 | 13.00 | 5580 | 690 | 285 | 1018 |
| 385/65D19.5 | 16 | R-4A | TL | 25 | 11.75 | 4935 | 690 | 397 | 1018 |
| 15-19.5 | 16 | R-4A | TL | 25 | 11.75 | 4935 | 690 | 397 | 994 |
| 15-19.5 | 14 | R-4A | TL | 25 | 11.75 | 4625 | 590 | 397 | 994 |
| 355/55D625 | 14 | R-4A | TL | 22.5 | 11.75 | 3450 | 520 | 360 | 936 |
| 315/55D20 | 12 | R-4A | TL | 18 | 11.00 | 3360 | 560 | 319 | 830 |
