Benefits and Features

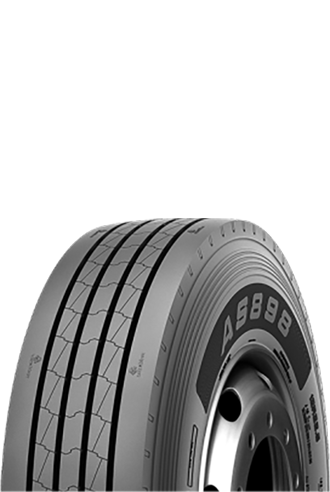

High mileage tyres suitable for long haul application (High mileage formula, high saturation, Large parameters)
The main ditch adopts a zigzag design with groove bottom patterns, Strengthen stone removal performance to avoid tyre malfunctions
Finite element simulation analysis, More uniform distribution of tyre contact pressure, improve uneven wear performance
Optimal belt gap minimize shearing force between the belts with ZC-Rubber's CBOT technology
| Size | LR/PR | Service index | Tread Depth (mm) | Standard Rim | Overall Diameter (mm) | Section Width (mm) | Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 9.5R17.5 | J/18 | 143/141J | 13.0 | 6.75 | 840 | 234 | 2725 | 6005 | 875 | 128 | 2575 | 5675 | 875 | 128 |
| 215/75R17.5 | H/16 | 135/133J | 13.0 | 6.00 | 765 | 216 | 2180 | 4805 | 850 | 123 | 2060 | 4540 | 850 | 123 |
| 235/75R17.5 | H/16 | 143/141J | 13.5 | 6.75 | 792 | 236 | 2725 | 6005 | 875 | 128 | 2575 | 5675 | 875 | 128 |
| 11R22.5 | H/16 | 148/145L | 17.5 | 8.25 | 1054 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 12R22.5 | J/18 | 152/149L | 18.5 | 9.00 | 1085 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
| 295/80R22.5 | J/18 | 152/149M | 16.0 | 9.00 | 1044 | 298 | 3550 | 7830 | 900 | 131 | 3250 | 7160 | 900 | 131 |
| 315/80R22.5 | J/18 | 154/151M(156/153L) | 15.0 | 9.00 | 1076 | 312 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
*Reserves the rights of final interpretation and modification
