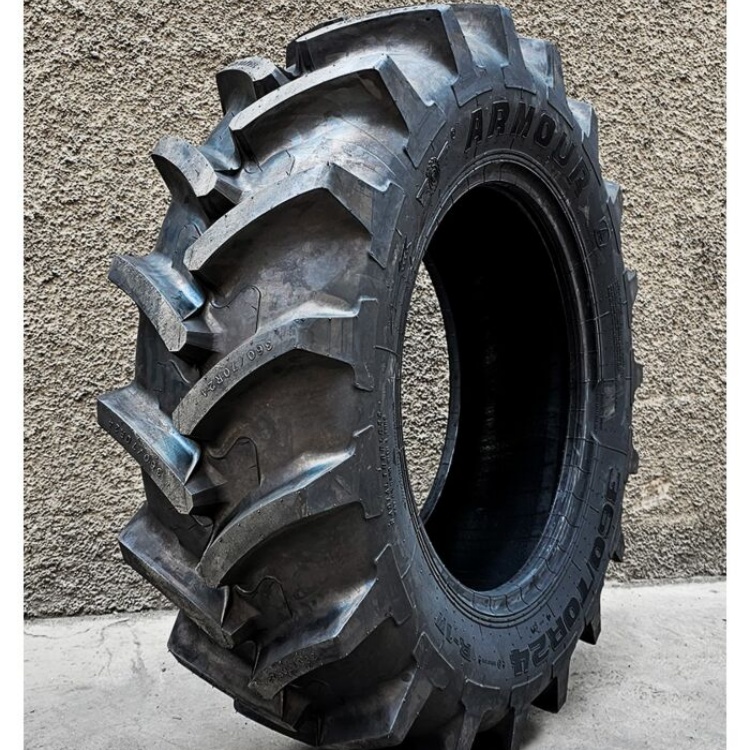

Armour 380/85R26(14.9R26) R1-W Agricultural tire

Features

Applicable models: Widely applicable to various tractors and other agricultural machinery.

  •  Larger contact area, effective soil protection.
  •  Outstanding wear and puncture resistance.
  • High-strength tyre body, good dimensional stability, superior load-bearing capacity.
  • Efficient operation, low slippage rate, and more fuel efficiency.

Specifications

 Size Ply Rating Pattern Code Standard Rim Tread Depth (mm) Overall Diameter (mm) Section Width (mm) Relevant Pressure (kap) Max Loading (kg)
 480/65R28 136D R-1W W15L 45 1335 479 160 2240
 540/65R24 140D R-1W W18L 48 1312 550 160 2500
 540/65R28 142D R-1W W¹8L 48 1413 550 160 2650
 540/65R30 143D R-1W W18L 48 1464 550 160 2725
 540/65R34 145D R-1W W18L 48 1566 550 160 2900
 540/65R38 147D R-1W W18L 48 1667 550 160 3075
 600/65R28 147D R-1W DW20B 49 1491 591 160 3075
 600/65R34 151D R-1W DW20B 49 1644 591 160 3450
 600/65R34 159D R-1W DW20B 49 1644 591 280 4375
 600/65R38 153D R-1W DW20B 49 1745 591 160 3650
 650/65R38 157D R-1W DW20B 50 1811 645 160 4125
 650/65R42 158D R-1W DW20B 50 1913 645 160 4250
 260/70R16 101D R-1W W8 37 770 258 160 825
 260/70R16 109D R-1W W8 37 770 258 240 1030
 260/70R20 113D R-1W W8 37 872 258 240 1150
 280/70R16 102D R-1W W9 38 798 282 160 850
 280/70R16 112D R-1W W9 38 798 282 240 1120
 280/70R18 104D R-1W w9 38 849 282 160 900
 280/70R18 114D R-1W W9 38 849 282 240 1180
 280/70R20 116D R-1W W9 38 900 282 240 1250
 300/70R20 110D R-1W W9 40 952 295 160 1060
 300/70R20 120D R-1W W9 40 952 295 240 1400
 320/70R20 113D R-1W W10 40 982 319 160 1150
 320/70R20 123D R-1W W10 40 982 319 240 1550
 320/70R24 116D R-1W W10 40 1094 319 160 1250
 360/70R20 120D R-1W W11 42 1042 357 160 1400
 360/70R24 122D R-1W W11 42 1152 357 160 1500
 380/70R24 125D R-1W W12 43 1190 380 160 1650
 380/70R28 127D R-1W W12 43 1293 380 160 1750
 420/70R24 130D R-1W W13 44 1248 418 160 1900
 420/70R28 133D R-1W W13 44 1349 418 160 2060
 480/70R28 140D R-1W W15L 48 1421 479 160 2500
 480/70R30 141D R-1W W15L 46 1478 479 160 2575
 480/70R34 143D R-1W W15L 46 1580 479 160 2725
 480/70R38 145D R-1W W15L 46 1681 479 160 2900
520/70R38 150D R-1W W16L 50 1749 516 160 3350
 580/70R38 155D R-1W W18L 50 1827 577 160 3875
 580/70R42 158 D R-1W W18L 50 1879 577 160 4250
 600/70R30 152D R-1W DW20B 50 1602 591 160 3550
 620/70R30 153D R-1W DW20B 52 1632 625 160 3650
 620/70R42 160D R-1W DW20B 51 1935 625 160 4500
 650/70R42 163D R-1W DW20B 52 1976 645 160 4875
 710/70R38 166D R-1W DW23B 55 1959 716 160 5300
710/70R42 168D R-1W DW23B 55 2061 716 160 5600
710/70R42 173D R-1W DW23B 55 2061 716 240 6500
 250/80R18 102A8 R-1W W8 38 854 252 160 850
 480/80R42 151A8 R-1W DW15L 49 1835 479 160 3450
 480/80R46 158A8 R-1W DW15L 49 1936 479 240 4250
 480/80R50 159 A8 R-1W DW15L 49 2038 479 240 4375
 240/85R24 107A8 R-1W W8 38 1018 244 160 975
 280/85R20 112A8 R-1W W10 42 984 285 160 1120
 280/85R24 115A8 R-1W W10 41 1086 285 160 1215
 280/85R28 118A8 R-1W W10 41 1187 285 160 1320
 320/85R24 122 A8 R-1W W10 44 1154 319 160 1500
 320/85R28 124A8 R-1W W10 42 1255 319 160 1600
 340/85R24 125A8 R-1W W12 44 1188 345 160 1650
 340/85R28 127 A8 R-1W W12 44 1289 345 160 1750
 380/85R24 131A8 R-1W W13 46 1256 380 160 1950
 380/85R26 127 A8 R-1W W13 46 1307 380 160 1750
 380/85R28 133A8 R-1W W13 46 1357 380 160 2060
 420/85R24 137 A8 R-1W DW15L 48 1324 429 160 2300
 420/85R28 139A8 R-1W DW15L 48 1425 429 160 2430
 420/85R30 140 A8 R-1W DW15L 48 1476 429 160 2500
 420/85R34 142A8 R-1W DW15L 48 1578 429 160 2650
 420/85R38 144A8 R-1W DW15L 46 1679 429 160 2800
 460/85R30 145A8 R-1W DW16L 49 1544 455 160 2900
 460/85R34 147A8 R-1W DW16L 49 1646 455 160 3075
 460/85R38 149A8 R-1W DW16L 49 1747 455 160 3250
 460/85R42 150 A8 R-1W DW16L 49 1849 455 160 3350
 520/85R38 155A8 R-1W DW16L 51 1849 528 160 3875
 520/85R42 157A8 R-1W DW16L 51 1951 528 160 4125
 520/85R42 162A8 R-1W DW16L 51 1951 528 240 4750
 520/85R46 158A8 R-1W DW16L 51 2052 528 160 4250
 650/85R38 173A8 R-1W DW20B 57 2071 645 240 6500
 420/90R30 147 A8 R-1W DW13 49 1518 429 240 3075
