Mobile Crane Tires

High-speed mobile crane tires

Crane/Mobile Crane tires operate in highway and off-road applications. They carry heavy loads and operate often at high speeds.
They could go as fast as 70km/h (speed rate E) or 80km/h ( speed rate F).

Our range of crane tires:

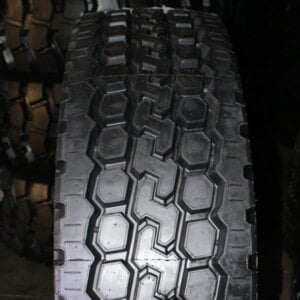

BGZN E2
14.00R24 (385/95R24)
14.00R25 (385/95R25)
16.00R25 (445/95R25)

BGZN tire TNR

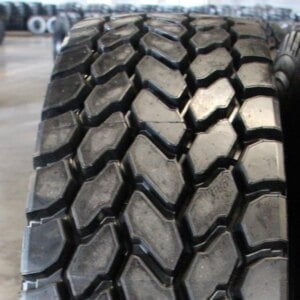

B05N E2
14.00R24 (385/95R24)
14.00R25 (385/95R25)
16.00R25 (445/95R25
17.5R25 (445/80R25)
20.5R25 (525/80R25)
18.00R25 (505/95R25)

TNR

Through a combination of simple machines, mobile cranes are able to lift heavy objects. However, mobile cranes can also be used to hoist, transport and place these large, heavy materials, mostly in industrial and construction applications.

Crane types:
-Truck Cranes (TC)
-All Terrain (AT) Cranes
-City Cranes
-Rough Terrain (RT) Cranes
-Compact Industrial Cranes
-Mobile Harbor Cranes

Speed is an important requirement for the tires fitted to mobile cranes.

Our crane tires are designed especially for on and off-road applications. The unique compound of our tires provide excellent high-speed stability and endure performance which ensures a comfortable ride.

In addition, our mobile crane tires have reinforced shoulders and wide footprint to provide low vibration. And a full steel radial construction delivers optimized load performance.

The Change in Load Carrying Capacity with Operating Speed


SpeedMaximum Load
Speed Symbol: E Speed Symbol: F
30 km/h (20 mph) +30%+25%
40 km/h (25 mph) +24%+15%
50 km/h (30 mph)+18%+12%
60 km/h (35 mph) +12%+10%
70 km/h (43 mph) +0%+5%
80 km/h (50 mph) -18%+0%
90 km/h (55 mph)-30%-6%
100 km/h (62 mph)-40%-15%

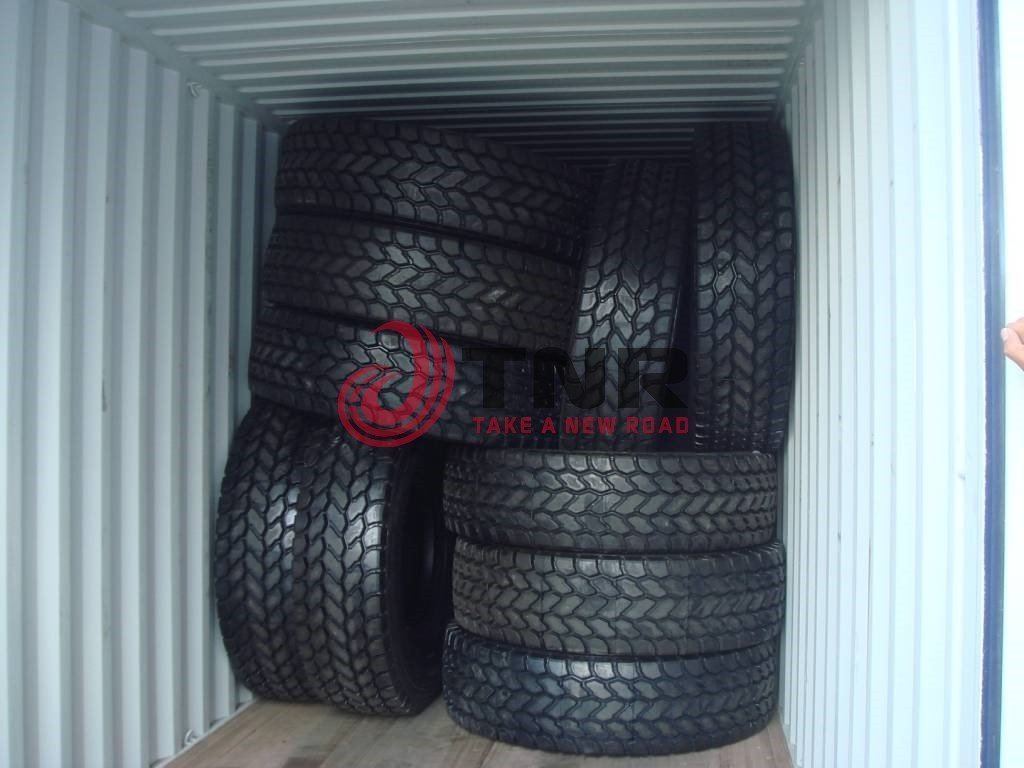

Crane tire stock and shipment



Q&A
How much does a crane tire weigh?

14.00R24 (385/95R24)  155KGS
14.00R25 (385/95R25)   153KGS
16.00R25 (445/95R25    210KGS
17.5R25 (445/80R25)     180KGS
20.5R25 (525/80R25)     265KGS
18.00R25 (505/95R25)   280KGS

  •  Do cranes drive on the road?

- Rough terrain cranes cannot be driven on public highways or most other public roads. If you need to lift and carry a load from a job site across a public street to another site, or use a public road in any other way, you'll likely need to use a different type of crane, like the all-terrain cranes, or truck cranes

- With lifting capacities from 20 to 65 tons, these powerful machines are made mobile with rubber tires, making operations more efficient as cranes move around the terminal. Harbor cranes are large dockside vehicles used for loading and unloading container ships.   - Up to different types of cranes, it could have as many as 10 tires per crane.

Other crane tires from China:

Doublecoin REM8
TRIANGLE TB586 TB589 TB576
Windpower W725
BOTO GCA5 GCA6 GCB1 GCD2
MAXAM MSV01

Top 10 crane manufacturers

10. Palfinger | Austria

Palfinger AG is an Austrian manufacturer of hydraulic lifting, loading and handling systems, especially known for its range of cranes.

9. Manitowoc Cranes | United States

Manitowoc Cranes, the only U.S. crane manufacturer in the top 10 list has retained its position as the ninth largest crane maker in the world despite its sales shrinking to $1.44 billion in 2020, down from $1.83 billion in 2019.

8. Tadano | Japan

Tadano Ltd. is the largest Japan-based manufacturer of cranes and aerial work platforms, with sales of $1.61 billion in 2020 down from $2.13 billion in 2019.

7. Cargotec | Finland

Cargotec Oyj is a Finnish corporation that specializes in the manufacture of cargo-handling machinery for ships, seaports, terminals and local distribution.

6. Sany | China

Sany Heavy Industry Co. Ltd is now the sixth largest crane manufacturer in the world after growing its sales 57% to $3.43 billion in 2020 up from $2.09 billion in 2019.

5. ZPMC | China

ZPMC Shanghai Zhenhua Heavy Industries Co. Ltd. is a world leader in manufacturing and delivery of port equipment with over 20 overseas offices – dominating the ship-to-shore and yard gantry container crane market.

4. Konecranes | Finland

Based in Hyvinkää, Finland, Konecranes is the fourth largest crane maker in the world with 2020 sales of $3.68 billion down from $3.84 billion the previous year.

3. Liebherr | Germany

Liebherr Group is a popular supplier of heavy equipment in Europe.

The German company, which was founded in 1949, produces a wide range of excavators, cranes, wheeled loaders, telescoping handlers, and dozers.

2. Zoomlion | China

Chinese multinational Zoomlion Heavy Industry Science and Technology Co., Ltd is officially second in the list of top 10 crane manufacturers after growing its crane sales 58% to $5.5 billion in 2020 from $3.3 billion in 2019.

1. Xuzhou Heavy Machinery (XCMG) | China

Xuzhou Heavy Machinery (XCMG) now ranks first in the list of top 10 crane manufacturing companies in the world after growing its sales 74% to $5.66 billion in 2020 from $3.11 billion the previous year.
