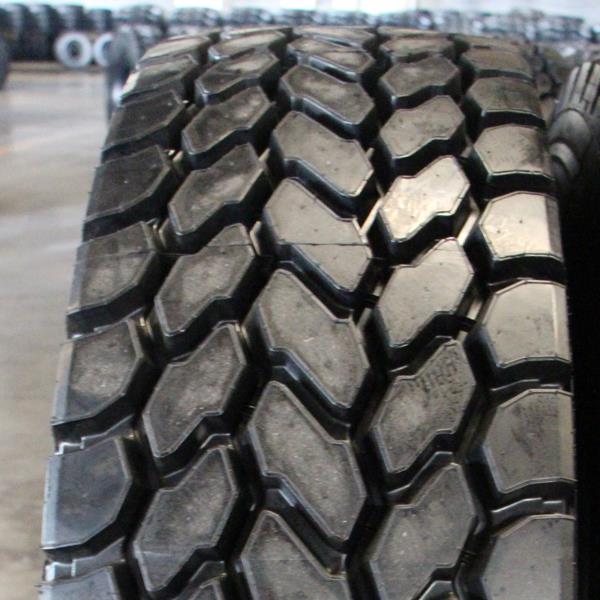

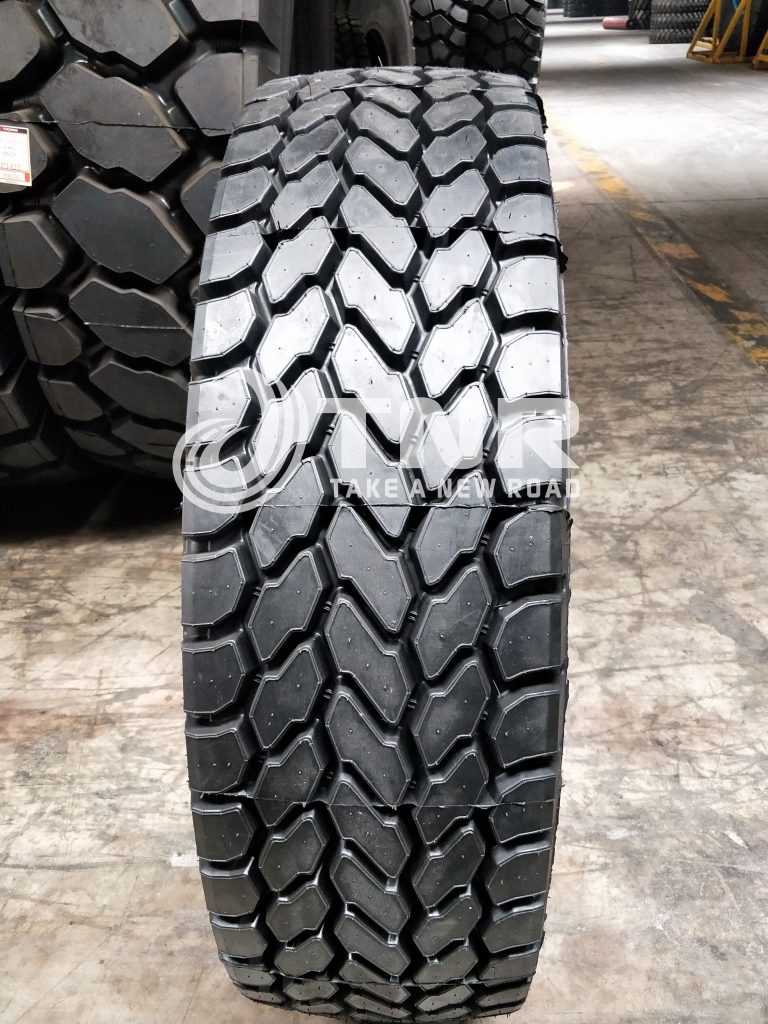

B05N mobile crane tire
B05N

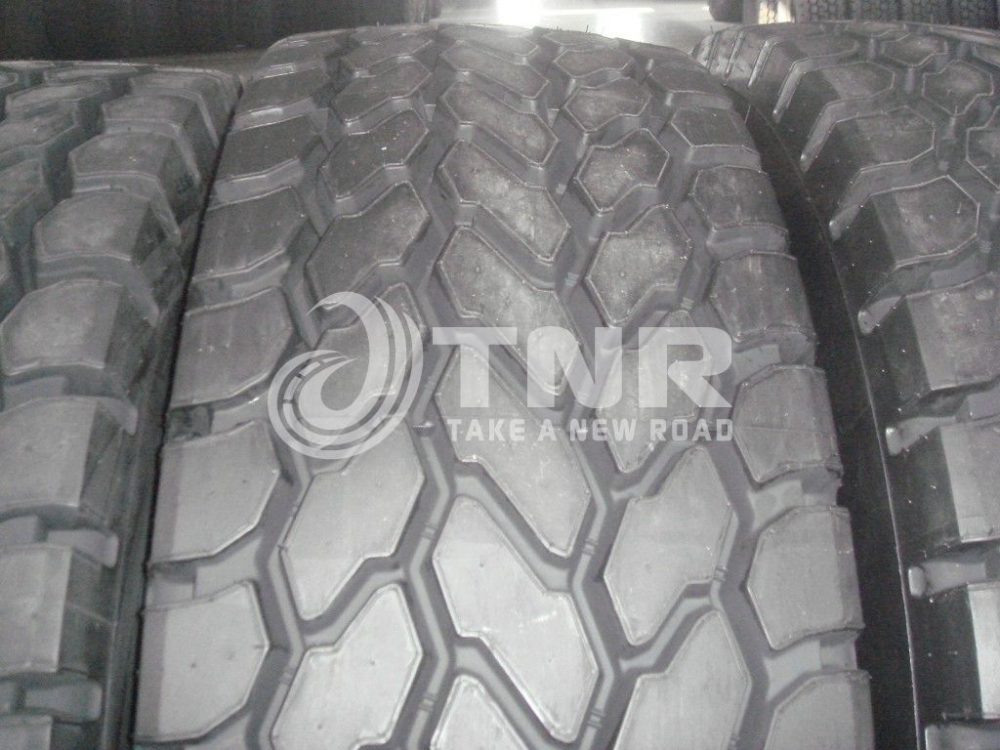

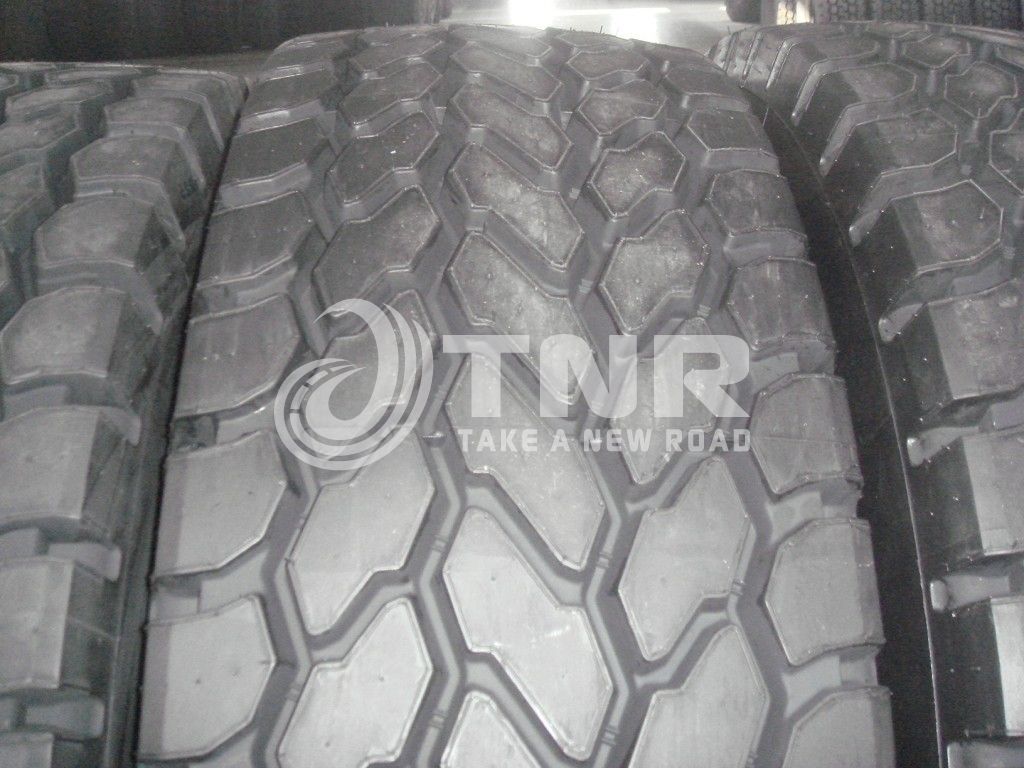

DSC04981

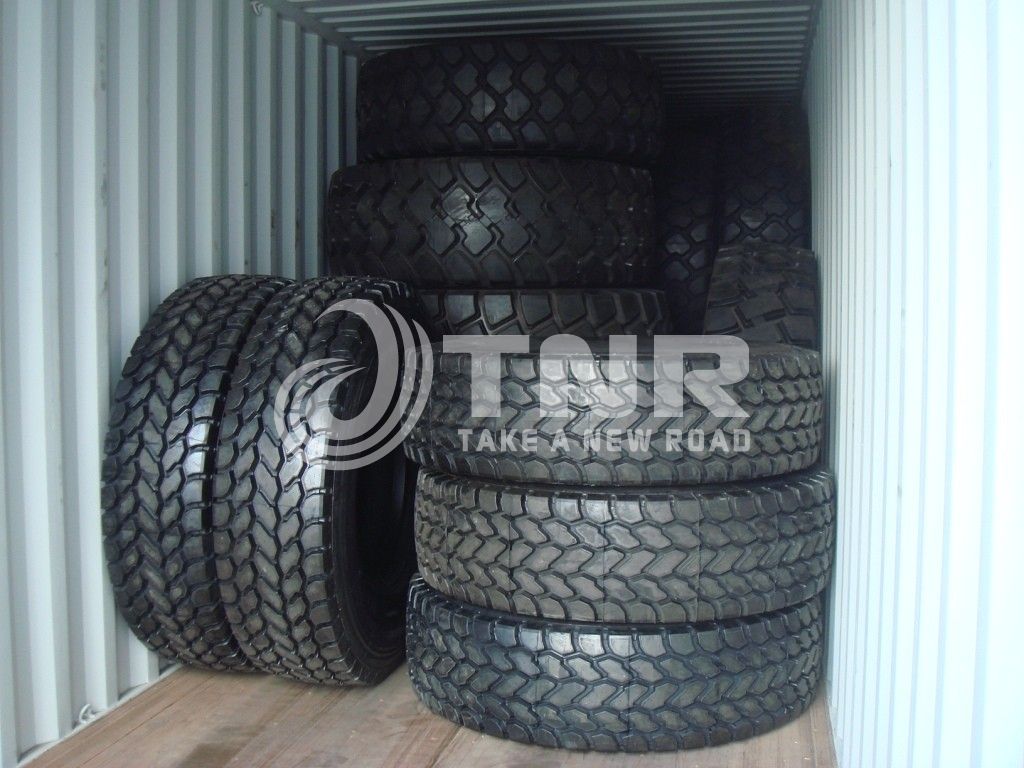

B05N Pattern Tires
001
B05N mobile crane tire
B05N
DSC04981
B05N Pattern Tires
001

HILO B05N E2 14.00R25 16.00R25

B05N

➣Heat resistance compound and high speed durability.
➣ Providing reduced rubber tension for better resistance to cuts.
➣B05n is up to 10% additional tread volume.

Specifications:

B05N Specifications

SIZE STAR RATING LOAD INDEX TRA CODE TREAD DEPTH TYPE Standard Rim (Rim Width &Flange) DIAMETER SECTION WIDTH Max Load STANDER PRESSURE MAX SPEED
(mm) (mm) (mm) (kg) (bar) (Km/h)
14.00R24 (385/95R24) ★★★ 170 E-2 23 TT 10.00W 1356 382 6000 10 70
14.00R25 (385/95R25) ★★★ 170 E-2 23 TL 10.00/1.5 1356 382 6000 10 70
16.00R25 (445/95R25) ★★★ 174/177 E-2 28 TL 11.25/2.0 1493 432 6700/7300 10 80/70
17.5R25 (445/80R25) ★★★ 170 E-2 28 TL 14.00/1.5 1348 445 6000 8 70
20.5R25 (525/80R25) ★★★ 179 E-2 31 TL 17.00/2.0 1490 521 7750 8 70
18.00R25 (505/95R25) ★★★ 186 E-2 28 TL 13.00/2.5 1615 498 9500 9.0 70

Description :

B05N 3* Hilo E-2 TL


ItemNew TireHS Code401180
Pattern CodeB05N=ETCRANEBrandHilo
Cord MaterialSteel WireQuality Warrantee2 year
Tube TypeTubelessDeliveryWithin 7 Days
ConditionNewOriginMade in China
Natural RubberFrom Malaysia, Thailand, Indonesia etcCertificate DOT
EquipmentImported From Japan and GermanManufactuerHILO

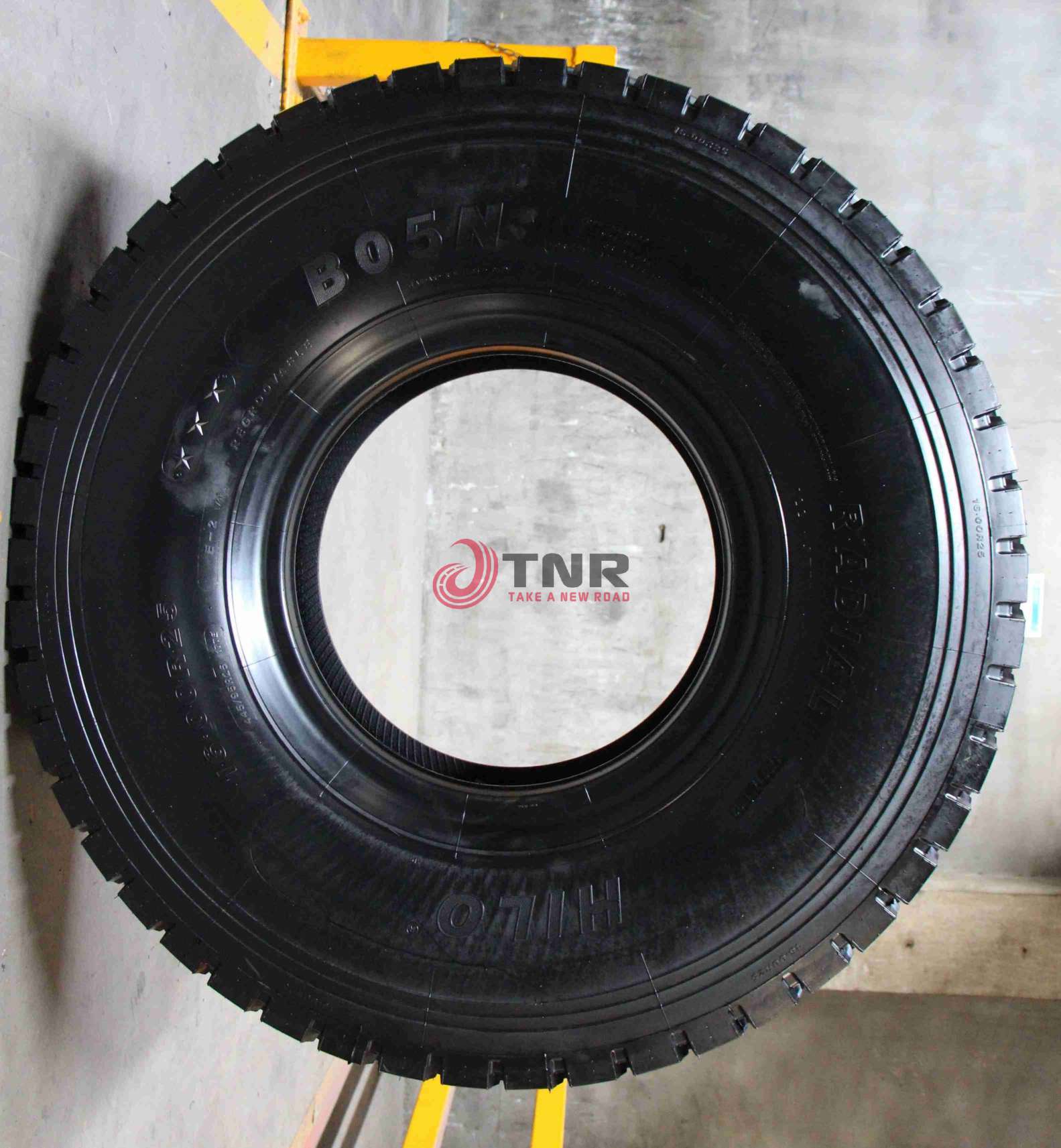

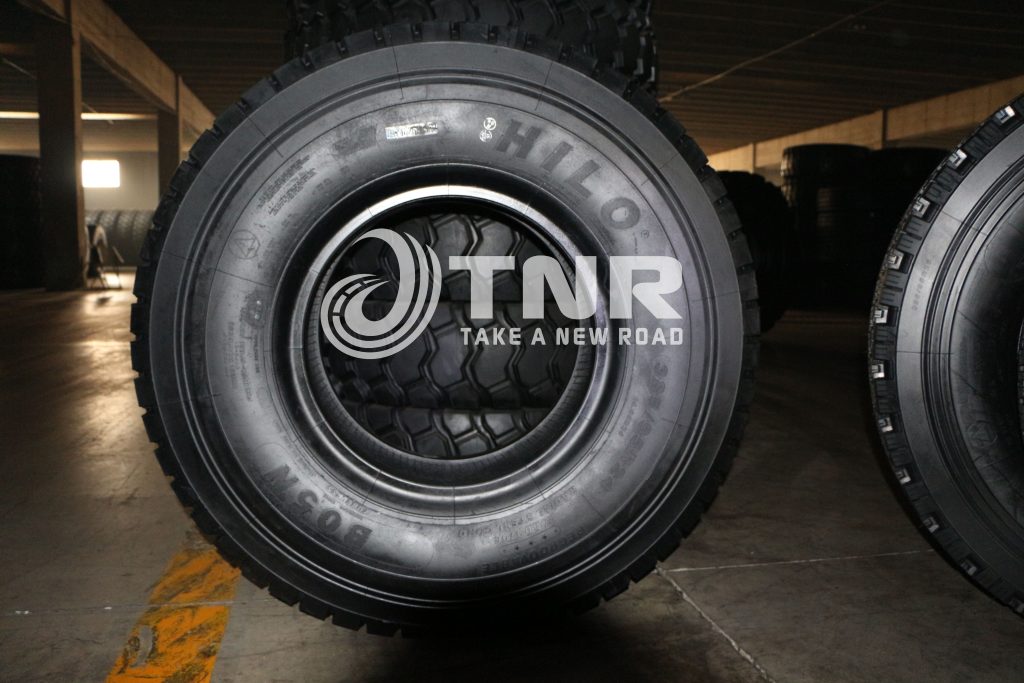

B05N 3* HILO E-2 Mobile Crane Tire sidewall

more informaiton: mobile crane tire

TOP crane manufacturer:

1. Xuzhou Heavy Machinery (XCMG) | China
Xuzhou Heavy Machinery (XCMG) now ranks first in the list of top 10 crane manufacturing companies in the world after growing its sales 74% to $5.66 billion in 2020 from $3.11 billion the previous year.
