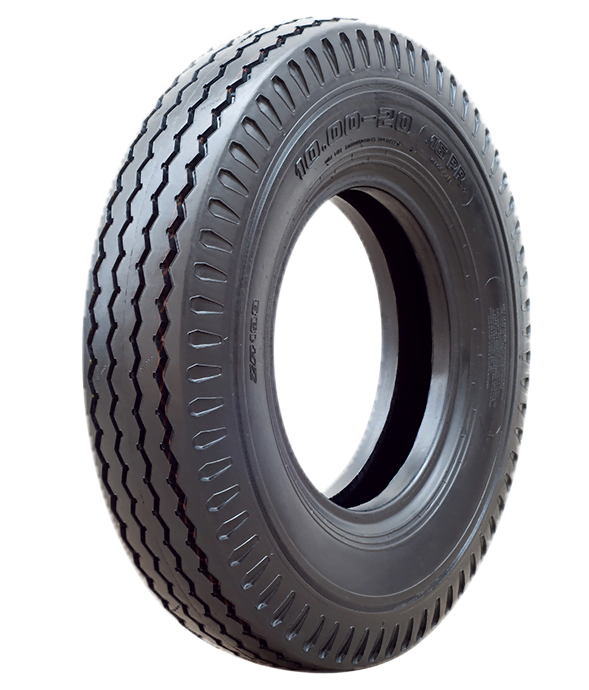

H-RIB

Features

> Developed for trucks and buses. > Features heat resistant tread. > Required to travel continuously at high speeds on highways.

Specifications

SIZE PR PATTERN NO. TYPE TREADDEPTH(mm) STD.RIM MAX LOAD INFLATION PRESSURE S.W.(mm) O.D.(mm)
(kg) (kPa)
S/D S/D
12.00-20 18 H-Rib TT 15.4 8.5 3725/3265 795/725 315 1145
11.00-20 18 H-Rib TT 16 8 3265/2865 795/725 293 1105
10.00-20 16 H-Rib TT 17.4 7.5 3000/2630 795/725 278 1073
9.00-20 16 H-Rib TT 15.4 7 2650/2325 795/725 259 1038
8.25-20 16 H-Rib TT 14 6.5 2430/2180 910/840 236 974
