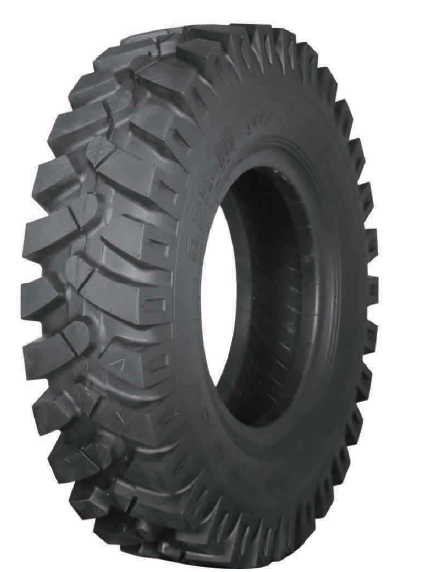

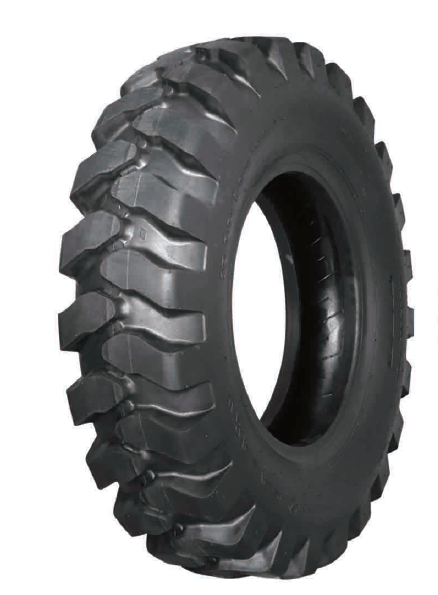

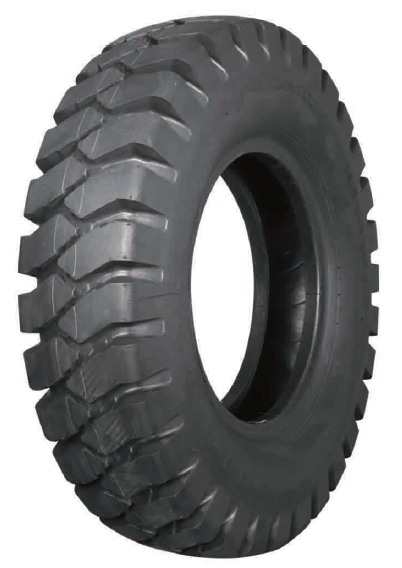

TNR > HT816 HT818 HT810 8.25-20 9.00-20
  • HT816 HT818 HT810 8.25-20 9.00-20
  • HT816 HT818 HT810 8.25-20 9.00-20
  • HT816 HT818 HT810 8.25-20 9.00-20
  • HT816 HT818 HT810 8.25-20 9.00-20

HT816 HT818 HT810 8.25-20 9.00-20

Features

HT816 HT818 HT810
  • Special design of pattern, good self cleaning performance
  • Good wear resistance, strong grip and superior slip resistance

Specifications

HT816 HT818 HT810 Specifications
Size Ply Rating Pattern Code Pattern Depth Overall diameter Section Width Standard Rim STANDER PRESSURE Max Load MAX SPEED Tire Tube
(mm) (mm) (mm) (kpa) (kg) (Km/h) TT
 8.25-20 14 HT816 19 965 236 6.5 725 2240 50 TT
 9.00-20 14 HT816 20 1018 259 7 700 2500 50 TT
 9.00-20 16 HT816 20 1018 259 7 810 2900 50 TT
 10.00-20 16 HT816 21 1055 278 7.5 750 3150 50 TT
 11.00-20 16 HT816 22 1085 293 8 725 3350 50 TT
 9.00-20 14 HT818 19 1018 259 7.2 760 2440 50 TT
 10.00-20 16 HT818 19 1055 278 7.5 750 3150 50 TT
 7.50-16 14 HT810 20 805 215 6.00G 730 1500 50 TT
 8.25-16 16 HT810 20 855 235 6.50H 730 1800 50 TT

Description

fitting to Excavator
