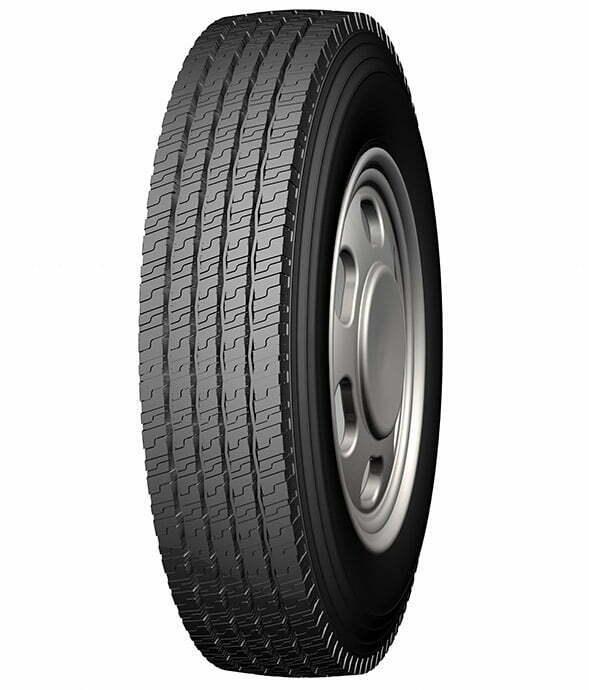

ST939
Major Characteristics
Unique tread belt structure, high wear-resistance;
excellent anti-impact force, optimized and reinforced tire bead design;
suitable for expressway and ordinary road conditions.
Specifications:
Size | PR | Speed Index | Standard rim | Inflation Pressure(kPa) | Max. Load(kg) | Inflated Section Width | Inflated Overall Diameter | Pattern Depth |
(mm) | (mm) | (mm) | ||||||
11R22.5 | 16 | K | 8.00 | 830/830 | 3550/3250 | 293 | 1135 | 14.5 |
11R22.5 | 18 | K | 8.00 | 930/930 | 3750/3450 | 293 | 1135 | 14.5 |
12R22.5 | 18 | M | 9.00 | 850/850 | 3550/3150 | 300 | 1084 | 14.5 |
295/80R22.5 | 18 | M | 9.00 | 850/850 | 3550/3150 | 298 | 1044 | 15.0 |
315/80R22.5 | 18 | M | 9.00 | 825/825 | 3750/3350 | 312 | 1076 | 14.5 |
315/80R22.5 | 20 | M | 9.00 | 850/850 | 4000/3350 | 312 | 1076 | 14.5 |
Description :
