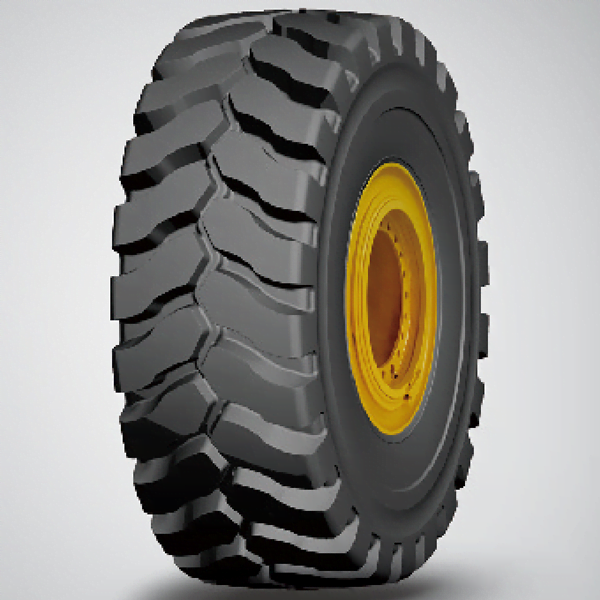

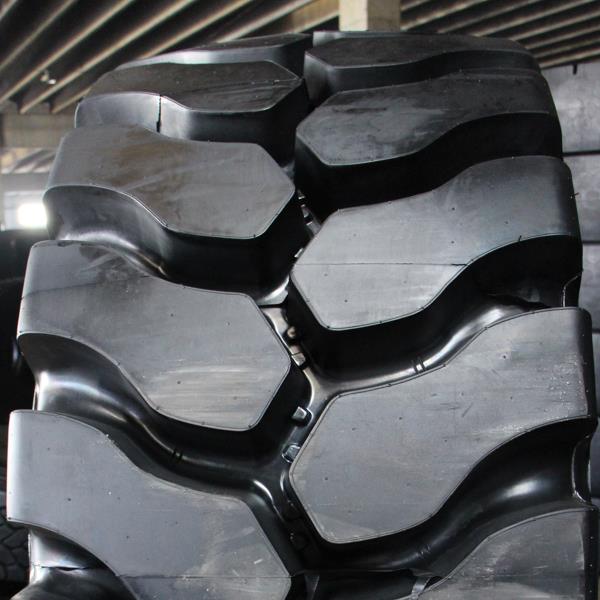

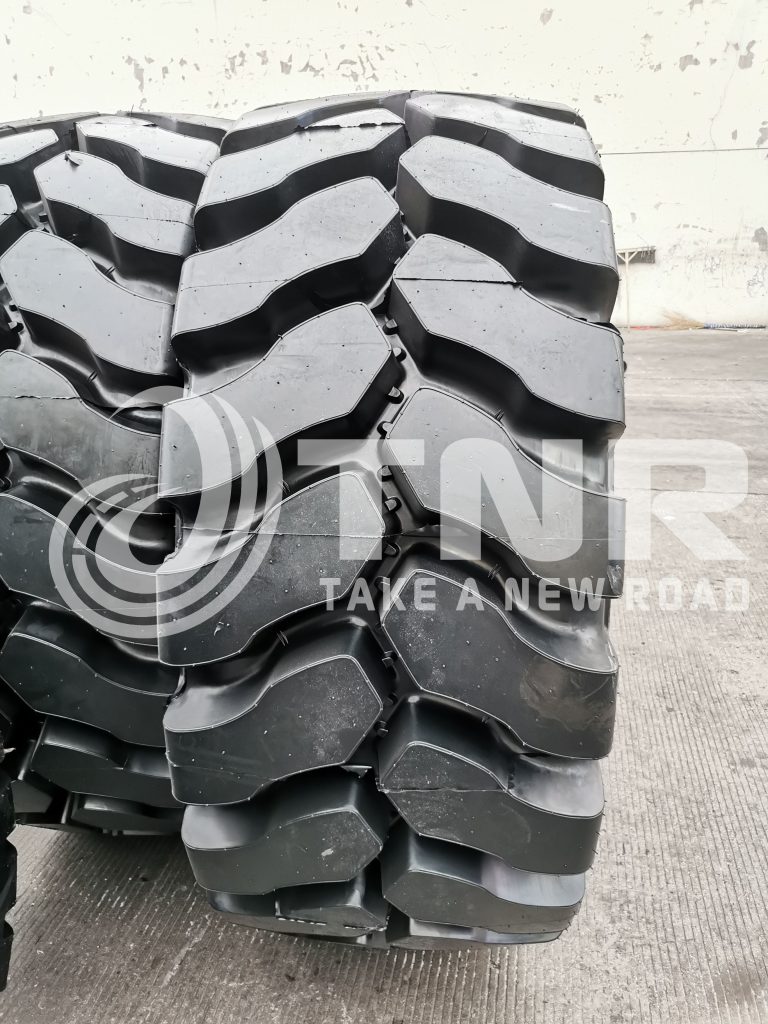

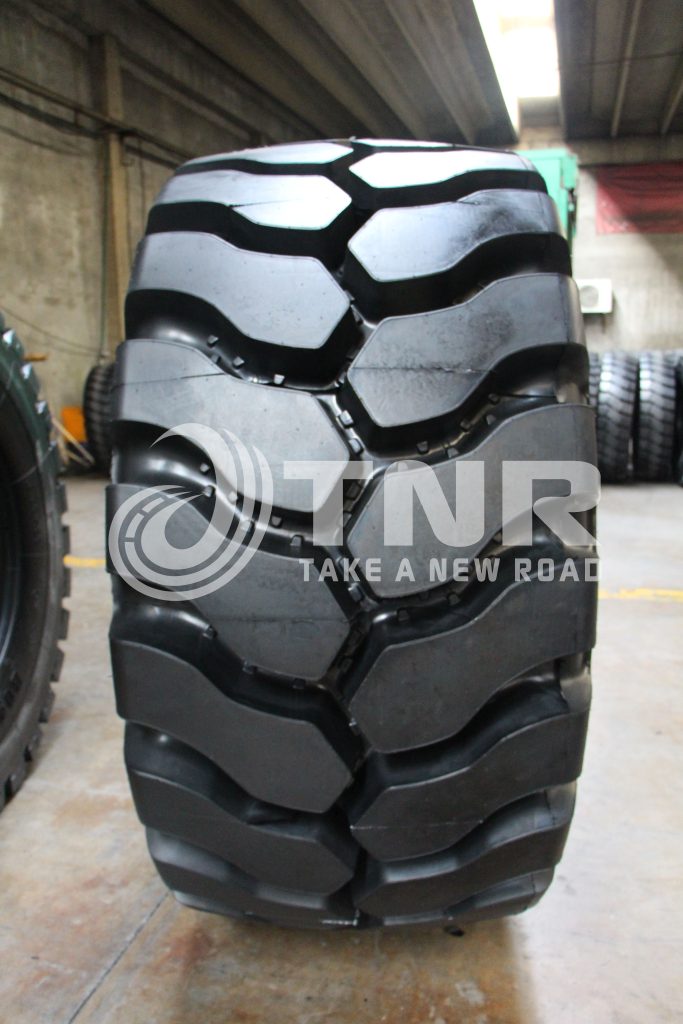

HILO LCHS 23.5R25 26.5R25 L4/E4

Features

•Exceptionally robust in masacre conditions. •Excellent compromise of adhesion and traction. •Very substantial, wide and aggressive tread functions. •Resistant to shock ruptures, cuts and tread tearing. •A particularly resilient casing with the addition of several specific steel belts.

Specifications

LCHS HILO Loder tires

SIZE	STAR RATING	LOAD INDEX	TRA CODE	TREAD DEPTH	TYPE	Standard Rim (Rim Width &Flange)	DIAMETER	SECTION WIDTH	Max Load	STANDER PRESSURE	MAX SPEED
SIZE	STAR RATING	LOAD INDEX	TRA CODE	(mm)	TYPE	Standard Rim (Rim Width &Flange)	(mm)	(mm)	(kg)	(bar)	(Km/h)
23.5R25	★★	201/185	L-4/E-4	47	TL	19.50/2.5	1673	597	14500/9250	6.5/5.25	10/50
26.5R25	★★	209/193	L-4/E-4	57	TL	22.00/3.0	1798	673	18500/11500	6.5/5.25	10/50
29.5R29	★★	218/202	L-4/E-4	60	TL	25.00/3.5	2023	750	23600/15000	6.5/5.25	10/50
35/65R33	★★	224/207	L-4/E-4	62.5	TL	28.00/3.5	2040	889	28000/17500	6.5/5.25	10/50
