E4

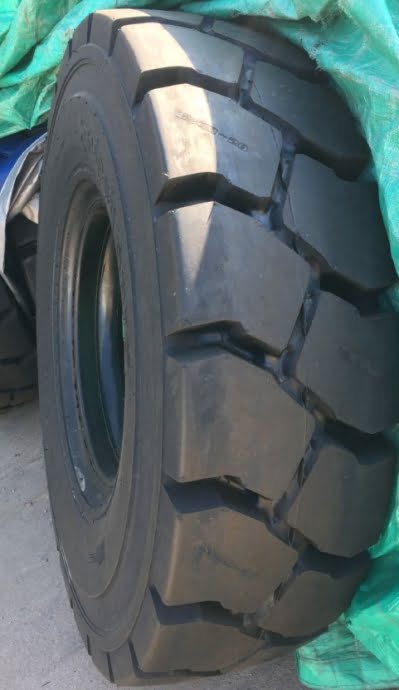

E-4 12.00-20(1)(2)
E4
E-4 12.00-20(1)(2)

E4 PORT 18.00-25 14.00-25

E4 PORT

> Strong carcass provides superior load capacity.

> The wide riding tread,heavy lugs and extra deep tread provides long tire life.

> Compound formulated for heat,cut&abrasion resistance.

> Applications:Handling&Towing Equipment









Get a Quote?

Contact

Specifications:

E4 PORT SPECIFICATION:

SIZE PR PATTERN

NO.

 TYPE T.D.(mm) STD.RIM (PRE.) (kPa) LOAD CAPACITY AT VARIOUS SPEED (kg) S.W.(mm) O.D.(mm)
0km/h Creep 5km/h 10km/h 15km/h 20km/h 25km/h 30km/h
18.00-25 40 E-4 TL 69 13.00/2.5 1150 30600 27200 24650 22950 22100 21590 21250 21080 526 1673
16.00-25 36 E-4 TL 62 11.25/2.0 1150 24500 21800 19700 18400 17700 17300 17000 16350 432 1548
16.00-25 32 E-4 TL 62 11.25/2.0 1000 22100 19650 17800 16600 16000 15600 15350 15195 432 1548
16.00-25 28 E-4 TL 62 11.25/2.0 900 20700 18400 16675 15525 14950 14605 14375 14260 432 1548
14.00-25 28 E-4 TT/TL 57 10.00/1.5 1000 18000 16000 14500 13500 13000 12700 12500 12400 386 1417
14.00-24 32 E-4 TL 57 10.00 1100 19605 17430 15845 14700 14160 13820 13600 13460 386 1417
14.00-24 28 E-4 TT/TL 57 10.00 1000 18000 16000 14500 13500 13000 12700 12500 12400 386 1417
12.00-24 24 E-4 TL 54 8.5 1000 13600 12150 11000 10250 9850 9650 9500 9400 333 1300
12.00-20 24 E-4 TL 45 8.5 1000 14260 12700 11510 9800 9440 9230 8250 8180 340 1173
10.00-20 18 E-4 TL 40 7.5 1000 9630 8560 7780 7255 6990 6830 5520 5480 300 1097

company introduction

Our company is located in Shanghai, China, and has business partners all over the world.We are committed to offering On-Road & Off-Road tires/wheels, which are applied to:

– Construction Machinery (Loaders, ADT, Skid-Steering machines & Graders)

– Transportation (Trucks, Buses & Trailers)

– Agricultural/Irrigation Equipment (Tractors, Combine Harvesters & Trailers)- Forestry Machines (Harvesters, Forwarders & Skidders)

– Material Handling (Reach stackers & Forklifts)

As a professional tire/wheel supplier, we not only know well about products, but also know how to identify the right tires for your equipment.”Quality products and quality service” is our permanent commitment to our customers. Based on the requirements of the International market, we just abstract and collect a summary of popular size tires for your selection. If you cannot find some sizes, patterns or varieties, please do not hesitate to contact us.

LET TNR BRING YOU MORE!

Description :

E4 industrial tire

Features

Tires on harbour machinery usually operate under the conditions with heavy load, high torque and long working hours.
Our tires make use of wear-resistant tread compound designed specially for harbour service conditions. The carcass strength, its rigidity and the strength of bead area have been greatly increased. The carcass is very strong and firm with good features of side-directional stability when heavy loaded, smooth riding, long-lasting and durability. They can meet different demands for container forklifts, straddle carriers and other harbour machinery.
The wording of “INDUSTRIAL/NHS” is marked on the sidewall of this series of the specialized harbour service tires.

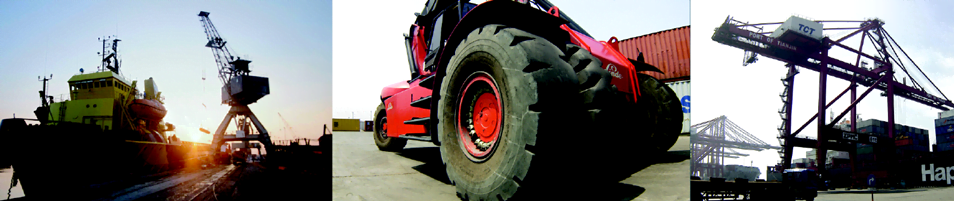

Application

Container Handlers
Straddle Carriers
Reachstackers
Gantry Cranes
port tire industrial
