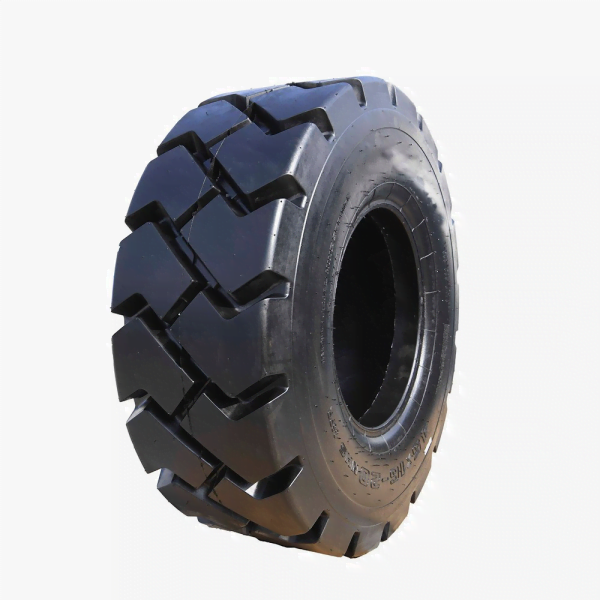

ZM722
> Rim Guard
> Developed for heavy use on forklifts and other industrial vehicles
> With its wide and extra deep tread provides stronger traction, longer life and puncture resistance.
Specifications:
| SIZE | PR | PATTERN NO. | TYPE | TREADDEPTH(mm) | STD.RIM | MAX LOAD | INFLATION PRESSURE | S.W.(mm) | O.D.(mm) |
| (kg) | （kPa） | ||||||||
| 45×16-20 | 36 | ZM722 | TL | 47 | 15.00 | 10025 | 1030 | 419 | 1130 |
| 42×13-20 | 32 | ZM722 | TT | 25 | 9.00 | 9070 | Require Fill | 330 | 1067 |
| 42×13-20 | 24 | ZM722 | TT | 25 | 9.00 | 8480 | 1000 | 330 | 1067 |
| 38×16-15 | 32 | ZM722 | TL | 31 | 11.50 | 7800 | 1000 | 396 | 1000 |
| 15L-10 | 24 | ZM722 | TT | 24 | 13.00 | 3470 | 860 | 366 | 704 |
| 14.50L-15 | 32 | ZM722 | TL | 26 | 11.50 | 6305 | Require Fill | 358 | 902 |
| 14.50L-15 | 28 | ZM722 | TL | 26 | 11.50 | 5580 | 1030 | 358 | 902 |
| 14.50L-15 | 20 | ZM722 | TT | 26 | 11.50 | 5130 | 900 | 358 | 902 |
| 10.00L-15 | 24 | ZM722 | TT | 28 | 7.50 | 4875 | 1030 | 284 | 917 |
| 10.00L-15 | 16 | ZM722 | TT | 28 | 7.50 | 4235 | 790 | 284 | 917 |
| 32×14.5-15 | 24 | ZM722 | TL | 27 | 11.50 | 4945 | 1030 | 355 | 838 |
| 32×12.5-15 | 24 | ZM722 | TT | 27 | 9.75 | 4150 | 1000 | 310 | 826 |
| 28×12.5-15 | 28 | ZM722 | TT | 26 | 9.75 | 3355 | 1030 | 305 | 711 |
| 7.50-10 | 16 | ZM722 | TT | 22 | 5.50F | 1580 | 1030 | 203 | 647 |
