L4
L4

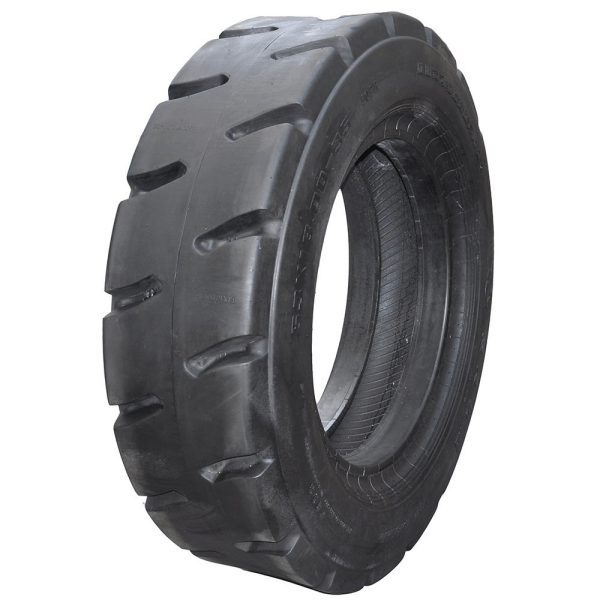

L-4 69×18.00-35

69×18.00-35

> Suitable for operation under extremely harsh rocky conditions such as mines, wells and tunnels etc.
> Super-strong carcass, thickened tread, high-strength, high-hardness special tread formula, make the tires have good resistance to cutting, puncture resistance and wear resistance.
> Special driving surface and pattern design, stable tire running and good passing performance.

Specifications:

SIZE PR PATTERN NO. TYPE TREAD DEPTH(mm) STD.RIM MAX LOAD INFLATION PRESSURE S.W.(mm) O.D.(mm)
(kg) (kPa)
69×18.00-35 50 L-4 TL 52 13.00/2.5 25000 1150 455 1750
63×18.00-35 50 L-4 TL 50 13.00/2.5 25000 1150 455 1600
1425×585-27 52 L-4 TL 50 20.5/2.5 35000 1200 590 1430

Description :

> Suitable for operation under extremely harsh rocky conditions such as mines, wells and tunnels etc.

> Super-strong carcass, thickened tread, high-strength, high-hardness special tread formula, make the tires have good resistance to cutting, puncture resistance and wear resistance.
