R1-2 8.3-24 9.5-24

R1-2 8.3-24 9.5-24

The tire has good wear resistance and unique tread design, which greatly improves the service life

Good durability, Cut – Resistance, Excellent self-cleaning capability

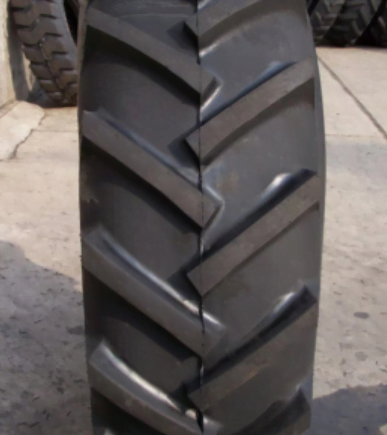

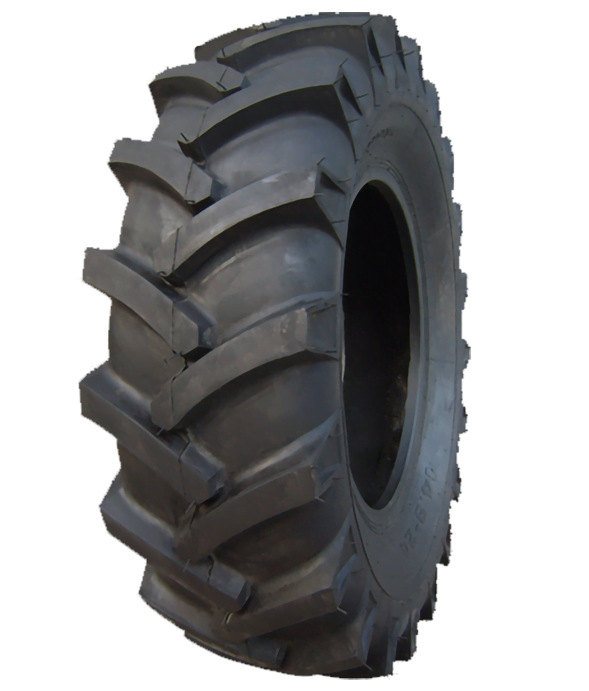

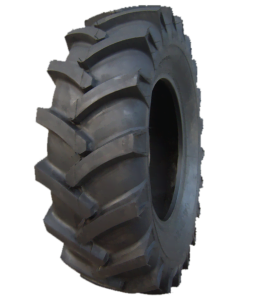

Tractor Tyres

Specifications:

R1-2 Specification:

Tire Size Ply Rating Type Tread Depth Standard Rim Available Rim Inflated Dimensions Load Capacity
TT TL mm inch Overall Width (mm) Overall Width (inch) Overall Diameter (mm) Overall Diameter (inch) Max Load kg Inflation Kpa
8.3-24 4 TT TL 31.5 1.25 W7 —— 211 8.31 993 39.10 560 150
9.5-24 4 TT TL 30.0 1.18 W7 W8、W8H 241 9.49 1048 41.26 670 140
9.5-24 6 TT TL 30.0 1.18 W7 W8、W8H 241 9.49 1048 43.42 850 210
9.5-24 8 TT TL 30.0 1.18 W7 W8、W8H 241 9.49 1048 45.58 1005 280
10/75-15.3 10 TT TL 30.0 1.18 9.00 —— 264 10.39 910 47.74 1525 390
11.2-20 6 TT TL 30.0 1.18 W10 W9、W10H 285 11.22 1005 49.90 920 180
11.2-20 8 TT TL 30.0 1.18 W10 W9、W10H 285 11.22 1005 52.06 1085 240
11.2-24 6 TT TL 33.0 1.30 W10 W9、W10H 285 11.22 1105 54.22 1045 180
11.2-24 8 TT TL 33.0 1.30 W10 W9、W10H 285 11.22 1105 56.38 1225 240
11.2-24 10 TT TL 33.0 1.30 W10 W9、W10H 285 11.22 1105 58.54 1380 300
12.4-24 6 TT TL 34.0 1.34 W11 W10、W10H 315 12.40 1160 60.70 1200 170
12.4-24 8 TT TL 34.0 1.34 W11 W10、W10H 315 12.40 1160 62.86 1415 230
12.4-28 6 TT TL 34.0 1.34 W11 W10、W10H 315 12.40 1260 65.02 1275 170
12.4-28 8 TT TL 34.0 1.34 W11 W10、W10H 315 12.40 1260 67.18 1510 230
12.4-28 10 TT TL 34.0 1.34 W11 W10、W10H 315 12.40 1260 69.34 1700 280
12.4-28 12 TT TL 34.0 1.34 W11 W10、W10H 315 12.40 1260 71.50 1830 320
12.4-32 4 TT TL 36.0 1.42 W11 W10 315 12.40 1360 73.66 1070 110
12.4-32 6 TT TL 36.0 1.42 W11 W10 315 12.40 1360 75.82 1355 170
12.4-32 8 TT TL 36.0 1.42 W11 W10 315 12.40 1360 77.98 1605 230
12.4-32 10 TT TL 36.0 1.42 W11 W10 315 12.40 1360 80.14 1800 280
13.6-24 4 TT TL 36.5 1.44 W11 W12 345 13.58 1210 82.30 925 100
13.6-24 6 TT TL 36.5 1.44 W11 W12 345 13.58 1210 84.46 1215 150
13.6-24 8 TT TL 36.5 1.44 W11 W12 345 13.58 1210 86.62 1400 190
13.6-28 4 TT TL 36.5 1.44 W11 W12 345 13.58 1311 88.78 1000 100
13.6-28 6 TT TL 36.5 1.44 W11 W12 345 13.58 1311 90.94 1285 150
13.6-38 4 TT TL 36.5 1.44 W12 DW12A、W11 345 13.58 1565 93.10 1150 100
13.6-38 6 TT TL 36.5 1.44 W12 DW12A、W11 345 13.58 1565 95.26 1500 150
13.6-38 8 TT TL 36.5 1.44 W12 DW12A、W11 345 13.58 1565 97.42 1800 210
14.9-24 4 TT TL 37.0 1.46 W12 W13 378 14.88 1265 99.58 1090 100
14.9-24 6 TT TL 37.0 1.46 W12 W13 378 14.88 1265 101.74 1360 140
14.9-24 8 TT TL 37.0 1.46 W12 W13 378 14.88 1265 103.90 1600 180
14.9-28 6 TT TL 37.0 1.46 W12 W13 378 14.88 1367 106.06 1450 140
14.9-28 8 TT TL 37.0 1.46 W12 W13 378 14.88 1367 108.22 1700 180
15.5-38 6 TT TL 37.0 1.46 W14L DW14A 394 15.51 1569 110.38 1600 140
15.5-38 8 TT TL 37.0 1.46 W14L DW14A 394 15.51 1569 112.54 1850 180
16.9-24 6 TT TL 39.0 1.54 W15L W15L 429 16.89 1333 114.70 1550 120
16.9-24 8 TT TL 39.0 1.54 W15L W15L 429 16.89 1333 116.86 1850 170
16.9-30 6 TT TL 39.0 1.54 W15L DW15A、DW14A、W14L 429 16.89 1485 119.02 1700 120
18.4-30 6 TT TL 40.0 1.57 DW16A W15L、DW15A 467 18.39 1552 121.18 1900 110
18.4-30 8 TT TL 40.0 1.57 DW16A W15L、DW15A 467 18.39 1552 123.34 2180 140
18.4-30 10 TT TL 40.0 1.57 DW16A W15L、DW15A 467 18.39 1552 125.50 2500 180
18.4-34 6 TT TL 40.0 1.57 DW16A W16L、W15L 467 18.39 1654 127.66 2000 110
18.4-34 8 TT TL 40.0 1.57 DW16A W16L、W15L 467 18.39 1654 129.82 2300 140
18.4-38 6 TT TL 40.0 1.57 W16A W15L、16DD 467 18.39 1755 131.98 2120 110
18.4-38 8 TT TL 40.0 1.57 W16A W15L、16DD 467 18.39 1755 134.14 2430 140
20.8-38 8 TT TL 41.9 1.65 W18A 18DD、DW18A 528 20.79 1834 136.30 2800 120
20.8-38 10 TT TL 41.9 1.65 W18A 18DD、DW18A 528 20.79 1834 138.46 3150 150
23.1-26 10 TT TL 54.0 2.13 DW20A —— 587 23.11 1603 140.62 2900 140
23.1-26 12 TT TL 54.0 2.13 DW20A —— 587 23.11 1603 142.78 3250 170
23.1-26 16 TT TL 54.0 2.13 DW20A —— 587 23.11 1603 144.94 3860 210

Description :

R1-2 8.3-24 9.5-24

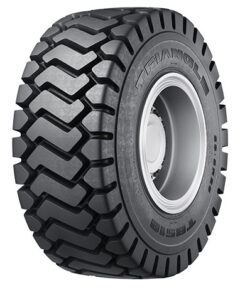

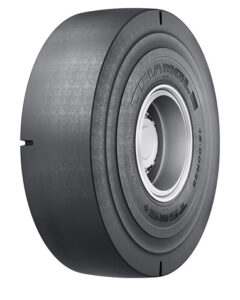

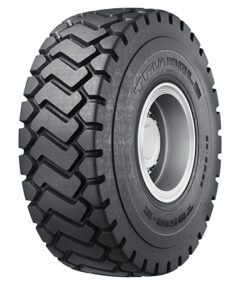

Similar products:
