| Tire Size | Ply Rating | Type | Tread Depth | Standard Rim | Available Rim | Inflated Dimensions | Load Capacity | ||||||
| TT | TL | mm | inch | Overall Width (mm) | Overall Width (inch) | Overall Diameter (mm) | Overall Diameter (inch) | Max Load kg | Inflation Kpa | ||||
| 5.00-15 | 4 | TT | 14 | 0.55 | 3.00D | —— | 130 | 5.12 | 645 | 25.39 | 365 | 280 | |
| 5.00-15 | 6 | TT | 14 | 0.55 | 3.00D | —— | 130 | 5.12 | 645 | 25.39 | 465 | 420 | |
| 6.00-16 | 4 | TT | 14 | 0.55 | 4.00E | 4.50E、5.00F、5K | 160 | 6.3 | 740 | 29.13 | 450 | 230 | |
| 6.00-16 | 6 | TT | 14 | 0.55 | 4.00E | 4.50E、5.00F、5K | 160 | 6.3 | 740 | 29.13 | 560 | 340 | |
| 6.00-16 | 8 | TT | 14 | 0.55 | 4.00E | 4.50E、5.00F、5K | 160 | 6.3 | 740 | 29.13 | 675 | 450 | |
| 6.50-16 | 4 | TT | 14 | 0.55 | 4.50E | 4.50E、5.00F、5K | 175 | 6.89 | 760 | 29.92 | 510 | 230 | |
| 6.50-16 | 6 | TT | 14 | 0.55 | 4.50E | 4.50E、5.00F、5K | 175 | 6.89 | 760 | 29.92 | 615 | 310 | |
| 6.50-16 | 8 | TT | 14 | 0.55 | 4.50E | 4.50E、5.00F、5K | 175 | 6.89 | 760 | 29.92 | 735 | 420 | |

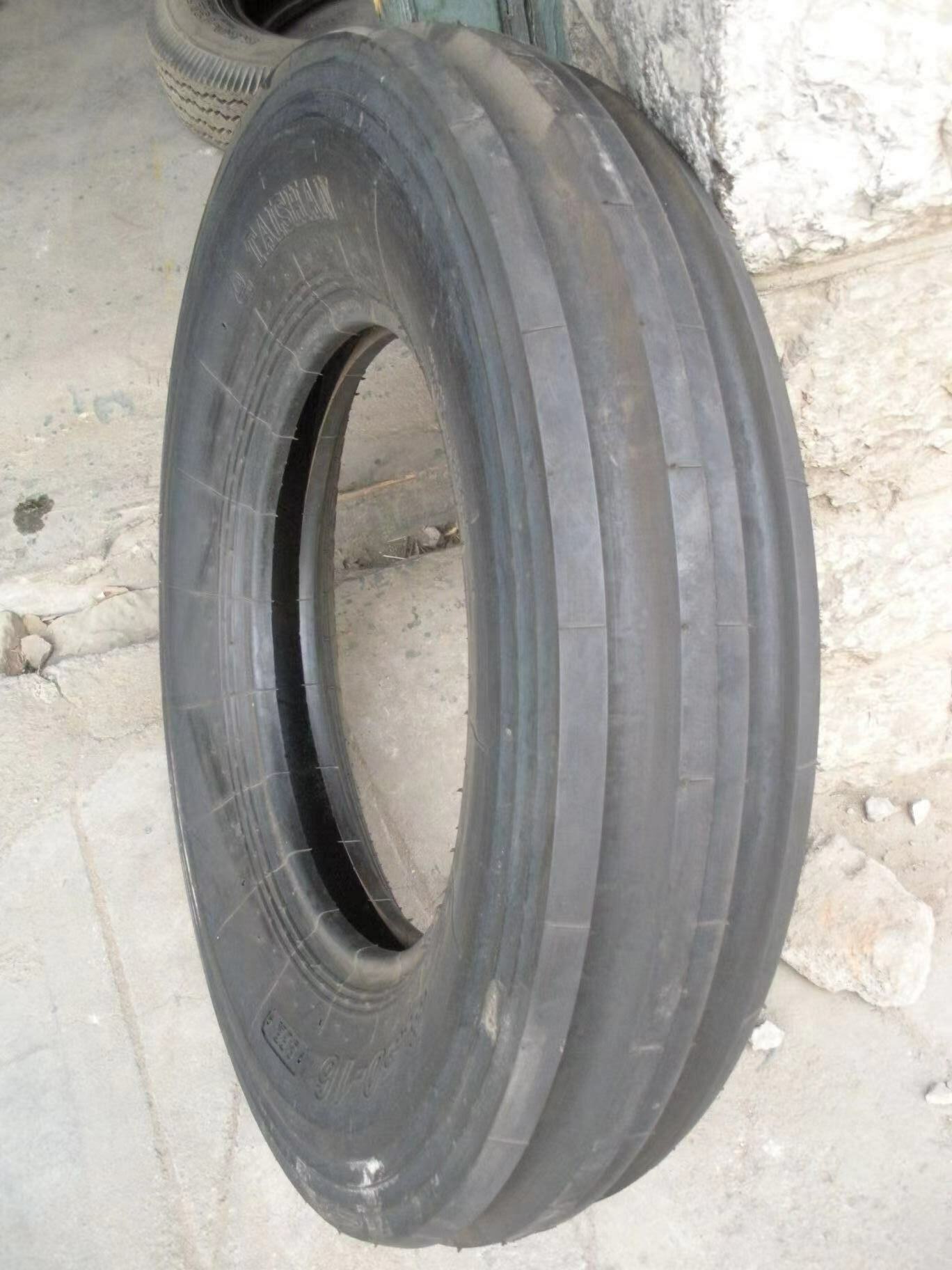

I1 5.00-15
»Tubeless flotation tyre offers good self-cleaning characteristics
»Suitable for agricultural implements
»Offers high load capacity at low inflation pressures thus preventing damages to fields and crops
»It offers enhanced durability due to the strong casing construction and compounds used
