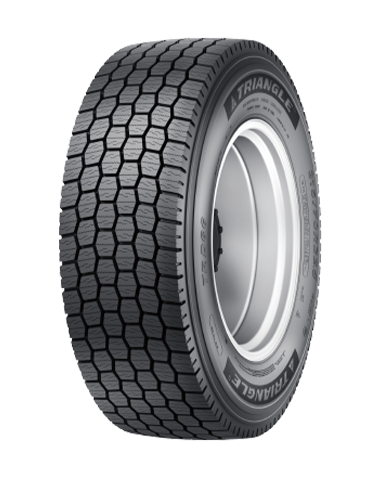

TRIANGLE TRD66 22.5″ TIRE

Features



Excellent grip for regional haul operation  in winter

Specifications

Size LI/SS PR Rim size Rim allowance Inflated Section width mm Overall diameter mm Radius under load mm Load capacity kg/lbs IP OTD mm
Single Dual kpa Psi
  295/80R22.5 150/147L 16 9 8.25 298 1044 487 3350/7390 3075/6780 830 120 20
  295/80R22.5 152/148L 16 9 8.25 298 1044 487 3550/7830 3150/6945 850 125 20
  295/80R22.5 152/149L 18 9 8.25 298 1044 487 3550/7830 3250/7160 900 130 20
  315/80R22.5 154/151L 18 9 9.75 312 1076 500 3750/8270 3450/7610 830 120 20
  315/80R22.5 157/154K 20 9 9.75 312 1076 500 4125/9090 3750/8270 900 130 20
  315/70R22.5 154/150L (152/148M) 18 9 9.75 312 1014 469 3750/8270 3350/7390 900 130 20
