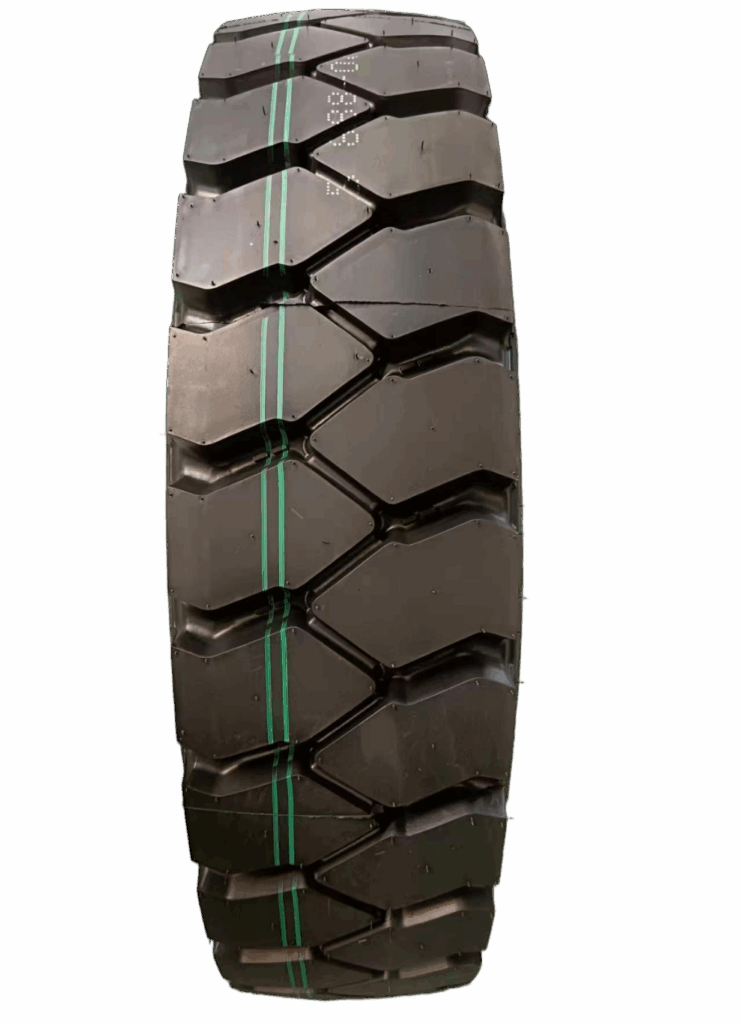

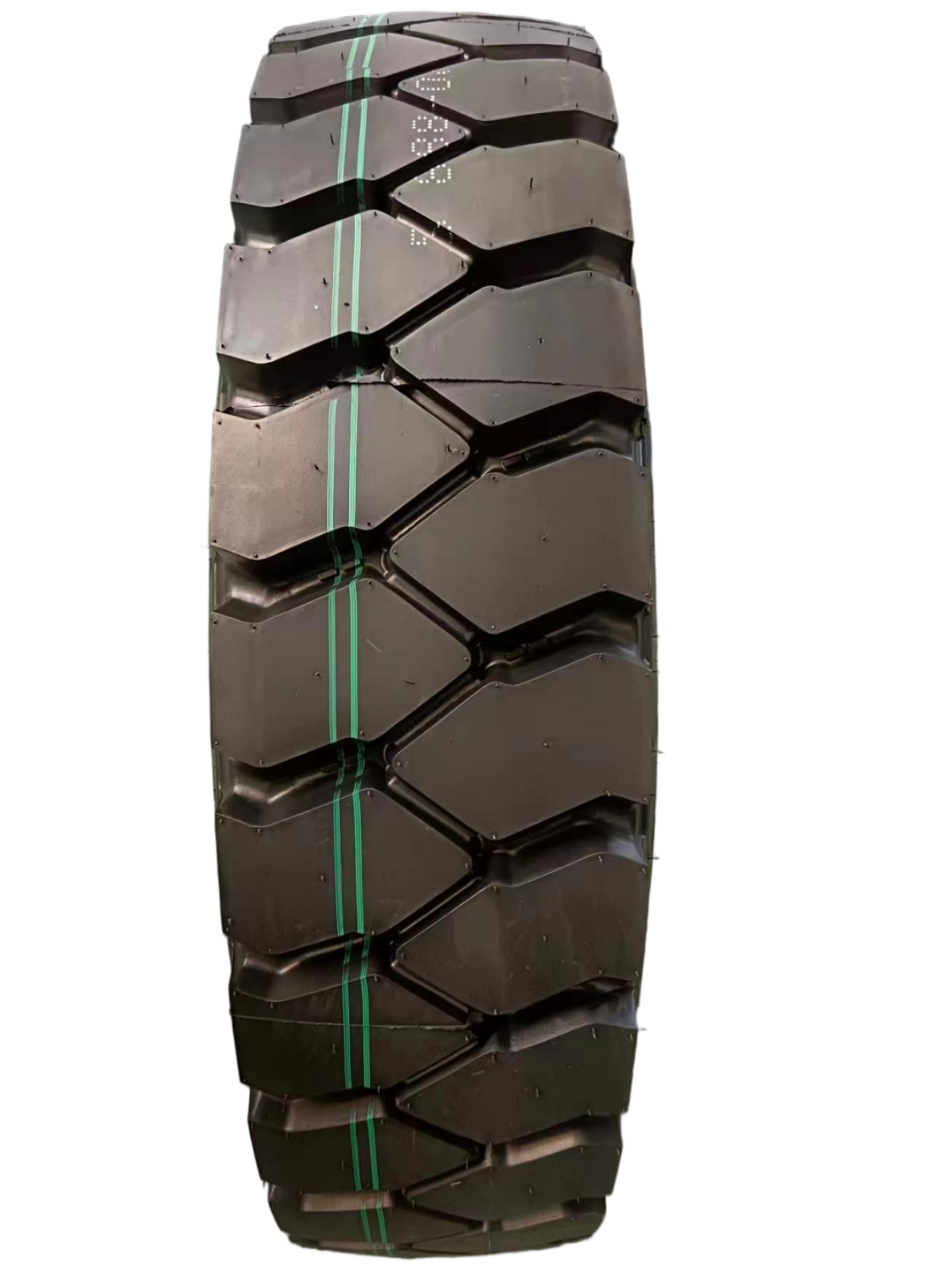

NEXXUS NX888/NX888G 11.00R20 12.00R20

Features

Mainly for drive axle on mining and bad roads with low speed

Excellent traction with big block pattern design.

Recommended for Mixed Service applications.

Special compound supply anti crack and anti puncture performance.

Good performance on carrying capacity

Specifications

SIZE PLY PATTERN L/S STANDARD RIM TREAD DEPTH (MM) SECTION WIDTH (MM) TREAD  WIDTH (MM) OUTER DIAMETER(MM) OVERLOAD CAPACITY
 11.00R20 18PR NX888G 152/149D 8.00 25.0 293 225 1085 180%
 11.00R20 18PR NX888 152/149D 8.00 25.0 293 225 1096 250%
 12.00R20 20PR NX888G 156/153D 8.50 24.0 315 235 1136 180%
 12.00R20 20PR NX888 156/153D 8.50 24.0 315 235 1136 250%
