TNR > TBR > Goodride/ Westlake/ Chaoyang 12R22.5 13R22.5 CB919
  • Goodride/ Westlake/ Chaoyang 12R22.5 13R22.5 CB919

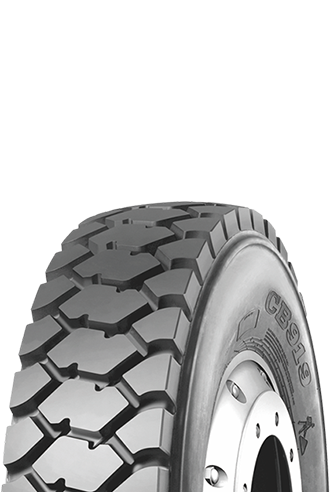

Goodride/ Westlake/ Chaoyang 12R22.5 13R22.5 CB919

Features

  • Aggressive lug design with large block at tread center designed for mining, rock and quarry operations

  • Wide tread and special tread compounds resist chipping, chunking, and tearing

  • Stone rejector platform prevents trapped stones from punching deeper and piecing belt

Specifications

Size LR/PR Service index Tread Depth (mm) Standard Rim Overall Diameter (mm) Section Width (mm) Max. Load Capacity at Cold Inflation Pressure
Single Dual
(kg) (lbs) (kPa) (psi) (kg) (lbs) (kPa) (psi)
 10.00R20 H/16 146/143F 23.5 7.5 1065 278 3000 6610 830 120 2725 6005 830 120
 10.00R20 J/18 149/146F 23.5 7.5 1065 278 3250 7160 930 135 3000 6610 930 135
 11.00R20 J/18 152/149F 25.5 8.0 1096 293 3550 7825 930 135 3250 7165 930 135
 12.00R20 J/18 154/151F 25.5 8.5 1136 315 3750 8270 830 120 3450 7610 830 120
 12.00R20 M/22 158/155C 25.5 8.5 1136 315 4250 9370 970 141 3875 8540 970 141
 12.00R24 L/20 160/157C 32.0 8.5 1238 315 4500 9920 900 131 4125 9090 900 131
 11R22.5 G/14 144/142G 23.0 8.25 1065 279 2800 6175 720 105 2650 5840 720 105
 11R22.5 H/16 148/145J 23.0 8.25 1065 279 3150 6940 850 123 2900 6390 850 123
 12R22.5 J/18 152/149F 23.5 9.00 1096 300 3550 7830 930 135 3250 7160 930 135
 13R22.5 J/18 156/151F 24.0 9.75 1136 320 4000 8820 875 128 3450 7610 875 128
 295/80R22.5 H/16 150/147K 21.0 9.00 1050 298 3350 7390 830 120 3075 6780 830 120
 295/80R22.5 J/18 152/149J 21.0 9.00 1050 298 3550 7830 900 131 3250 7160 900 131

Description

ItemNew TireHS Code401120
Pattern CodeCB919BrandGoodride/ Westlake/ Chaoyang
Cord MaterialSteel WireQuality Warrantee120,000-150,000KM
Tube TypeTubeless/ TubelessDeliveryWithin 30 Days
ConditionNewOriginMade in China
Natural RubberFrom Malaysia, Thailand, Indonesia etcCertificateDOT/ ECE/ GCC
EquipmentImported From Japan and GermanMarketMiddle East, North America
