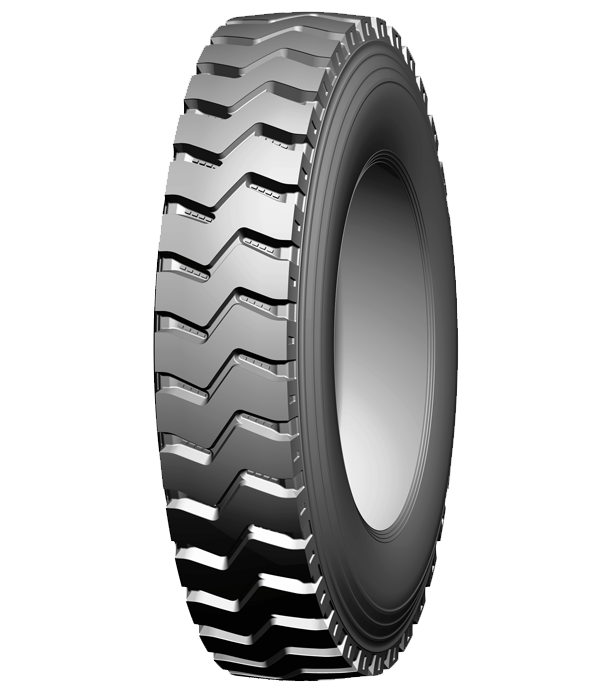

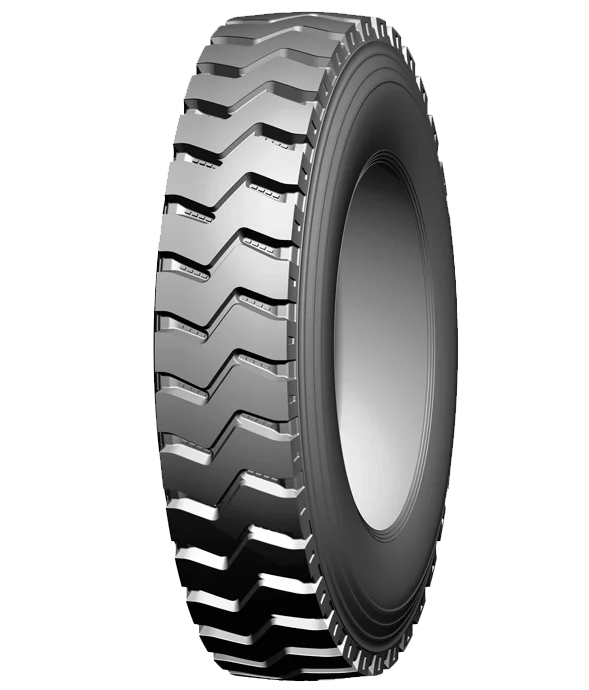

YS852
Major Characteristics
Superior traction and adhesion,
excellent lateral spreads slippery resistance,
high tear resistance,
high abrasion resistance,
well loading capacity.
suitable for rough roads and mine areas
Specifications:
Size | PR | Speed Index | Standard rim | Inflation Pressure(kPa) | Max. Load(kg) | Inflated Section Width | Inflated Overall Diameter | Pattern Depth |
(mm) | (mm) | (mm) | ||||||
7.50R16LT | 14 | L | 6.00G | 770/770 | 1500/1320 | 215 | 805 | 17.0 |
8.25R16LT | 16 | L | 6.50H | 770/770 | 1800/1600 | 235 | 855 | 17.0 |
9.00R20 | 16 | K | 7.0 | 900/900 | 2800/2650 | 259 | 1019 | 22.0 |
10.00R20 | 18 | L | 7.5 | 930/930 | 3250/3000 | 278 | 1054 | 23.0 |
11.00R20 | 18 | L | 8.0 | 930/930 | 3550/3250 | 293 | 1085 | 23.0 |
12.00R20 | 20 | K | 8.5 | 900/900 | 4000/3650 | 315 | 1125 | 23.5 |
Description :
