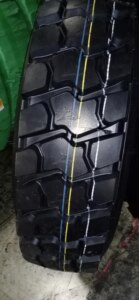

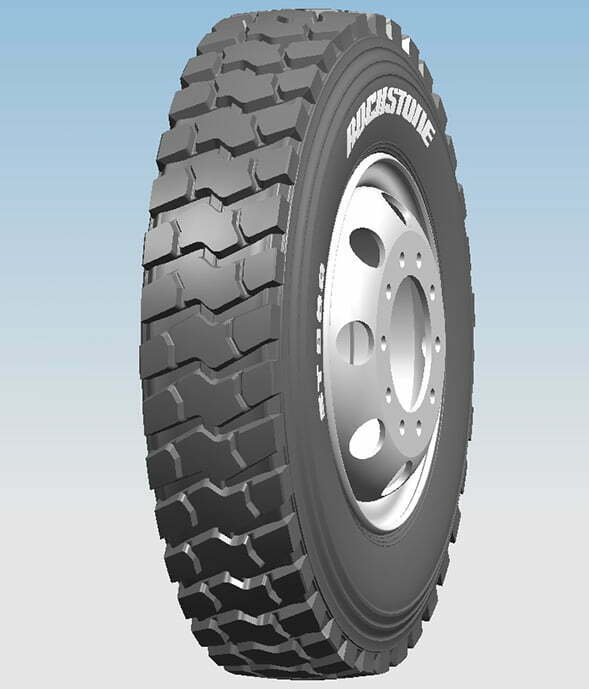

ST869
Major characteristics:
1.Unique tread belt structure, tire tread/wing compound with high wear-resistance and low heat generation;
2.Ultra-powerful gripping ability;
3.Optimized and reinforced tire bead design;
4.Cross-country type to be suitable for low grade highway conditions.
Specifications:
Size | PR | Speed Index | Standard rim | Inflation Pressure(kPa) | Max. Load(kg) | Inflated Section Width | Inflated Overall Diameter | Pattern Depth |
(mm) | (mm) | (mm) | ||||||
10.00R20 | 18 | L | 7.5 | 930/930 | 3250/3000 | 275 | 1052 | 20 |
11.00R20 | 18 | L | 8 | 930/930 | 3550/3250 | 286 | 1082 | 20.5 |
12.00R20 | 18 | L | 8.5 | 830/770 | 3750/3450 | 315 | 1125 | 21 |
12.00R20 | 20 | K | 8.5 | 900/900 | 4000/3650 | 315 | 1125 | 21 |
13R22.5 | 18 | K | 9.8 | 875/875 | 4000/3350 | 320 | 1124 | 21.5 |
Description :
