Recommended for Light Truck applications. Variable angled tread pattern reduces stone retention
Tread pattern delivers lateral traction in all weather conditions. Broad tread and deep groove pattern transversal groove
Shoulder transversal pattern to provide good driving performance and abrasion resistance;
Optimized ratio of patterns block and optimized pattern block angle. improve tires stability and abrasion resistance as well as driving perforrnance;
Recommended for Mixed Service applications
Designed for heavy loads and rough road conditions
Tread pattern delivers traction in all weather conditions

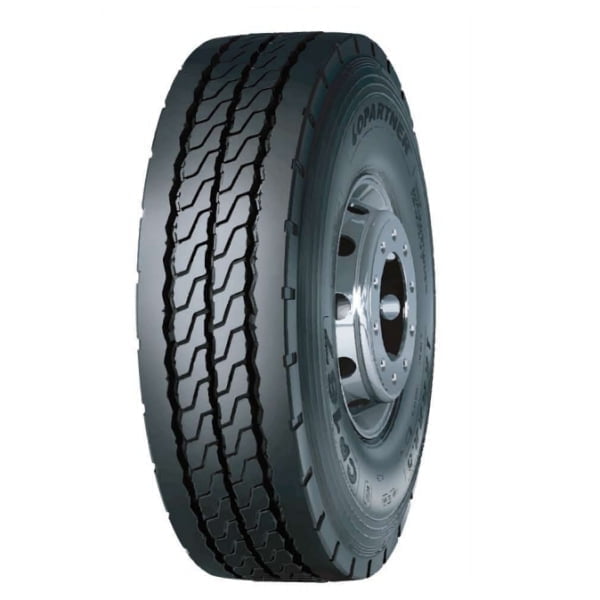

11R22.5 COPARTNER CP167
| Size | PR | Load Index | Speed | PATTERN | Type | STD Rim | Section Width | Outer Diameter | Tread Depth |
| 11R22.5 | 18PR | 149/146 | L | CP167 | TL | 8.25 | 279 | 1054 | 15.5 |
| 12R22.5 | 18PR | 152/149 | L | CP167A G | TL | 9.00 | 300 | 1085 | 16 |
| 13R22.5 | 18PR | 154/151 | K | CP167 | TL | 9.75 | 320 | 1124 | 17.5 |
11R22.5 CP167
fitting to TBR
TBR tyre is the short name of Truck and Bus Radial Tyre, so we can see that TBR tyres are mainly used for Truck and Busvehicles,sometimes we also call TBR tyre as commercial tyre because the TBR tyres are used for commercial vehicles. Meanwhile, the TBR tyre’s structure is all steel wire, so the TBR tyre has better loading performance.
