TNR > TBR > GOODRIDE WESTLAKE CHAOYANG AT557 385/65R22.5 445/65R22.5 Supersingle
  • GOODRIDE WESTLAKE CHAOYANG AT557 385/65R22.5 445/65R22.5 Supersingle

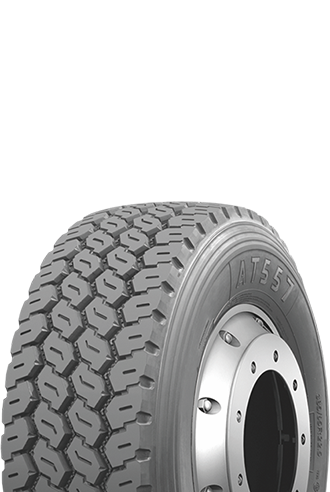

GOODRIDE WESTLAKE CHAOYANG AT557 385/65R22.5 445/65R22.5 Supersingle

Features

  • Aggressive multi-service, all position tread pattern promises excellent traction in ON/OFF road service

  • Outstanding self-cleaning tread design ensures long-life service in ON/OFF road conditions

  • Robust tread blocks and rugged casing allows for heavy loads and resist casing penetration and damage

Specifications

Size LR/PR Service index Tread Depth (32nds) Standard Rim Overall Diameter (inch) Section Width (inch) Max. Load Capacity at Cold Inflation Pressure
Single Dual
kg lbs kpa psi kg lbs kpa psi
255/70R22.5 H/16 140/137L 22 7.50 36.9 10.0 2500 5510 830 120 2300 5070 830 120
275/70R22.5 H/16 148/145L 23 8.25 37.7 10.9 3150 6940 900 130 2900 6395 900 130
385/65R22.5 J/18 158L(160K) 23 11.75 42.2 15.3 4250 9370 850 125 - - - -
385/65R22.5 L/20 160K(158L) 23 11.75 42.2 15.3 4500 9920 900 130 - - - -
425/65R22.5 L/20 165K 23 12.25 44.3 16.9 5150 11340 830 120 - - - -
445/65R22.5 L/20 169K 23 13.00 45.3 17.5 5800 12775 900 130 - - - -
