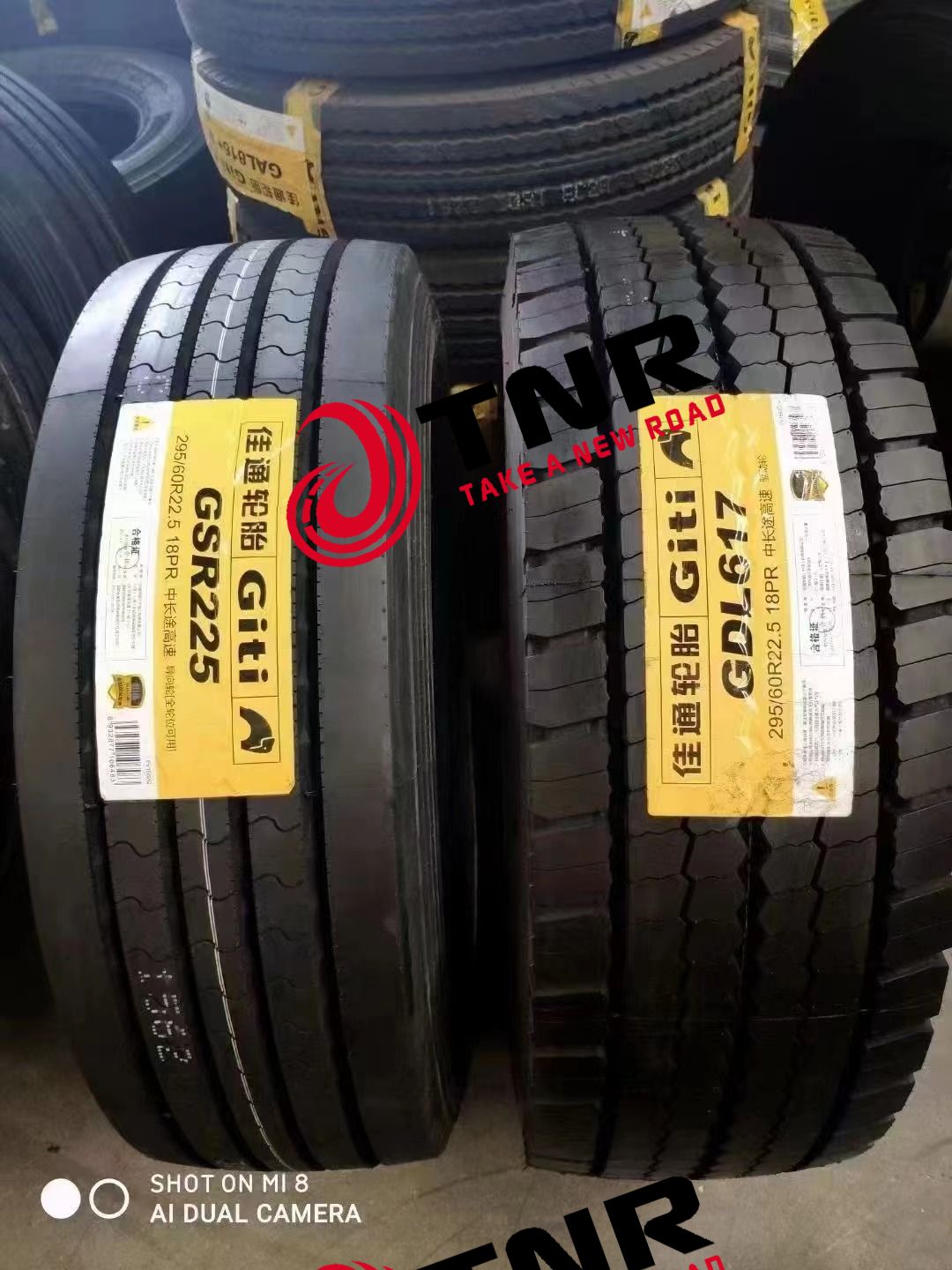

GITI GDL617 295/60R22.5 315/60R22.5
GITI GDL617
- Wide tread pattern design
- Optimal tread depth for long haul applications
- Achieves 3PMSF performance requirement
Our company is located in Shanghai, China, and has business partners all over the world.We are committed to offering On-Road & Off-Road tires/wheels, which are applied to:
– Construction Machinery (Loaders, ADT, Skid-Steering machines & Graders)
– Transportation (Trucks, Buses & Trailers)
– Agricultural/Irrigation Equipment (Tractors, Combine Harvesters & Trailers)- Forestry Machines (Harvesters, Forwarders & Skidders)
– Material Handling (Reach stackers & Forklifts)
As a professional tire/wheel supplier, we not only know well about products, but also know how to identify the right tires for your equipment.”Quality products and quality service” is our permanent commitment to our customers. Based on the requirements of the International market, we just abstract and collect a summary of popular size tires for your selection. If you cannot find some sizes, patterns or varieties, please do not hesitate to contact us.
LET TNR BRING YOU MORE!
Specifications:
GITI GDL617
| Size | PR | Load Index | Speed Rating | Standard Rim | Maximum Load (mm) | Maximum Pressure (kPa) | Tread Depth (mm) | Outer Diameter (mm) | Section Width (mm) | TL/TT | ||
| kg | lbs | kPa | psi | |||||||||
| 295/60R22.5 | 18 | 150/147 (149/146) | K(L) | 9.00 | 3350/3075 | 7390/6780 | 900/900 | 131/131 | 18.2 | 932 | 292 | TL |
| 315/60R22.5 | 18 | 152/148 | L | 9.75 | 3550/3150 | 7830/6940 | 900/900 | 131/131 | 18.2 | 950 | 313 | TL |
| 315/80R22.5 | 18 | 156/150 (154/150) | L(M) | 9.00 | 4000/3350 | 8820/7390 | 850/850 | 123/123 | 18.2 | 1076 | 312 | TL |
