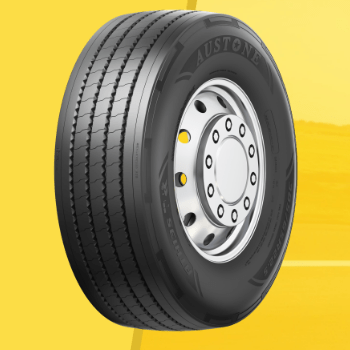

AUSTONE ATH135 385/65R22.5

Compound:
“The highly wear resistant tread compound greatly improve tread durability.
Structurer”
“The best profile design is achieved by combining the theory of tire controllable profile design with the finite element simulation tecnology, with lower heat generation and optimum durability.
Wear performance:”
High wear resistant tread compound combined with lower void ratio provides tire with excellent wear performance.
The optimized width ratio of pattern block assures even wear on shoulder.
Anti-hydroplaning:
Four zigzag groove with sipe design can cut into water film easily on wet road, ensuring excellent water dispersion and anti-hydroplaning.
Stone ejection:
The diamond shape stepped pattern design effectively ejects stones, offers tire with excellent wear resistance,anti-puncture and self-cleaning performance.

Specifications:

385/65R22.5 AUSTONE ATH135 SPECIFICATION

Size PR LI SS Measure Rim Type Max.Load
(KG)
Max Load
(LBS)
Max Inflation Pressure
(kPa)
Max Inflation Pressure
(PSL)
Dimension
(mm)
Tread Depth
(mm)
Tread Depth
32nds
Single Dual Single Dual Single Dual Single Dual Section width O.D
385/65R22.5 20PR 160 K 11.75 TL 4500 9920 900 130 389 1072 15.5 20
385/65R22.5 24PR 164 K 11.75 TL 5000 11000 980 140 389 1072 15.5 20
425/65R2.5 20PR 165 K 12.25 TL 5150 11400 830 120 422 1124 15.5 20
445/45R19.5 22PR 160 J 15 TL 4500 9920 900 130 445 895 13 17
215/75R17.5 18PR 135/133 J 6 TL 2180 2060 4805 4540 860 860 125 125 211 797 13 17

RELATED PRODUCT ATH135

Description :

385/65R22.5 ATH135

Item New Tire HS Code 401120
Pattern Code ATH135 Brand AUSTONE
Cord Material Steel Wire Quality Warrantee 120,000-150,000KM
Tube Type Tubeless/ Tubeless Delivery Within 30 Days
Condition New Origin Made in China
Natural Rubber From Malaysia, Thailand, Indonesia etc Certificate DOT/ ECE/ GCC
Equipment Imported From Japan and German Market Middle East, North America

fitting to TBR
