AUSTONE
AUSTONE

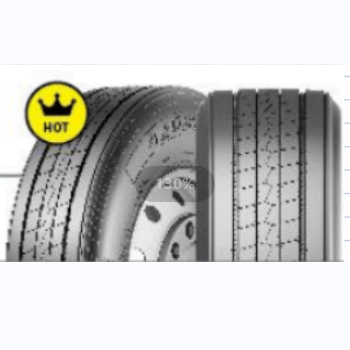

AUSTONE ATH107 11R22.5

Four groove design for stability and better water evacuation.
Optimized footprint for low rolling resistance and reduced uneven wear.
Unique shoulder design to promote even wear and longer mileage.
Stylish sipes for enhanced traction.

Specifications:

11R22.5 AUSTONE ATH107 SPECIFICATION

Size PR LI SS Measure Rim Type Max.Load
(KG)
Max Load
(LBS)
Max Inflation Pressure
(kPa)
Max Inflation Pressure
(PSL)
Dimension
(mm)
Tread Depth
(mm)
Tread Depth
32nds
Single Dual Single Dual Single Dual Single Dual Section width O.D
11R22.5 14PR 144/142 L 8.25 TL 2800 2650 6175 5840 720 720 105 105 279 1054 9.5 12
11R24.5 14PR 146/143 L 8.25 TL 3000 2725 6610 6005 720 720 105 105 279 1104 9.5 12
295/75R22.5 14PR 144/141 L 9 TL 2800 2575 6175 5675 760 760 110 110 298 1014 9.5 12

RELATED PRODUCT ATH107

Description :

11R22.5  ATH107

Item New Tire HS Code 401120
Pattern Code ATH107 Brand AUSTONE
Cord Material Steel Wire Quality Warrantee 120,000-150,000KM
Tube Type Tubeless/ Tubeless Delivery Within 30 Days
Condition New Origin Made in China
Natural Rubber From Malaysia, Thailand, Indonesia etc Certificate DOT/ ECE/ GCC
Equipment Imported From Japan and German Market Middle East, North America

fitting to TBR

Our company is located in Shanghai, China, and has business partners all over the world.We are committed to offering On-Road & Off-Road tires/wheels, which are applied to:
– Construction Machinery (Loaders, ADT, Skid-Steering machines & Graders)
– Transportation (Trucks, Buses & Trailers)
– Agricultural/Irrigation Equipment (Tractors, Combine Harvesters & Trailers)- Forestry Machines (Harvesters, Forwarders & Skidders)
– Material Handling (Reach stackers & Forklifts)
As a professional tire/wheel supplier, we not only know well about products, but also know how to identify the right tires for your equipment.”Quality products and quality service” is our permanent commitment to our customers. Based on the requirements of the International market, we just abstract and collect a summary of popular size tires for your selection. If you cannot find some sizes, patterns or varieties, please do not hesitate to contact us. LET TNR BRING YOU MORE!
