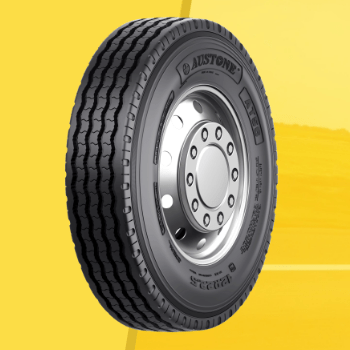

AUSTONE AT56 10R22.5

Four zigzag main grooves provide tire excellent linear driving performance.
The design of vertical pattern blocks with horizontal sipes provides excellent anti-hydroplaning.
Special shoulder side design promotes heat dispersion.

Specifications:

10R22.5 AUSTONE AT56 SPECIFICATION

Size PR LI SS Measure Rim Type Max.Load
(KG)
Max Load
(LBS)
Max Inflation Pressure
(kPa)
Max Inflation Pressure
(PSL)
Dimension
(mm)
Tread Depth
(mm)
Tread Depth
32nds
Single Dual Single Dual Single Dual Single Dual Section width O.D
10R22.5 16PR 144/142 L 7.5 TL 2800 2650 6170 5840 900 900 130 130 254 1019 14 18
13R22.5 18PR 152/148 M 9.75 TL 3550 3150 7820 6940 850 850 125 125 320 1124 15.5 20

RELATED PRODUCT AT56

Description :

10R22.5  AT56

Item New Tire HS Code 401120
Pattern Code AT56 Brand AUSTONE
Cord Material Steel Wire Quality Warrantee 120,000-150,000KM
Tube Type Tubeless/ Tubeless Delivery Within 30 Days
Condition New Origin Made in China
Natural Rubber From Malaysia, Thailand, Indonesia etc Certificate DOT/ ECE/ GCC
Equipment Imported From Japan and German Market Middle East, North America

fitting to TBR

TBR tyre is the short name of Truck and Bus Radial Tyre, so we cansee that TBR tyres are mainly used for Truck and Busvehicles,sometimes we also call TBR tyre as commercial tyre because the TBR tyres are used for commercial vehicles.Meanwhile, the TBR tyre’s structure is all steel wire, so the TBR tyre has better loading performance. So it can be seen that TBR tyres are mainly used for truck and bus vehicles. Sometimes, TBR tyres are called commercial tyres, as these tyres are often used on commercial vehicles. In addition, the TBR tyre’s structure is all steel wire, which means that they have better loading performance.
