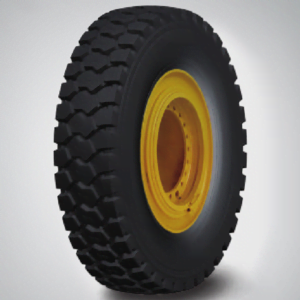

AUSTONE AT501 8R22.5

Features

Broader tread with high wear-resistant and high scrub compound provides chip and chunking resistanceand offers longer mileage. High tensile belt wire and optimized crown structure improve puncture resistance, tread burst resistance anduneven wear resistance. Newly designed thicker butyl inner liner offers excellent air-tightness,avoids steel wire displacement, andimproves safety. Optimized bead material distribution and strengthened bead load capacity prevent bead burst andtire-rim-decoupling- The arc-shaped and streamline pattern groove design provides excellent grip andtraction perfonmance. The optimized profile and even stress distribution effectively improve uneven wear resistance and service life.

Specifications

8R22.5 AUSTONE AT501 SPECIFICATION
Size PR LI SS Measure Rim Type Max.Load (KG) Max Load (LBS) Max Inflation Pressure (kPa) Max Inflation Pressure (PSL) Dimension (mm) Tread Depth (mm) Tread Depth 32nds
Single Dual Single Dual Single Dual Single Dual Section width O.D
8R22.5 14PR 130/128 L 6 TL 1900 1800 4190 3970 830 830 120 120 203 935 14.5 18.3
9R22.5 14PR 136/134 L 6.75 TL 2240 2120 4935 4670 830 830 120 120 229 974 14.5 18.3
10R22.5 16PR 144/142 L 7.5 TL 2800 2650 6170 5840 900 900 130 130 254 1019 14 18
11R22.5 16PR 148/145 M 8.25 TL 3150 2900 6940 6390 850 850 125 125 279 1054 14.5 18.3
RELATED PRODUCT  AT501

Description

8R22.5  AT501

Item New Tire HS Code 401120
Pattern Code AT501 Brand AUSTONE
Cord Material Steel Wire Quality Warrantee 120,000-150,000KM
Tube Type Tubeless/ Tubeless Delivery Within 30 Days
Condition New Origin Made in China
Natural Rubber From Malaysia, Thailand, Indonesia etc Certificate DOT/ ECE/ GCC
Equipment Imported From Japan and German Market Middle East, North America

fitting to TBR
