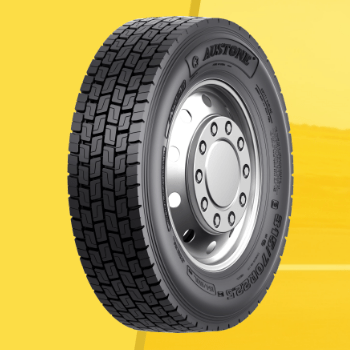

AUSTONE AT127 11R22.5

Features

TBR tyre is the short name of Truck and Bus Radial Tyre, so we cansee that TBR tyres are mainly used for Truck and Busvehicles,sometimes we also call TBR tyre as commercial tyre because the TBR tyres are used for commercial vehicles.Meanwhile, the TBR tyre's structure is all steel wire, so the TBR tyre has better loading performance. So it can be seen that TBR tyres are mainly used for truck and bus vehicles. Sometimes, TBR tyres are called commercial tyres, as these tyres are often used on commercial vehicles. In addition, the TBR tyre’s structure is all steel wire, which means that they have better loading performance.
1The optimized footprint shape ensures even stress distribution on pattern blocks andprevents irregular wear. 2Wide tread with new compound, and deep pattern to achieve longer mileage life. 3"Application of crisscross grooves provides excellent traction and anti-hydroplaning. 4 Open shoulder design improves heat dispersion.

Specifications

11R22.5 AUSTONE AT127 SPECIFICATION
Size PR LI SS Measure Rim Type Max.Load (KG) Max Load (LBS) Max Inflation Pressure (kPa) Max Inflation Pressure (PSL) Dimension (mm) Tread Depth (mm) Tread Depth 32nds
Single Dual Single Dual Single Dual Single Dual Section width O.D
11R22.5 16PR 148/145 M 8.25 TL 3150 2900 6940 6390 850 850 125 125 279 1054 18 23
12.00R22.5 18PR 152/149 M 9 TL 3550 3250 7830 7160 930 930 135 135 300 1085 19.5 25
295/60R22.5 18PR 149/145 K 9 TL 3250 3000 7160 6610 900 900 130 130 292 926 18.5 24
295/80R22.5 18PR 152/149 M 9 TL 3550 3250 7830 7160 900 900 130 130 298 1044 17.5 23
315/70R22.5 18PR 154/150 L 9 TL 3750 3350 8270 7390 300 900 130 130 312 1014 20 26
315/70R22.5 20PR 154/151 L 9 TL 3750 3450 8270 7610 930 930 135 135 312 1014 20 26
315/80R22.5 18PR 154/151 M 9 TL 3750 3450 8270 7610 830 830 120 120 312 1076 19.5 25
315/80R22.5 20PR 157/154 M 9 TL 4125 3750 9090 8270 900 900 130 130 312 1076 19.5 25
RELATED PRODUCT AT127

Description

11R22.5 AT127

Item New Tire HS Code 401120
Pattern Code AT127 Brand AUSTONE
Cord Material Steel Wire Quality Warrantee 120,000-150,000KM
Tube Type Tubeless/ Tubeless Delivery Within 30 Days
Condition New Origin Made in China
Natural Rubber From Malaysia, Thailand, Indonesia etc Certificate DOT/ ECE/ GCC
Equipment Imported From Japan and German Market Middle East, North America

fitting to TBR
