TBR tyre is the short name of Truck and Bus Radial Tyre, so we cansee that TBR tyres are mainly used for Truck and Busvehicles,sometimes we also call TBR tyre as commercial tyre because the TBR tyres are used for commercial vehicles.Meanwhile, the TBR tyre’s structure is all steel wire, so the TBR tyre has better loading performance. So it can be seen that TBR tyres are mainly used for truck and bus vehicles. Sometimes, TBR tyres are called commercial tyres, as these tyres are often used on commercial vehicles. In addition, the TBR tyre’s structure is all steel wire, which means that they have better loading performance.
Mied patterm design offers eccellent traction.
Arc-shaped desgn of grooves bottom offers greatanti-cracking performance.
Stone-ejectors at the bottom of grooves improve tire self-cleaning ability and esthetic value.

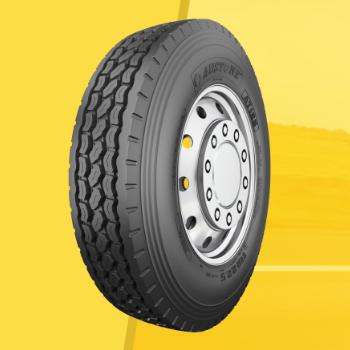

11R22.5 AUSTONE AT125 SPECIFICATION
| Size | PR | LI | SS | Measure Rim | Type | Max.Load (KG) | Max Load (LBS) | Max Inflation Pressure (kPa) | Max Inflation Pressure (PSL) | Dimension (mm) | Tread Depth (mm) | Tread Depth 32nds | |||||
| Single | Dual | Single | Dual | Single | Dual | Single | Dual | Section width | O.D | ||||||||
| 11R22.5 | 16PR | 148/145 | L | 8.25 | TL | 3150 | 2900 | 6940 | 6390 | 850 | 850 | 125 | 125 | 279 | 1054 | 215 | 28 |
| 11R24.5 | 16PR | 149/146 | L | 8.25 | TL | 3250 | 3000 | 7160 | 6610 | 830 | 830 | 120 | 120 | 279 | 1104 | 21.5 | 28 |
RELATED PRODUCT AT125
11R22.5 AT125
| Item | New Tire | HS Code | 401120 |
| Pattern Code | AT125 | Brand | AUSTONE |
| Cord Material | Steel Wire | Quality Warrantee | 120,000-150,000KM |
| Tube Type | Tubeless/ Tubeless | Delivery | Within 30 Days |
| Condition | New | Origin | Made in China |
| Natural Rubber | From Malaysia, Thailand, Indonesia etc | Certificate | DOT/ ECE/ GCC |
| Equipment | Imported From Japan and German | Market | Middle East, North America |
fitting to TBR
