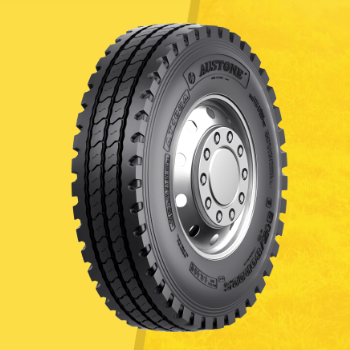

AUSTONE AT103A 13R22.5

Our company is located in Shanghai, China, and has business partners all over the world.We are committed to offering On-Road & Off-Road tires/wheels, which are applied to:
– Construction Machinery (Loaders, ADT, Skid-Steering machines & Graders)
– Transportation (Trucks, Buses & Trailers)
– Agricultural/Irrigation Equipment (Tractors, Combine Harvesters & Trailers)- Forestry Machines (Harvesters, Forwarders & Skidders)
– Material Handling (Reach stackers & Forklifts)
As a professional tire/wheel supplier, we not only know well about products, but also know how to identify the right tires for your equipment.”Quality products and quality service” is our permanent commitment to our customers. Based on the requirements of the International market, we just abstract and collect a summary of popular size tires for your selection. If you cannot find some sizes, patterns or varieties, please do not hesitate to contact us. LET TNR BRING YOU MORE!

High tensile cord.
Lower body ply turn-up height, avoid the flection area to prevent bead cracking
Optimized bead filler shape, rigidity and toughness.
Thicker sidewall rubber and bead chafer.
Stronger bead bundles.
Ladderlike design of shoulder effectively reduces heat and prevents irregular wear.
The pattern blodk sipe design provides dryfwet land performance and reasonable grip.
Specially designed groaves prevented stone-drilling”

Specifications:

13R22.5 AUSTONE AT103A SPECIFICATION

SizePRLISSMeasure RimTypeMax.Load
(KG)
Max Load
(LBS)
Max Inflation Pressure
(kPa)
Max Inflation Pressure
(PSL)
Dimension
(mm)
Tread Depth
(mm)
Tread Depth
32nds
SingleDualSingleDualSingleDualSingleDualSection widthO.D
13R22.518PR154/150L9.75TL3750335082707390850850125125320112417.523
295/80R22.518PR152/149
(148)
M9TL3550325078307160900900130130298104416.521

RELATED PRODUCT AT103A

Description :

13R22.5  AT103A

ItemNew TireHS Code401120
Pattern CodeAT103ABrandAUSTONE
Cord MaterialSteel WireQuality Warrantee120,000-150,000KM
Tube TypeTubeless/ TubelessDeliveryWithin 30 Days
ConditionNewOriginMade in China
Natural RubberFrom Malaysia, Thailand, Indonesia etcCertificateDOT/ ECE/ GCC
EquipmentImported From Japan and GermanMarketMiddle East, North America

fitting to TBR
