Compound:
Newly polybutadiene rubber, refined carbon black ensurebetter wear resistance and lower rolling resistance.
Structure:
New profile design reduces deformation and heat with more uniformed ground contact pressure.
Pattern design:
Rational void ratio and optimized pattern block width gives tire higher mileage andeven wear.
Uneven wear resistance:
Better uneven wear resistance gained by optimum pattern block width.
Stone ejection:
Ledged diamond shaped pattern ejects stone effectively, protects groove bottom fromdamage.
Comfort:
Rational tire radial rigidity zone ensures SW suffidient flexibility and driving comfort.Proper rigidity ratio of tire crown and SW improves wear performance.

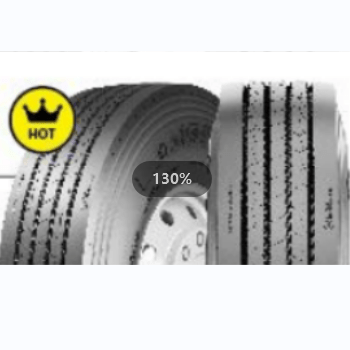

12R22.5 AUSTONE AFH133 SPECIFICATION
| Size | PR | LI | SS | Measure Rim | Type | Max.Load (KG) |
Max Load (LBS) |
Max Inflation Pressure (kPa) |
Max Inflation Pressure (PSL) |
Dimension (mm) |
Tread Depth (mm) |
Tread Depth 32nds |
|||||
| Single | Dual | Single | Dual | Single | Dual | Single | Dual | Section width | O.D | ||||||||
| 12R22.5 | 18PR | 152/149 | L | 9 | TL | 3550 | 3250 | 7830 | 7160 | 930 | 930 | 135 | 135 | 300 | 1085 | 15.5 | 21 |
12R22.5 AFH133
| Size | PR | LI | SS | Measure Rim | Type | Max.Load (KG) |
Max Load (LBS) |
Max Inflation Pressure (kPa) |
Max Inflation Pressure (PSL) |
Dimension (mm) |
Tread Depth (mm) |
Tread Depth 32nds |
|||||
| Single | Dual | Single | Dual | Single | Dual | Single | Dual | Section width | O.D | ||||||||
| 12R22.5 | 18PR | 152/149 | L | 9 | TL | 3550 | 3250 | 7830 | 7160 | 930 | 930 | 135 | 135 | 300 | 1085 | 15.5 | 21 |
fitting to TBR
