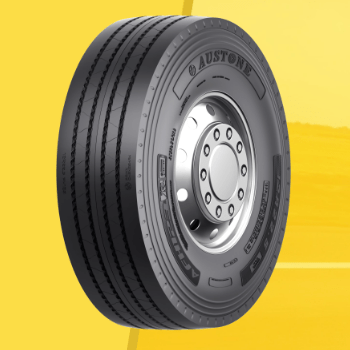

AUSTONE AFH123 12R22.5

Compound:
Newly polybutadiene rubber,Nanoscale carbon black and multi-functicnal agents create an unique highly wear resistant compound, making a durable and low heat generating tire.
Structure:
Load capacity and service life upgraded with new generation high-tensile steel as body ply, cutting-edge formulation tech assistance in design.
Pattern design:
Optimized four rib design and rational void ratio enhance tread rubber rigidity, reduce squirming, and improve wear performance.
Uneven wear resistance:
Better uneven wear resistance gained by optimum pattern block width.
Stone ejection:
Ledged diamond shaped pattern ejects stone effectively, protects groove bottom with better tire anti-puncture and wear resistance perfcrmance.
Lower noise:
Optimized layout of pattern block with varied pitches obviously reduces tire driving noise.
Comfort:
Rational tire radial rigidity zone ensures SW sufficient flexibility and driving comfort. Proper rigidity ratio of tire crown and SW improves wear performance.

Specifications:

12R22.5  AUSTONE AFH123 SPECIFICATION

Size PR LI SS Measure Rim Type Max.Load
(KG)
Max Load
(LBS)
Max Inflation Pressure
(kPa)
Max Inflation Pressure
(PSL)
Dimension
(mm)
Tread Depth
(mm)
Tread Depth
32nds
Single Dual Single Dual Single Dual Single Dual Section width O.D
12R22.5 18PR 152/149 L 9 TL 3550 3250 7830 7160 930 930 135 135 300 1085 17 22
295/80R22.5 18PR 152/149 M 9 TL 3550 3250 7830 7160 900 900 130 130 298 1044 16 21



Description :

12R22.5   AFH123

Size PR LI SS Measure Rim Type Max.Load
(KG)
Max Load
(LBS)
Max Inflation Pressure
(kPa)
Max Inflation Pressure
(PSL)
Dimension
(mm)
Tread Depth
(mm)
Tread Depth
32nds
Single Dual Single Dual Single Dual Single Dual Section width O.D
12R22.5 18PR 152/149 L 9 TL 3550 3250 7830 7160 930 930 135 135 300 1085 17 22
295/80R22.5 18PR 152/149 M 9 TL 3550 3250 7830 7160 900 900 130 130 298 1044 16 21

fitting to TBR
