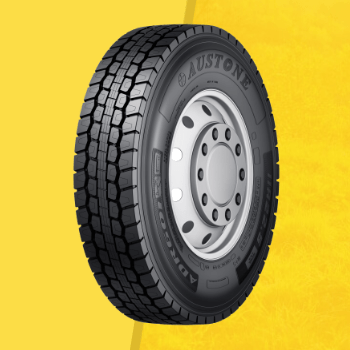

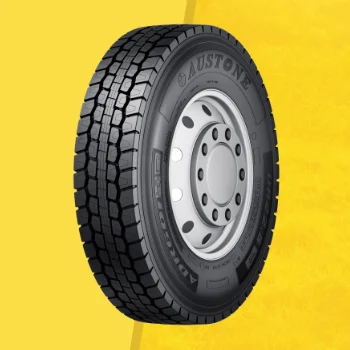

AUSTONE ADR601 11R22.5

Special compounds for optimal wear and mileage.
High void ratio for improved performance and mileage.
Enhanced belt design for optimal footprint for better grip and mileage.
Optimized curing process and special materials for better casing and bead durability.
Open block design linked by tie-bar to prevent irregular wear.
Optimal tread pattern for casing durability.
Unique siping to maintain block rigidity.

Get a Quote?

Contact

Specifications:

11R22.5 AUSTONE ADR601 SPECIFICATION

Size PR LI SS Measure Rim Type Max.Load
(KG)		 Max Load
(LBS)		 Max Inflation Pressure
(kPa)		 Max Inflation Pressure
(PSL)		 Dimension
(mm)		 Tread Depth
(mm)		 Tread Depth
32nds
Single Dual Single Dual Single Dual Single Dual Section width O.D
11R22.5 16PR 143/143 L 8.25 TL 3000 2725 6610 6005 830 830 120 120 279 1054 21 27
11R24.5 16PR 149/146 L 8.25 TL 3250 3000 7160 6610 830 830 120 120 279 1104 21 27
225/70R19.5 14PR 128/126 L 6.75 TL 1800 1700 3970 3750 760 760 110 110 226 811 15 19
245/70R19.5 18PR 144/142 J 7.5 TL 2800 2650 6175 5840 900 900 130 120 248 839 15 19
285/75R24.5 16PR 147/144 L 8.25 TL 3075 2800 6780 6175 830 830 120 120 283 1015 21 27
295/75R22.5 16PR 146/143 L 9 TL 3000 2725 6610 6005 830 830 120 120 298 1014 21 27

RELATED PRODUCT ADR601

Description :

11R22.5  ADR601

Item New Tire HS Code 401120
Pattern Code ADR601 Brand AUSTONE
Cord Material Steel Wire Quality Warrantee 120,000-150,000KM
Tube Type Tubeless/ Tubeless Delivery Within 30 Days
Condition New Origin Made in China
Natural Rubber From Malaysia, Thailand, Indonesia etc Certificate DOT/ ECE/ GCC
Equipment Imported From Japan and German Market Middle East, North America

fitting to TBR
