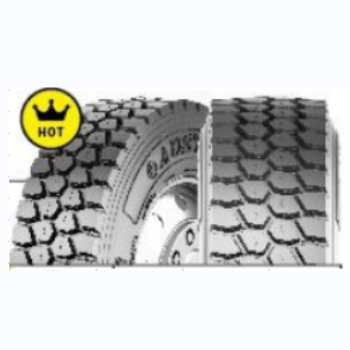

AUSTONE ADM212 11R22.5


Enhanced casing design for better durability and optimal weight distribution. Specialhigh scrub compounds for better service life and cut and chip resistance.Unique design provides for longer tread service life." Deep grooves for aggressive traction. Tread base design for effective stone ejection to prevent stone damage. Low void ratio design for enhanced driving performance in extreme conditions.


Size PR LI SS Measure Rim Type Max.Load (KG) Max Load (LBS) Max Inflation Pressure (kPa) Max Inflation Pressure (PSL) Dimension (mm) Tread Depth (mm) Tread Depth 32nds
Single Dual Single Dual Single Dual Single Dual Section width O.D
11R22.5 16PR 146/143 K 8.25 TL 3000 2725 6610 6005 830 830 120 120 279 1054 23.5 30
11R24.5 16PR 149/146 K 8.25 TL 3250 3000 7160 6610 830 830 120 120 279 1104 23.5 30
RELATED PRODUCT ADM212 TBR tyre is the short name of Truck and Bus Radial Tyre, so we cansee that TBR tyres are mainly used for Truck and Bus vehicles,sometimes we also call TBR tyre as commercial tyre because the TBR tyres are used for commercial vehicles. Meanwhile, the TBR tyre's structure is all steel wire, so the TBR tyre has better loading performance.


11R22.5 ADM212

Item New Tire HS Code 401120
Pattern Code ADM212 Brand AUSTONE
Cord Material Steel Wire Quality Warrantee 120,000-150,000KM
Tube Type Tubeless/ Tubeless Delivery Within 30 Days
Condition New Origin Made in China
Natural Rubber From Malaysia, Thailand, Indonesia etc Certificate DOT/ ECE/ GCC
Equipment Imported From Japan and German Market Middle East, North America

fitting to TBR
