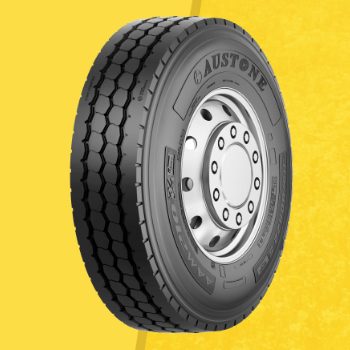

AUSTONE AAM210 11R22.5

Features

Advanced wear resistance compound and lowe void ratio for greater mileage.Unique tread design for improved traction. Enhanced casing structure for better handling and footprint. Unique pattern design for improved tread wear. Optimal footprint with spedal compounds to reduce irregular wear and even weight distribution. Zigzag design improves traction.

Specifications

11R22.5 AUSTONE AAM210 SPECIFICATION
Size PR LI SS Measure Rim Type Max.Load (KG) Max Load (LBS) Max Inflation Pressure (kPa) Max Inflation Pressure (PSL) Dimension (mm) Tread Depth (mm) Tread Depth 32nds
Single Dual Single Dual Single Dual Single Dual Section width O.D
11R22.5 16PR 146/143 K 8.25 TL 3000 2725 6610 6005 830 830 120 120 279 1054 19 24
11R24.5 16PR 149/146 K 8.25 TL 3250 3000 7160 6610 830 830 120 120 279 1104 19 24
12R22.5 18PR 152/149 L 9 TL 3550 3250 7830 7160 930 930 135 135 300 1085 16.5 21
13R22.5 20PR 156/150 K 9.75 TL 4000 3350 8820 7390 875 875 128 128 320 1124 18.5 24
295/80R22.5 18PR 154/150 K 9 TL 3750 3350 8270 7390 850 850 125 125 298 1044 17.5 23
315/80R22.5 20PR 161/157 K 9 TL 4625 4125 10000 9090 900 900 130 130 312 1076 19 24


Description

11R22.5  AAM210

Item New Tire HS Code 401120
Pattern Code AAM210 Brand AUSTONE
Cord Material Steel Wire Quality Warrantee 120,000-150,000KM
Tube Type Tubeless/ Tubeless Delivery Within 30 Days
Condition New Origin Made in China
Natural Rubber From Malaysia, Thailand, Indonesia etc Certificate DOT/ ECE/ GCC
Equipment Imported From Japan and German Market Middle East, North America

fitting to TBR
