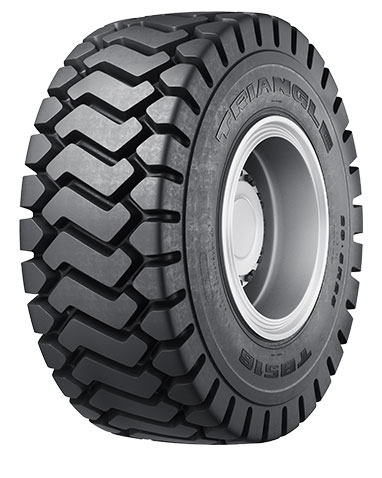

Triangle TB516 ** L3 E3 20.5R25 29.5R25

Features

  • Versatile Radial Tire for Loaders, Dozers and other Equipment

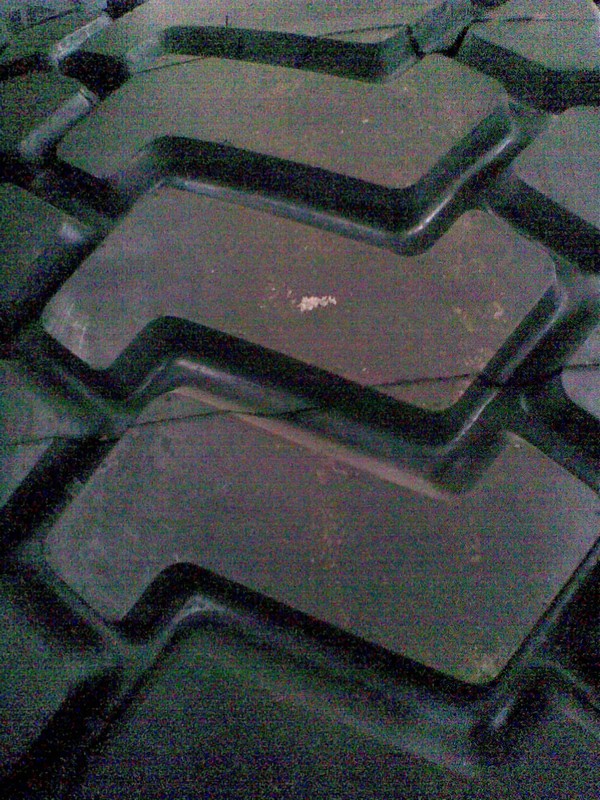

  • Wide aggressive tread design for excellent handling, outstanding traction and lateral adhesion
  • Robust shoulder and enhanced sidewall offer great resistance to damage and aggression
  • Tough casing construction for enhanced impact and cut resistance support
Download

Specifications

TIRE SIZE LOAD SYMBOL TREAD DEPTH [1/32 IN] RIM WIDTH & FLANGE OVERALL WIDTH [IN] OVERALL DIAMETER [IN] TT/TL TMPH [T1] TMPH [T2] TMPH [T3]
 17.5R25 ★/★★ 32.8 14.00/1.5 17.5 53.1 TL 75 96 116

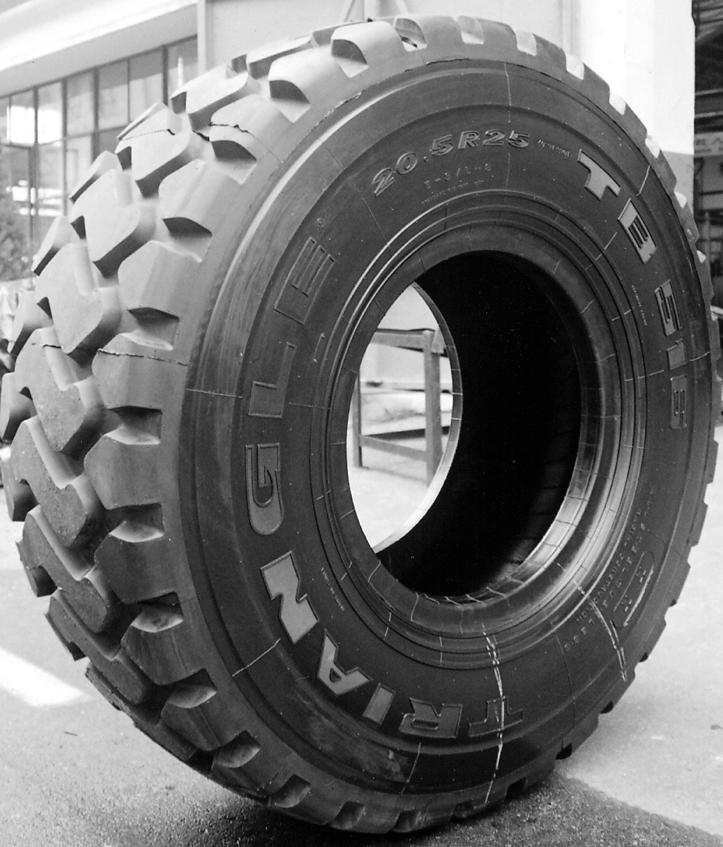

 20.5R25 ★/★★RF 37.8 17.00/2.0 20.5 58.8 TL 82 103 130
 23.5R25 ★/★★RF 40.3 19.50/2.5 23.5 63.7 TL 99 116 158
 26.5R25 ★/★★RF/★★★ 44.1 22.00/3.0 26.5 68.9 TL 106 130 164
 29.5R25 ★/★★RF 47.9 25.00/3.5 29.5 73.8 TL 123 158 199
 29.5R29 ★/★★RF 47.9 25.00/3.5 29.5 77.8 TL 123 158 199
