E-2F/E-2G 16.00-20 1300×530-533

Features

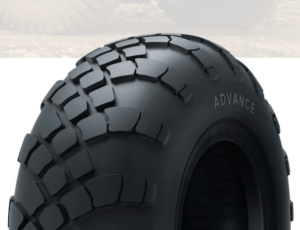

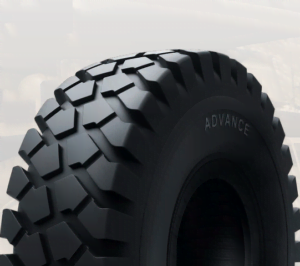

E-2F/E-2G: Applicable for offroad transporters Offroad tread pattern design Unique pattern design provides excellent traction and passing performance on soft road

Specifications

Tire Size Ply rating Speed Symbol Tire Type Pattern Section Width Overall Diameter Max Speed Inflation Pressure Max load Design Rim Width Tire Valve Tread depth
mm ins mm ins km/h mph kPa psi kg lbs mm 32nds
16.00-20 28 E TT E-2F 438 17.2 1343 52.9 70 45 625 91 5500 12125 10 DG09C 24 30.2
1300x530-533 12 B TT E-2G 530 20.9 1300 51.2 50 30 400 58 4050 8930 440X533 DG05C 25.5 32.1
1300x530-533 14 B TT E-2G 530 20.9 1300 51.2 50 30 475 69 4500 9920 440X533 DG05C 25.5 32.1
1300x530-533 20 A3 TT E-2G 530 20.9 1300 51.2 15 10 570 83 5980 13185 440X533 DG05C 25.5 32.1
1300x530-533 (Steel Belt) 20 A3 TT E-2G 530 20.9 1300 51.2 15 10 570 83 5980 13185 440X533 DG05C 25.5 32.1
1500x600-635 14 F TT E-2G 600 23.6 1500 59.1 80 50 380 55 5750 12675 500X635 DG09C 30.5 38.4
1500x600-635 18 F TT E-2G 600 23.6 1500 59.1 80 50 470 68 6500 14330 500X635 DG09C 30.5 38.4
1500x600-635 14 F TL E-2G 600 23.6 1500 59.1 80 50 380 55 5750 12675 500X635 TL 30.5 38.4
1500x600-635 18 F TL E-2G 600 23.6 1500 59.1 80 50 470 68 6500 14330 500X635 TL 30.5 38.4
1500x600-635 22 F TT E-2G 600 23.6 1500 59.1 80 50 550 80 7050 15540 500X635 DG09C 30.5 38.4
1600x600-685 24 F TT E-2G 600 23.6 1600 63 80 50 440 64 7900 17415 500X685 DG09C 30.5 38.4

Description

company introduction

Our company is located in Shanghai, China, and has business partners all over the world.We are committed to offering On-Road & Off-Road tires/wheels, which are applied to:

– Construction Machinery (Loaders, ADT, Skid-Steering machines & Graders)

– Transportation (Trucks, Buses & Trailers)

– Agricultural/Irrigation Equipment (Tractors, Combine Harvesters & Trailers)- Forestry Machines (Harvesters, Forwarders & Skidders)

– Material Handling (Reach stackers & Forklifts)

As a professional tire/wheel supplier, we not only know well about products, but also know how to identify the right tires for your equipment.”Quality products and quality service” is our permanent commitment to our customers. Based on the requirements of the International market, we just abstract and collect a summary of popular size tires for your selection. If you cannot find some sizes, patterns or varieties, please do not hesitate to contact us.
